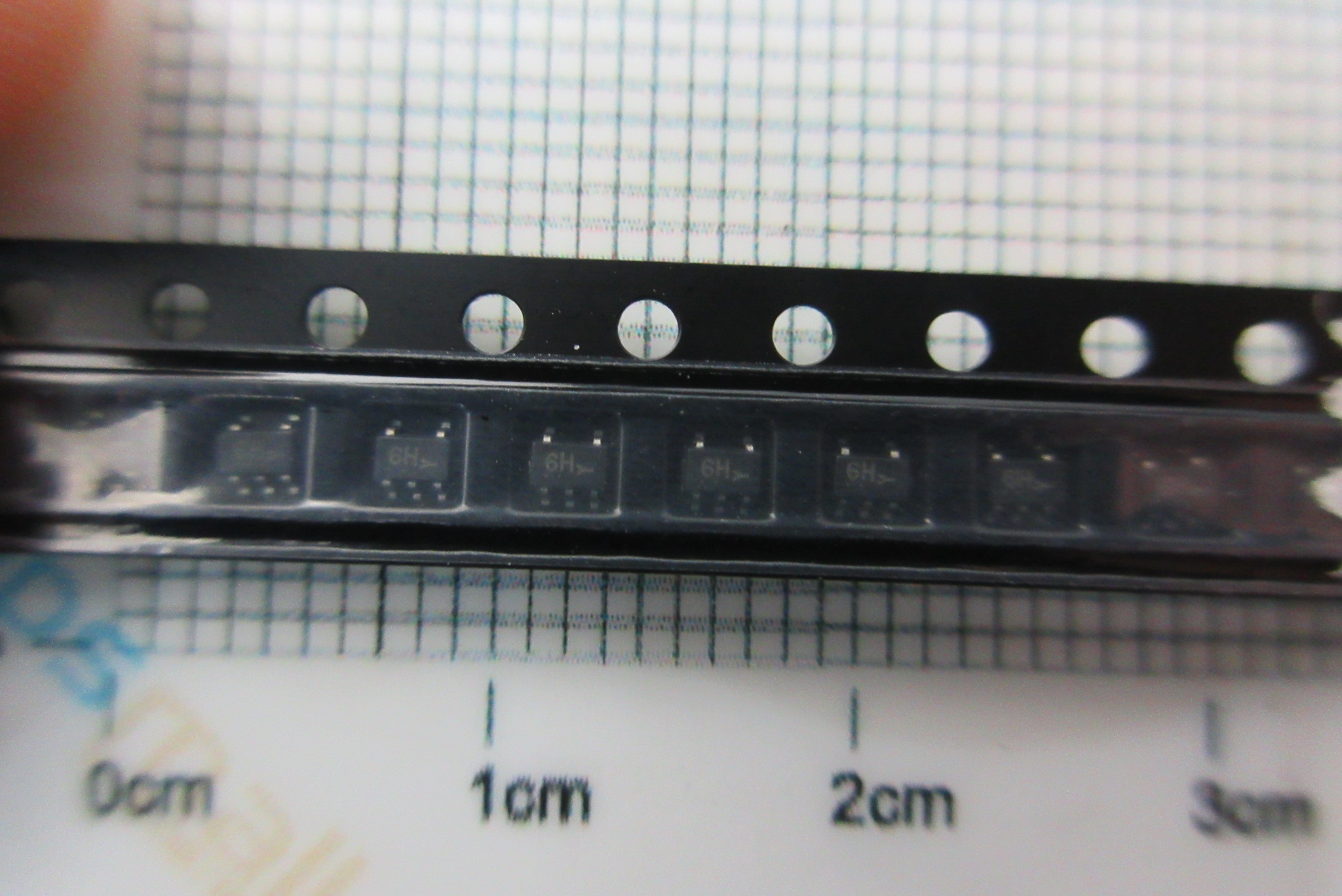

Part No.：NSQA6V8AW5T2G
Category：TVS - Diodes
Manufacturer：ON Semiconductor
Date Code：
Package Type：5-TSSOP, SC-70-5, SOT-353
Quantity：50000
Click：13
Update Time：2022-06-28 15:51:13
Description:
| Manufacturer | ON Semiconductor | Manufacturer's Part # | NSQA6V8AW5T2G |
|---|---|---|---|
| Categories | Circuit Protection | Sub-Categories | TVS - Diodes |
| Series | - | Part Status | Active |
| Type | Zener | Unidirectional Channels | 4 |
| Bidirectional Channels | - | Voltage - Reverse Standoff (Typ) | 5V |
| Voltage - Breakdown (Min) | 6.4V | Voltage - Clamping (Max) @ Ipp | 13V |
| Current - Peak Pulse (10/1000µs) | 1.6A (8/20µs) | Power - Peak Pulse | 20W |
| Power Line Protection | No | Applications | General Purpose |
| Capacitance @ Frequency | 12pF @ 1MHz | Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Package / Case | 5-TSSOP, SC-70-5, SOT-353 |
| Supplier Device Package | SC-88A (SC-70-5/SOT-353) |
