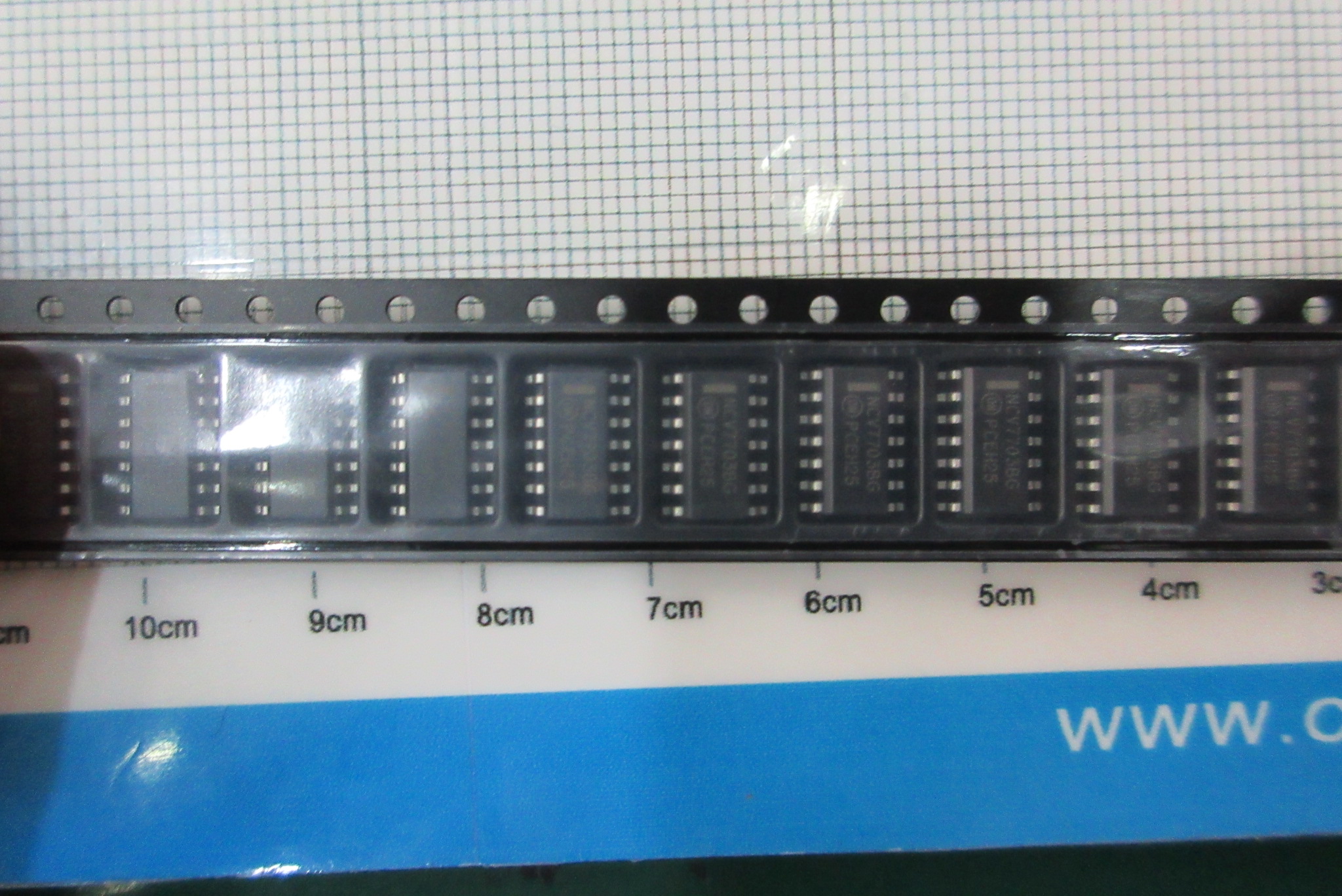

Part No.：NCV7703BD2R2G
Category：Integrated Circuit
Manufacturer：ON Semiconductor
Date Code：
Package Type：14-SOIC
Quantity：100000
Click：7
Update Time：2022-06-29 10:52:07
Description:
| Manufacturer | ON Semiconductor | Manufacturer's Part # | NCV7703BD2R2G |
|---|---|---|---|
| Categories | Integrated Circuits (ICs) | Sub-Categories | PMIC - Full, Half-Bridge Drivers |
| Series | - | Part Status | Discontinued at Digi-Key |
| Output Configuration | Half Bridge (3) | Applications | DC Motors, General Purpose |
| Interface | SPI | Load Type | Inductive |
| Technology | Power MOSFET | Rds On (Typ) | 800 mOhm LS, 800 mOhm HS |
| Current - Output / Channel | 500mA | Current - Peak Output | 1A |
| Voltage - Supply | 3V ~ 5.25V | Voltage - Load | 5.5V ~ 40V |
| Operating Temperature | -40°C ~ 150°C (TJ) | Features | - |
| Fault Protection | Current Limiting, ESD, Over Temperature, Over Voltage, UVLO | Mounting Type | Surface Mount |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) | Supplier Device Package | 14-SOIC |
