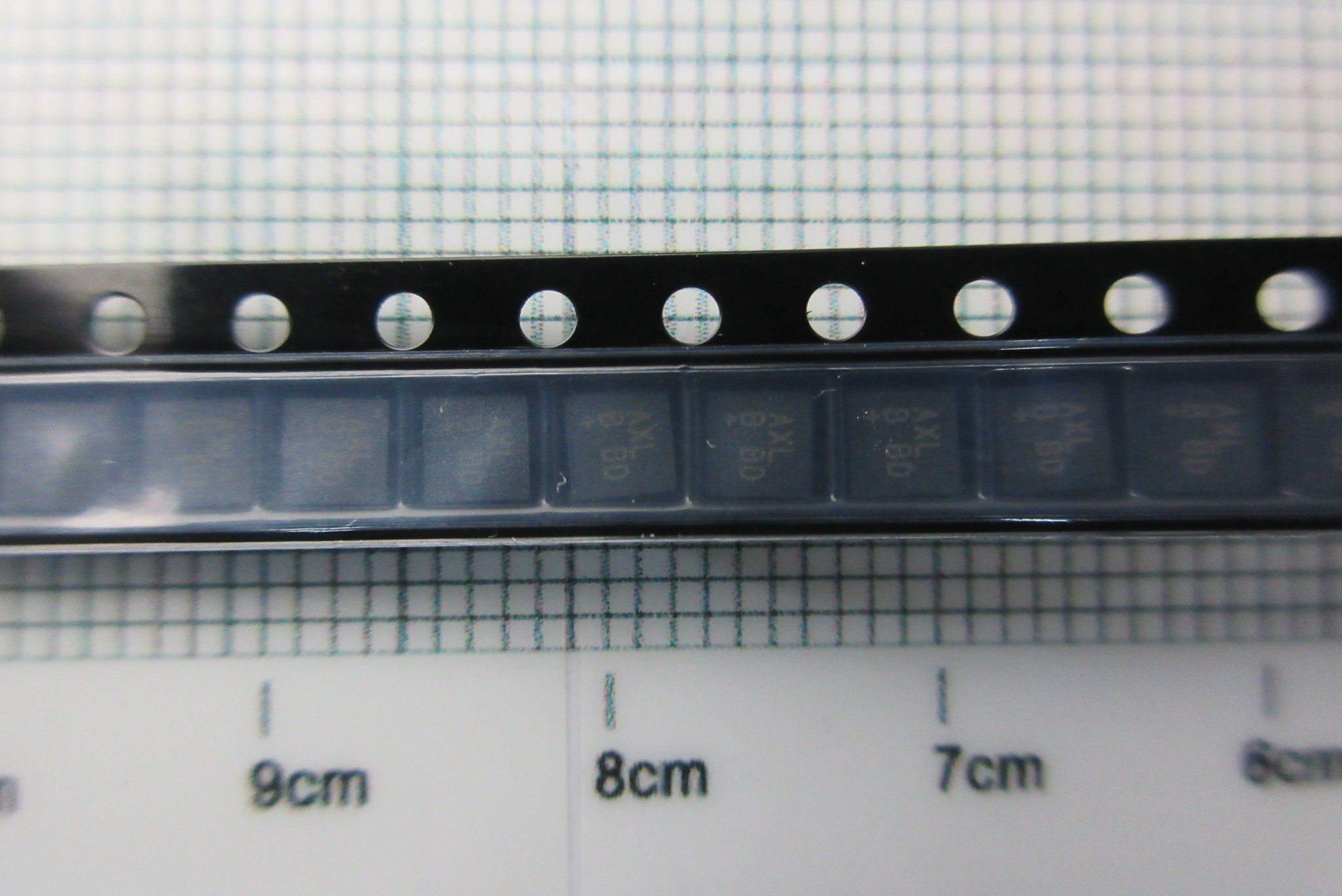

Part No.：MAX13256ATB+
Category：Integrated Circuit
Manufacturer：Maxim Integrated
Date Code：
Package Type： 10-TDFN
Quantity：
Click：10
Update Time：2022-06-29 11:40:02
Description:
| Manufacturer | Maxim Integrated | Manufacturer's Part # | MAX13256ATB+T |
|---|---|---|---|
| Categories | Integrated Circuits (ICs) | Sub-Categories | PMIC - Full, Half-Bridge Drivers |
| Series | - | Part Status | Active |
| Output Configuration | Half Bridge (2) | Applications | Transformers |
| Interface | Logic | Load Type | Inductive |
| Technology | Power MOSFET | Rds On (Typ) | 600 mOhm LS, 1 Ohm HS |
| Current - Output / Channel | 850mA | Current - Peak Output | - |
| Voltage - Supply | 8V ~ 36V | Voltage - Load | 8V ~ 36V |
| Operating Temperature | -40°C ~ 150°C (TJ) | Features | Internal Oscillator, Status Flag, Watchdog Timer |
| Fault Protection | Current Limiting, Over Temperature, UVLO | Mounting Type | Surface Mount |
| Package / Case | 10-WFDFN Exposed Pad | Supplier Device Package | 10-TDFN-EP (3x3) |
