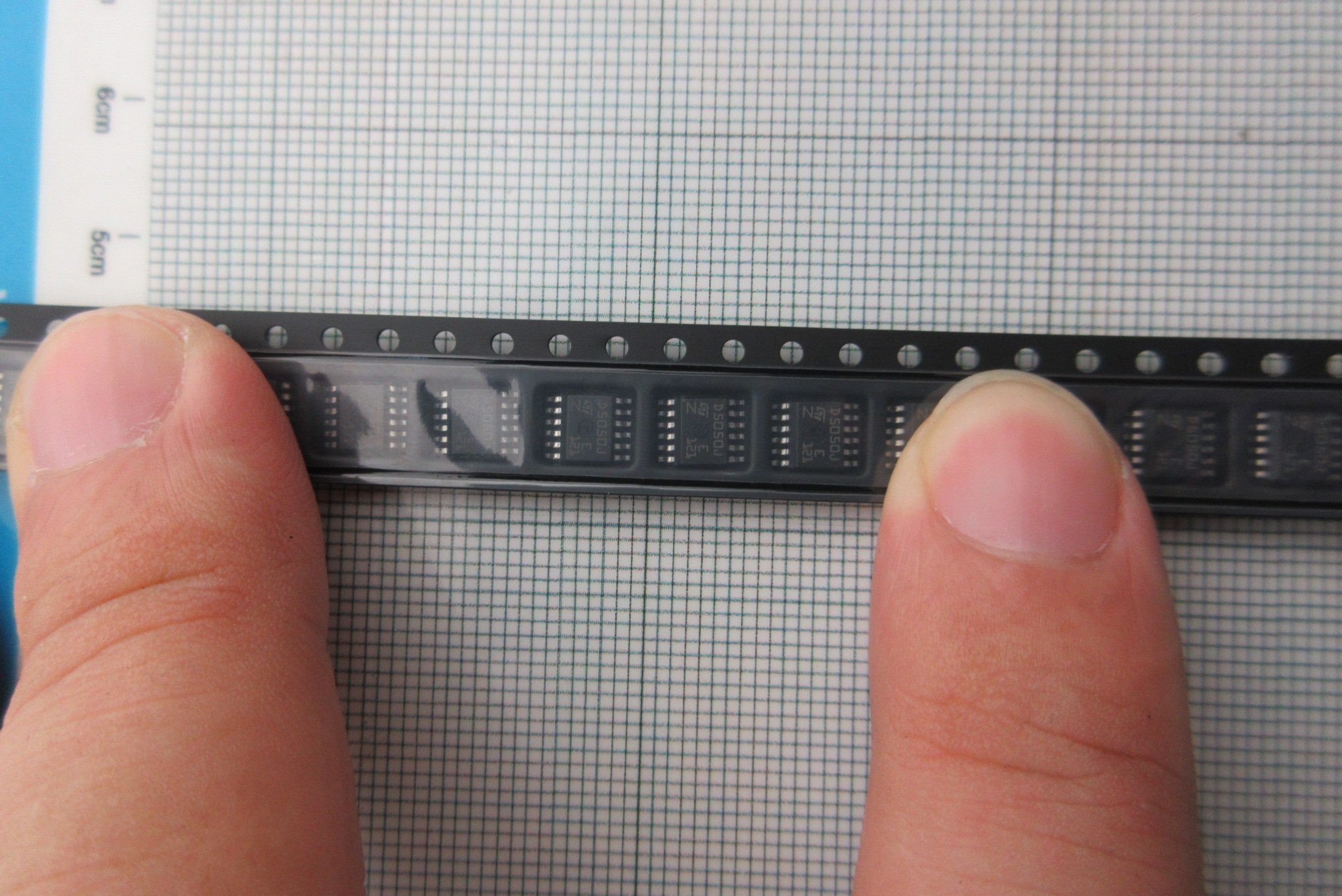

Part No.：VND5050JTR-E
Category：PMIC - Energy Metering
Manufacturer：STMicroelectronics
Date Code：
Package Type：12-PowerLSOP
Quantity：50000
Click：7
Update Time：2022-06-29 15:26:36
Description:
| Manufacturer | STMicroelectronics | Manufacturer's Part # | VND5050JTR-E |
|---|---|---|---|
| Categories | Integrated Circuits (ICs) | Sub-Categories | PMIC - Power Distribution Switches, Load Drivers |
| Series | VIPower™ | Part Status | Active |
| Switch Type | General Purpose | Number of Outputs | 2 |
| Ratio - Input:Output | 1:1 | Output Configuration | High Side |
| Output Type | N-Channel | Interface | On/Off |
| Voltage - Load | 4.5V ~ 36V | Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 12A | Rds On (Typ) | 50 mOhm (Max) |
| Input Type | Non-Inverting | Features | Auto Restart, Status Flag |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | Operating Temperature | -40°C ~ 150°C (TJ) |
| Package / Case | 12-PowerLSOP (0.154", 3.90mm Width) | Supplier Device Package | PowerSSO-12™ |
