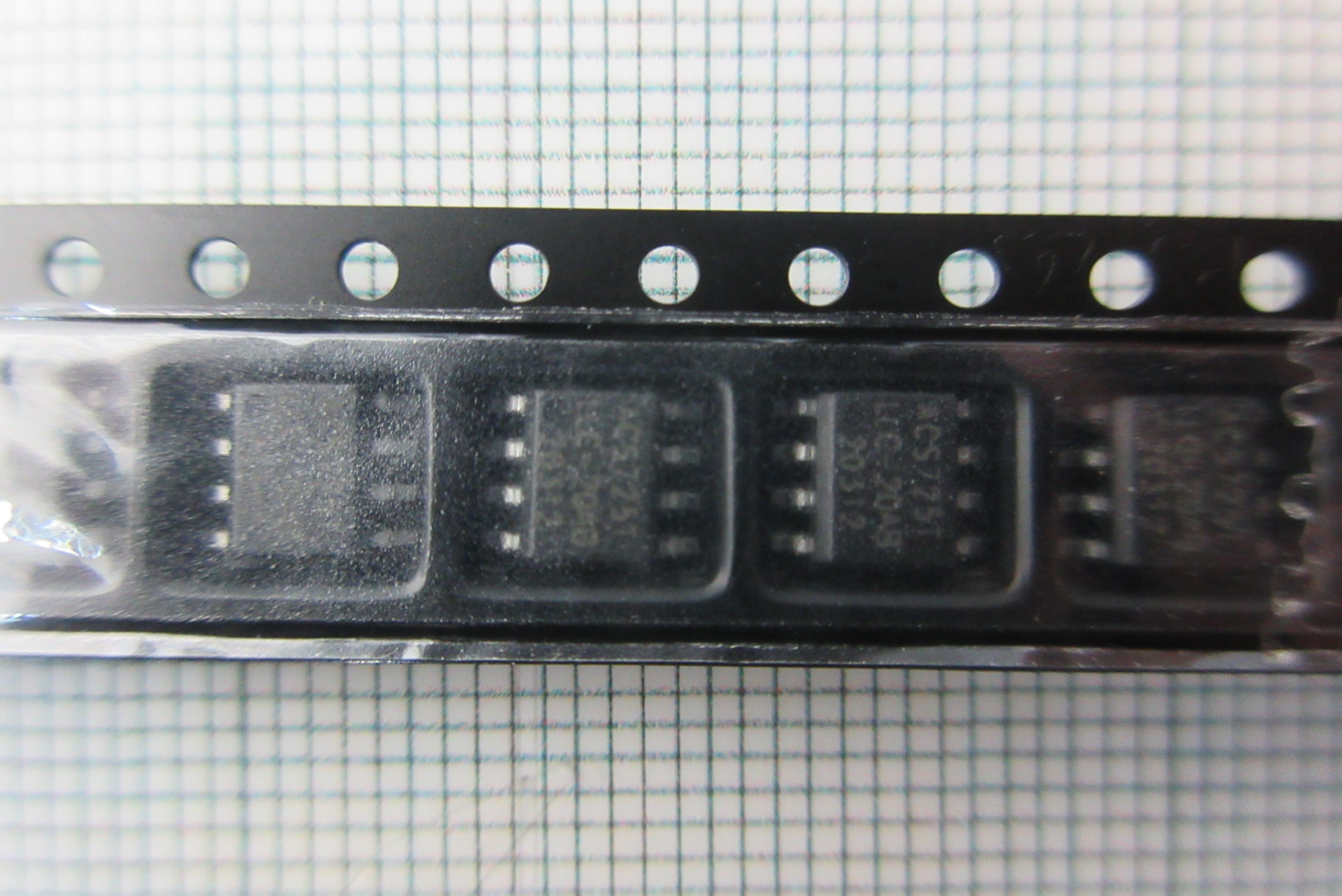

Part No.：ACS725LLCTR-20AB-T
Category：Sensors & Transducers
Manufacturer：Allegro MicroSystems, LLC
Date Code：
Package Type：8-SOIC
Quantity：50000
Click：3
Update Time：2022-06-30 10:50:07
Description:
| Manufacturer | Allegro MicroSystems, LLC. | Manufacturer's Part # | ACS725LLCTR-20AB-T |
|---|---|---|---|
| Categories | Sensors, Transducers | Sub-Categories | Current Transducers |
| Series | - | Part Status | Active |
| For Measuring | AC/DC | Sensor Type | Hall Effect, Differential |
| Current - Sensing | 20A | Number of Channels | 1 |
| Output | Ratiometric, Voltage | Sensitivity | 66mV/A |
| Frequency | DC ~ 120kHz | Linearity | ±1.5% |
| Accuracy | ±0.8% | Voltage - Supply | 3V ~ 3.6V |
| Response Time | 4µs | Current - Supply (Max) | 14mA |
| Operating Temperature | -40°C ~ 150°C | Polarization | Bidirectional |
| Mounting Type | Surface Mount | Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
