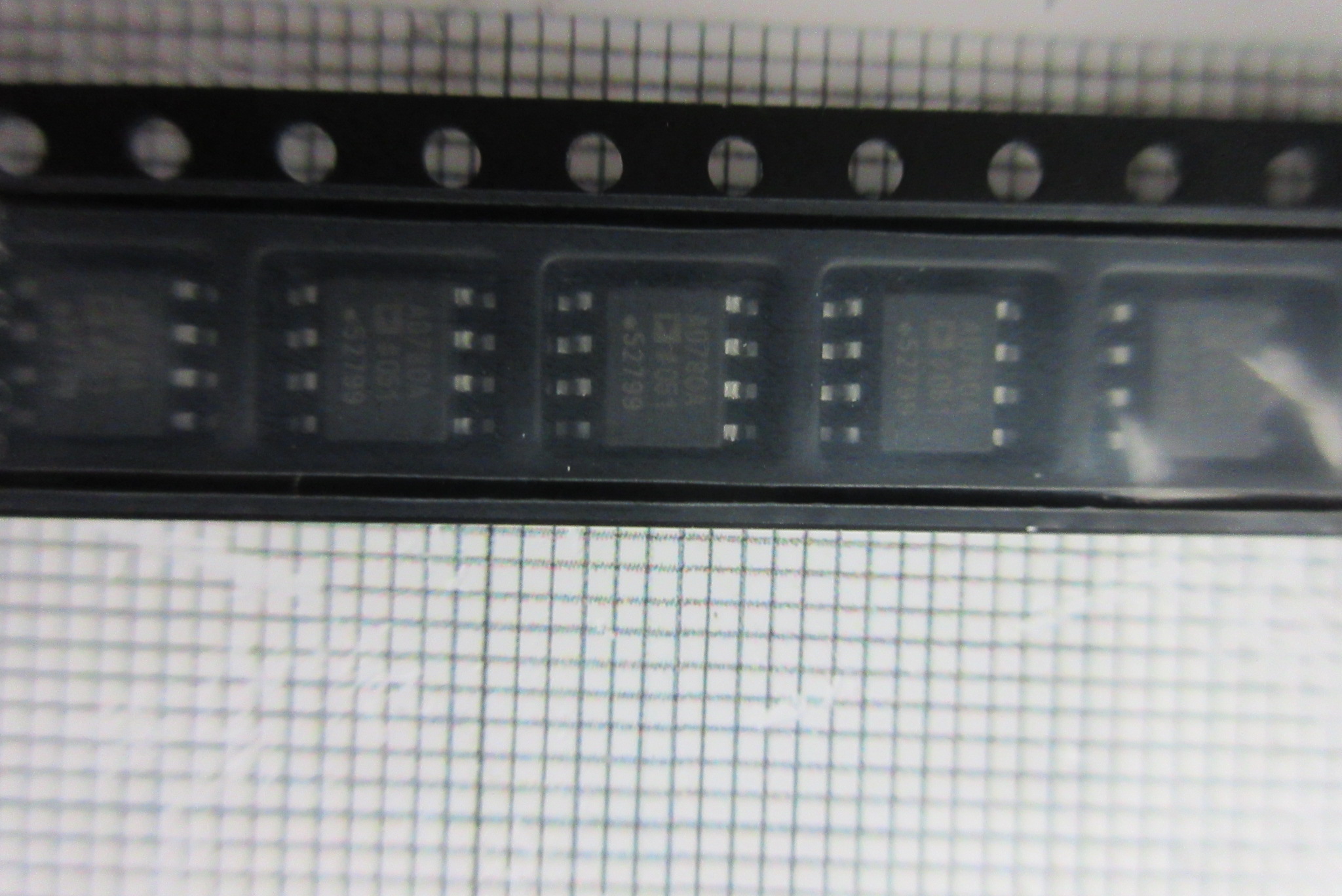

Part No.：AD780ARZ-REEL7
Category：Voltage References
Manufacturer：Analog Devices, Inc
Date Code：
Package Type：8SOIC
Quantity：50000
Click：14
Update Time：2022-06-30 11:02:17
Description:
| Manufacturer | Analog Devices, Inc. | Manufacturer's Part # | AD780ARZ-REEL7 |
|---|---|---|---|
| Categories | Integrated Circuits (ICs) | Sub-Categories | PMIC - Voltage Reference |
| Series | - | Part Status | Active |
| Reference Type | Series, Shunt | Output Type | Programmable |
| Voltage - Output (Min/Fixed) | ±2.5V, ±3V | Voltage - Output (Max) | - |
| Current - Output | 10mA | Tolerance | ±0.2%, ±0.17% |
| Temperature Coefficient | 7ppm/°C | Noise - 0.1Hz to 10Hz | 4µVp-p |
| Noise - 10Hz to 10kHz | - | Voltage - Input | 4V ~ 36V |
| Current - Supply | 1mA | Current - Cathode | 1mA |
| Operating Temperature | -40°C ~ 85°C (TA) | Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) | Supplier Device Package | 8-SOIC |
