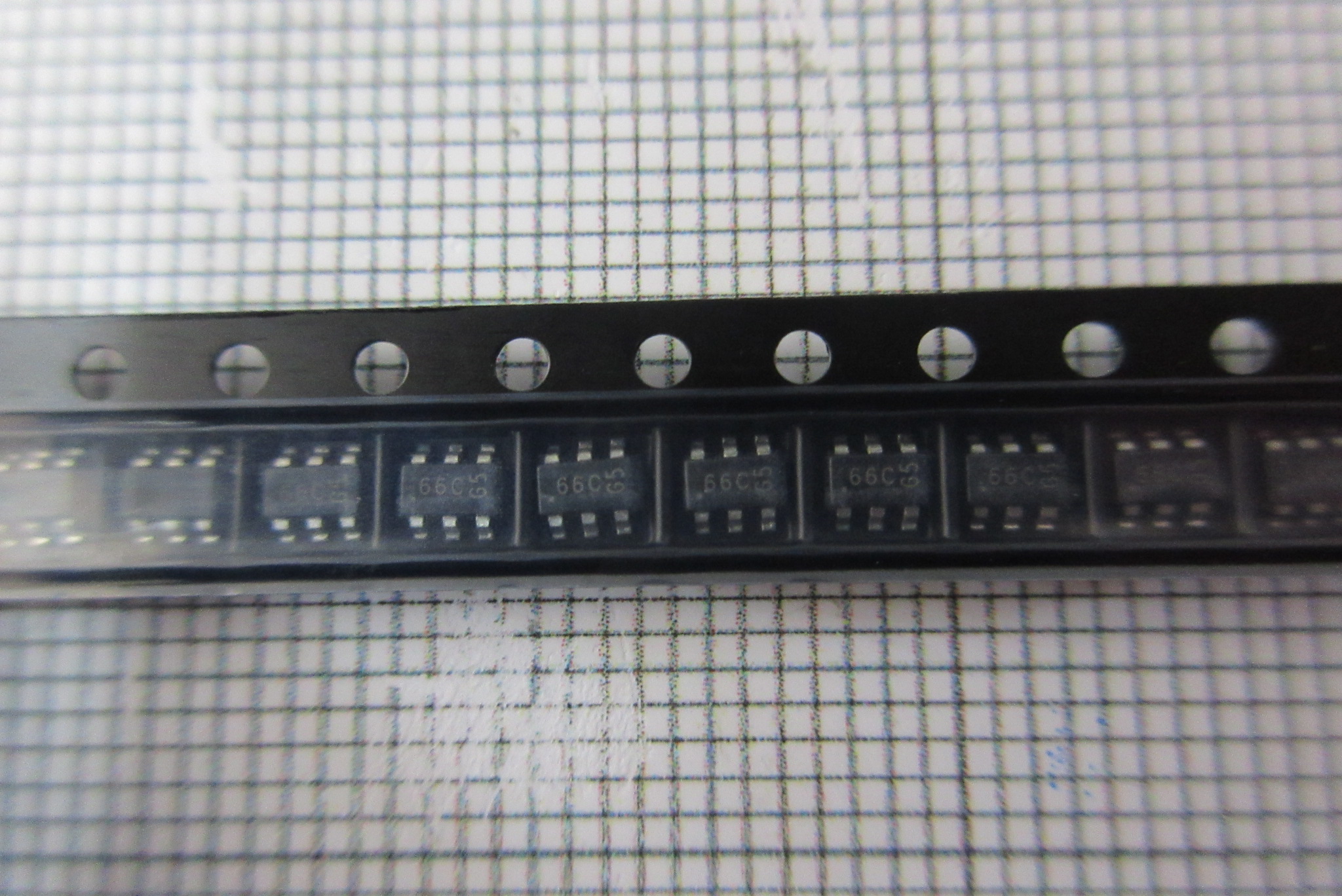

Part No.：DMG6602SVTQ-7
Category： FETS
Manufacturer：Diodes Incorporated
Date Code：
Package Type：TSOT26
Quantity：50000
Click：15
Update Time：2022-07-01 11:01:23
Description:
| Manufacturer | Diodes Incorporated | Manufacturer's Part # | DMG6602SVTQ-7 |
|---|---|---|---|
| Categories | Discrete Semiconductor Products | Sub-Categories | Transistors - FETs, MOSFETs - Arrays |
| Series | - | Part Status | Active |
| FET Type | N and P-Channel | FET Feature | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 30V | Current - Continuous Drain (Id) @ 25°C | 3.4A, 2.8A |
| Rds On (Max) @ Id, Vgs | 60 mOhm @ 3.1A, 10V | Vgs(th) (Max) @ Id | 2.3V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 13nC @ 10V | Input Capacitance (Ciss) (Max) @ Vds | 400pF @ 15V |
| Power - Max | 840mW | Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Package / Case | SOT-23-6 Thin, TSOT-23-6 |
| Supplier Device Package | TSOT-26 |
