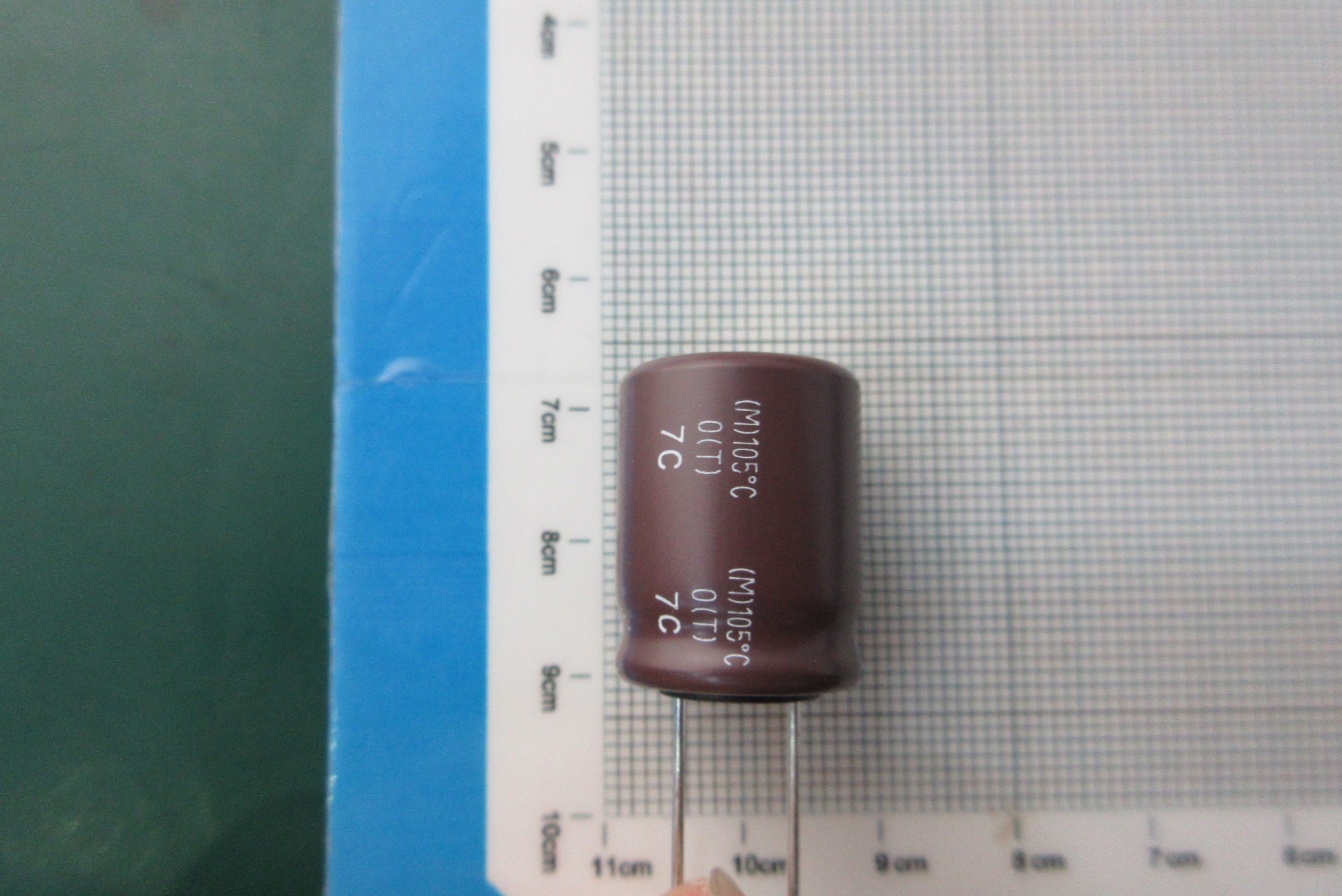

Part No.：EKXJ401ELL470ML20S
Category：Aluminium Electrolytic
Manufacturer：United Chemi-Con
Date Code：
Package Type：-
Quantity：50000
Click：19
Update Time：2022-07-01 14:06:27
Description:
| Manufacturer | United Chemi-Con | Manufacturer's Part # | EKXJ401ELL470ML20S |
|---|---|---|---|
| Categories | Capacitors | Sub-Categories | Aluminum Electrolytic Capacitors |
| Series | KXJ | Part Status | Active |
| Capacitance | 47µF | Tolerance | ±20% |
| Voltage - Rated | 400V | ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C | Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar | Ratings | AEC-Q200 |
| Applications | Automotive | Ripple Current @ Low Frequency | 435mA @ 120Hz |
| Ripple Current @ High Frequency | 1.0875A @ 100kHz | Impedance | - |
| Lead Spacing | 0.295" (7.50mm) | Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.846" (21.50mm) | Surface Mount Land Size | - |
| Mounting Type | Through Hole | Package / Case | Radial, Can |
