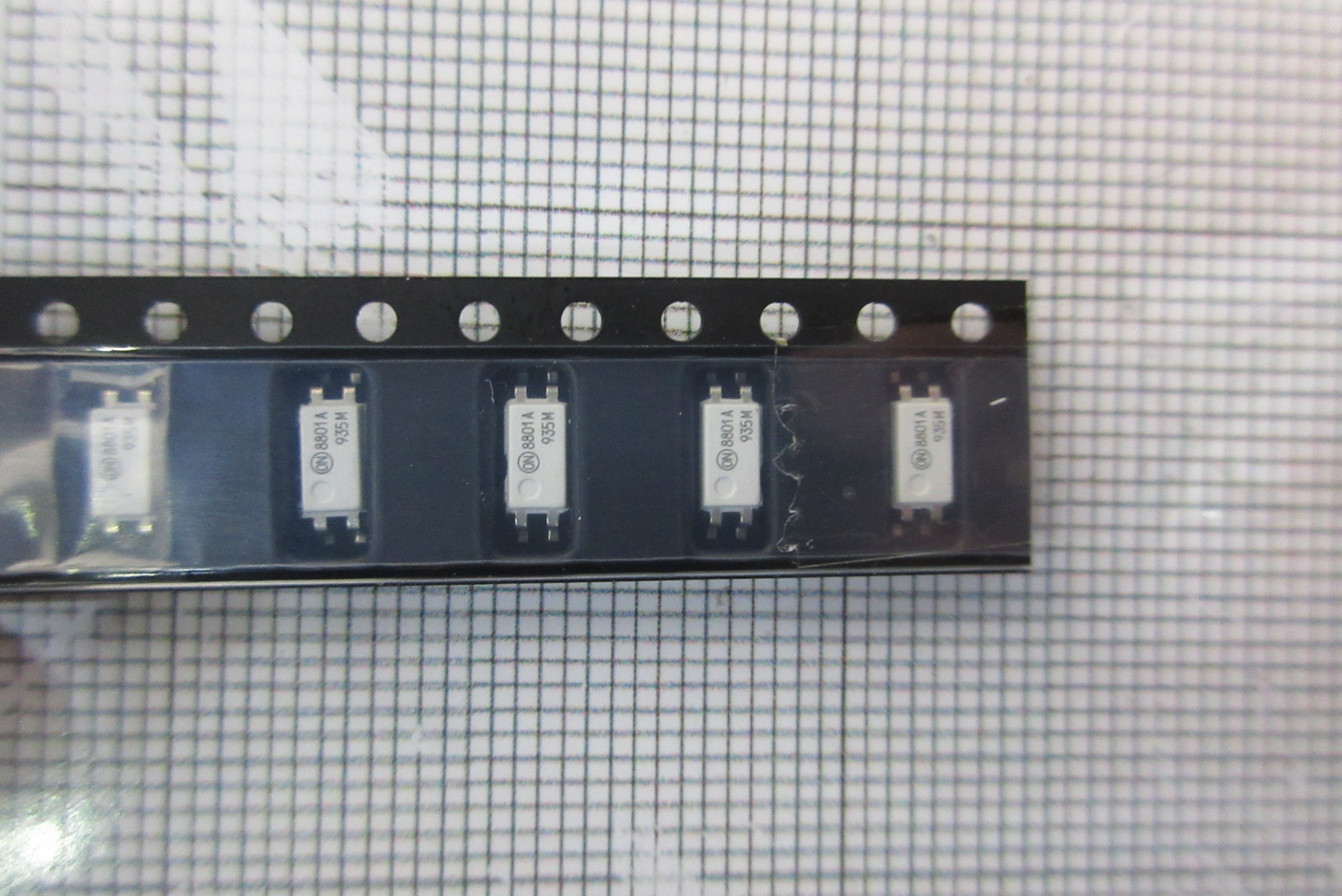

Part No.：FODM8801A
Category：Isolator
Manufacturer：ON Semiconductor
Date Code：
Package Type：4-SOIC
Quantity：50000
Click：28
Update Time：2022-07-01 14:12:58
Description:
| Manufacturer | ON Semiconductor | Manufacturer's Part # | FODM8801A |
|---|---|---|---|
| Categories | Isolators | Sub-Categories | Optoisolators - Transistor, Photovoltaic Output |
| Series | OptoHit™ | Part Status | Active |
| Number of Channels | 1 | Voltage - Isolation | 3750Vrms |
| Current Transfer Ratio (Min) | 80% @ 1mA | Current Transfer Ratio (Max) | 160% @ 1mA |
| Turn On / Turn Off Time (Typ) | 6µs, 6µs | Rise / Fall Time (Typ) | 5µs, 5.5µs |
| Input Type | DC | Output Type | Transistor |
| Voltage - Output (Max) | 75V | Current - Output / Channel | 30mA |
| Voltage - Forward (Vf) (Typ) | 1.35V | Current - DC Forward (If) (Max) | 20mA |
| Vce Saturation (Max) | 400mV | Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Package / Case | 4-SOIC (0.173", 4.40mm Width) |
| Supplier Device Package | 4-Mini-Flat |
