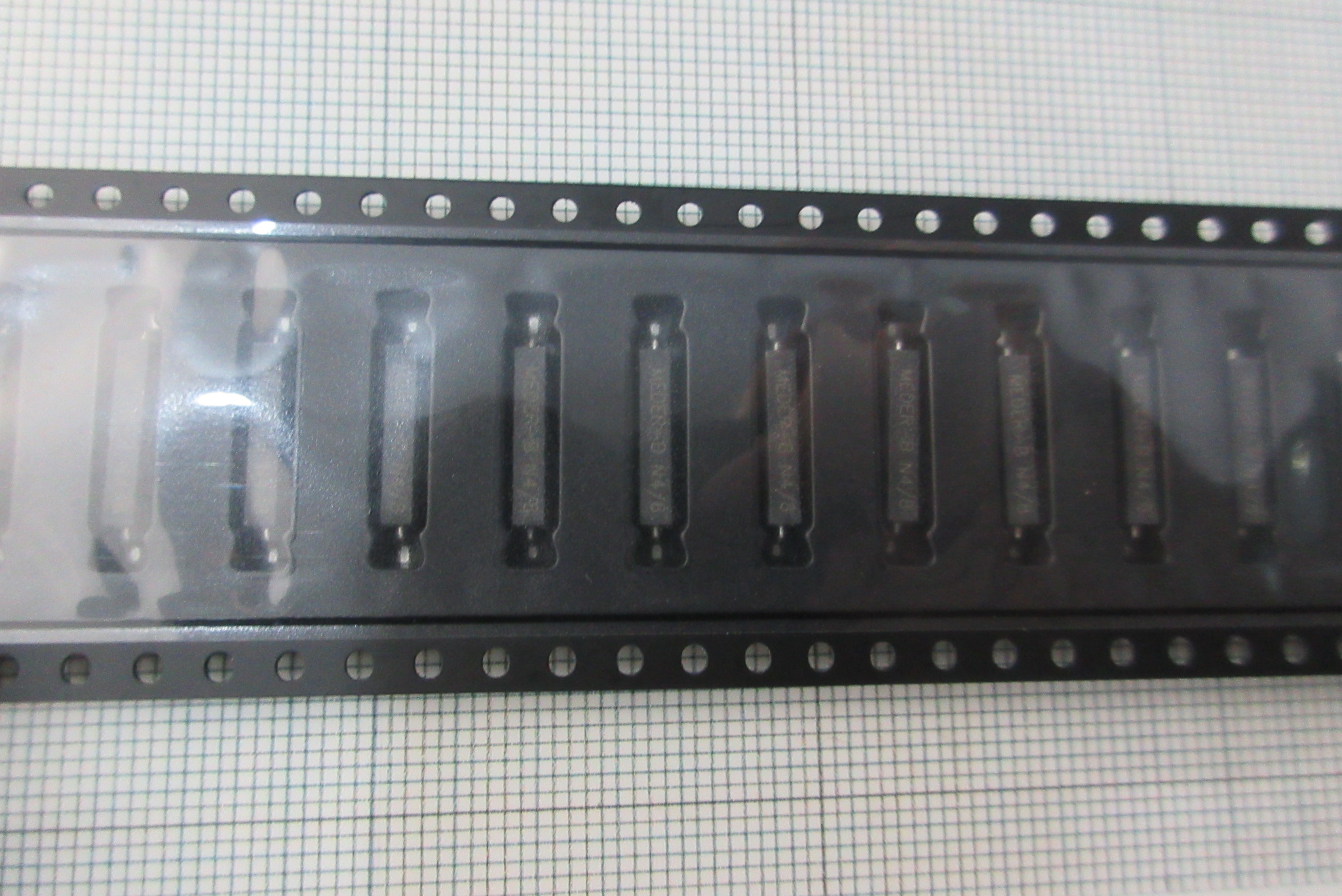

Part No.：MK16-B-2
Category：Switch
Manufacturer：Standex-Meder Electronics
Date Code：
Package Type：SMD
Quantity：50000
Click：24
Update Time：2022-07-04 10:04:18
Description:
| Manufacturer | Standex-Meder Electronics | Manufacturer's Part # | MK16-B-2 |
|---|---|---|---|
| Categories | Switches | Sub-Categories | Magnetic, Reed Switches |
| Series | MK16 | Part Status | Active |
| Type | Molded Body | Circuit | SPST-NO |
| Operate Range | 10 ~ 15AT | Release Range | - |
| Current - Switching | 400mA (AC/DC) | Voltage - Switching AC | 200V |
| Voltage - Switching DC | 200V | Power - Rated | 10W |
| Operate Time | 0.6ms | Release Time | 0.05ms |
| Mounting Type | Surface Mount | Termination Style | Gull Wing |
| Length - Overall | 0.614" (15.60mm) | Size - Body | 0.457" L x 0.091" W x 0.091" H (11.60mm x 2.30mm x 2.30mm) |
| Height Above Board | 0.094" (2.40mm) | Operating Temperature | -40°C ~ 130°C |
| Capacitance | 0.2pF | Current - Carry | 500mA (AC/DC) |
