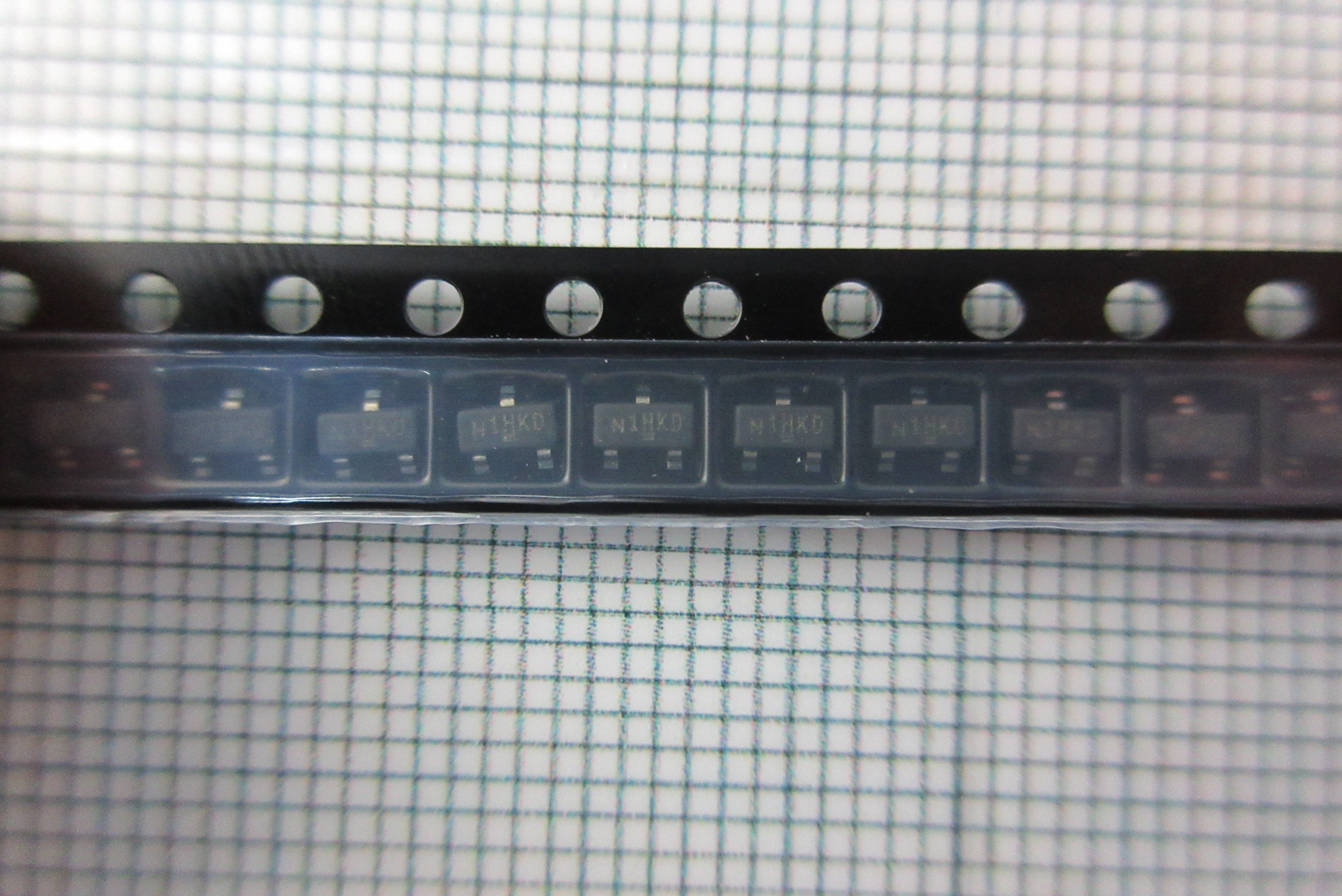

Part No.：SI2301CDS-T1-E3
Category： FETS
Manufacturer：Vishay
Date Code：
Package Type：SOT23-3
Quantity：50000
Click：18
Update Time：2022-07-04 11:06:04
Description:
| Manufacturer | Vishay | Manufacturer's Part # | SI2301CDS-T1-E3 |
|---|---|---|---|
| Categories | Discrete Semiconductor Products | Sub-Categories | Transistors - FETs, MOSFETs - Single |
| Series | TrenchFET® | Part Status | Active |
| FET Type | P-Channel | Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20V | Current - Continuous Drain (Id) @ 25°C | 3.1A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 4.5V | Rds On (Max) @ Id, Vgs | 112 mOhm @ 2.8A, 4.5V |
| Vgs(th) (Max) @ Id | 1V @ 250µA | Gate Charge (Qg) (Max) @ Vgs | 10nC @ 4.5V |
| Vgs (Max) | ±8V | Input Capacitance (Ciss) (Max) @ Vds | 405pF @ 10V |
| FET Feature | - | Power Dissipation (Max) | 860mW (Ta), 1.6W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | Mounting Type | Surface Mount |
| Supplier Device Package | SOT-23-3 (TO-236) | Package / Case | TO-236-3, SC-59, SOT-23-3 |
