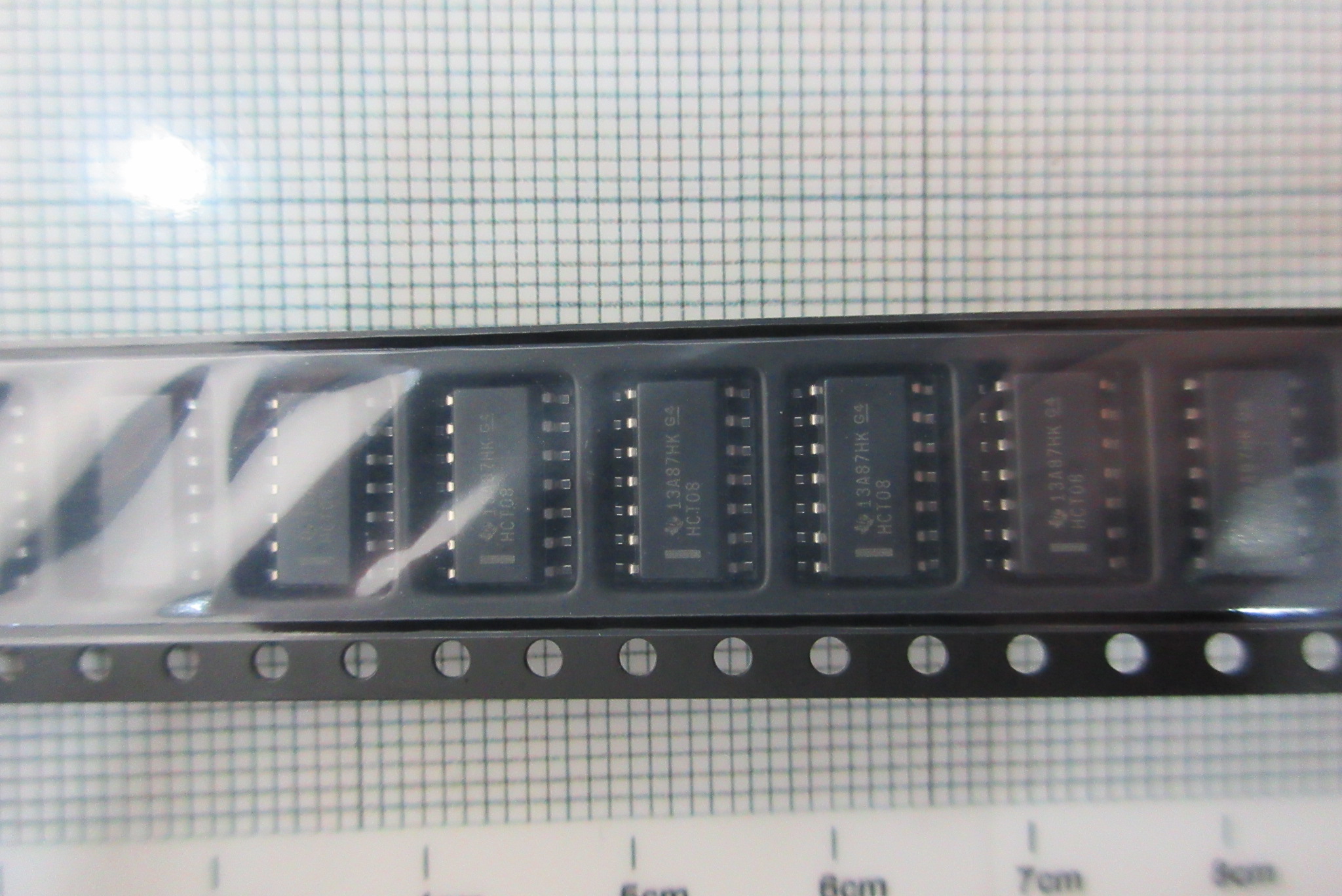

Part No.：SN74HCT08DR
Category：Logic
Manufacturer：Texas
Date Code：
Package Type：14SOIC
Quantity：50000
Click：12
Update Time：2022-07-04 11:26:15
Description:
| Manufacturer | Texas | Manufacturer's Part # | SN74HCT08DR |
|---|---|---|---|
| Categories | Integrated Circuits (ICs) | Sub-Categories | Logic - Gates and Inverters |
| Series | 74HCT | Part Status | Active |
| Logic Type | AND Gate | Number of Circuits | 4 |
| Number of Inputs | 2 | Features | - |
| Voltage - Supply | 4.5V ~ 5.5V | Current - Quiescent (Max) | 2µA |
| Current - Output High, Low | 4mA, 4mA | Logic Level - Low | 0.8V |
| Logic Level - High | 2V | Max Propagation Delay @ V, Max CL | 22ns @ 5.5V, 50pF |
| Operating Temperature | -40°C ~ 85°C | Mounting Type | Surface Mount |
| Supplier Device Package | 14-SOIC | Package / Case | 14-SOIC (0.154", 3.90mm Width) |
