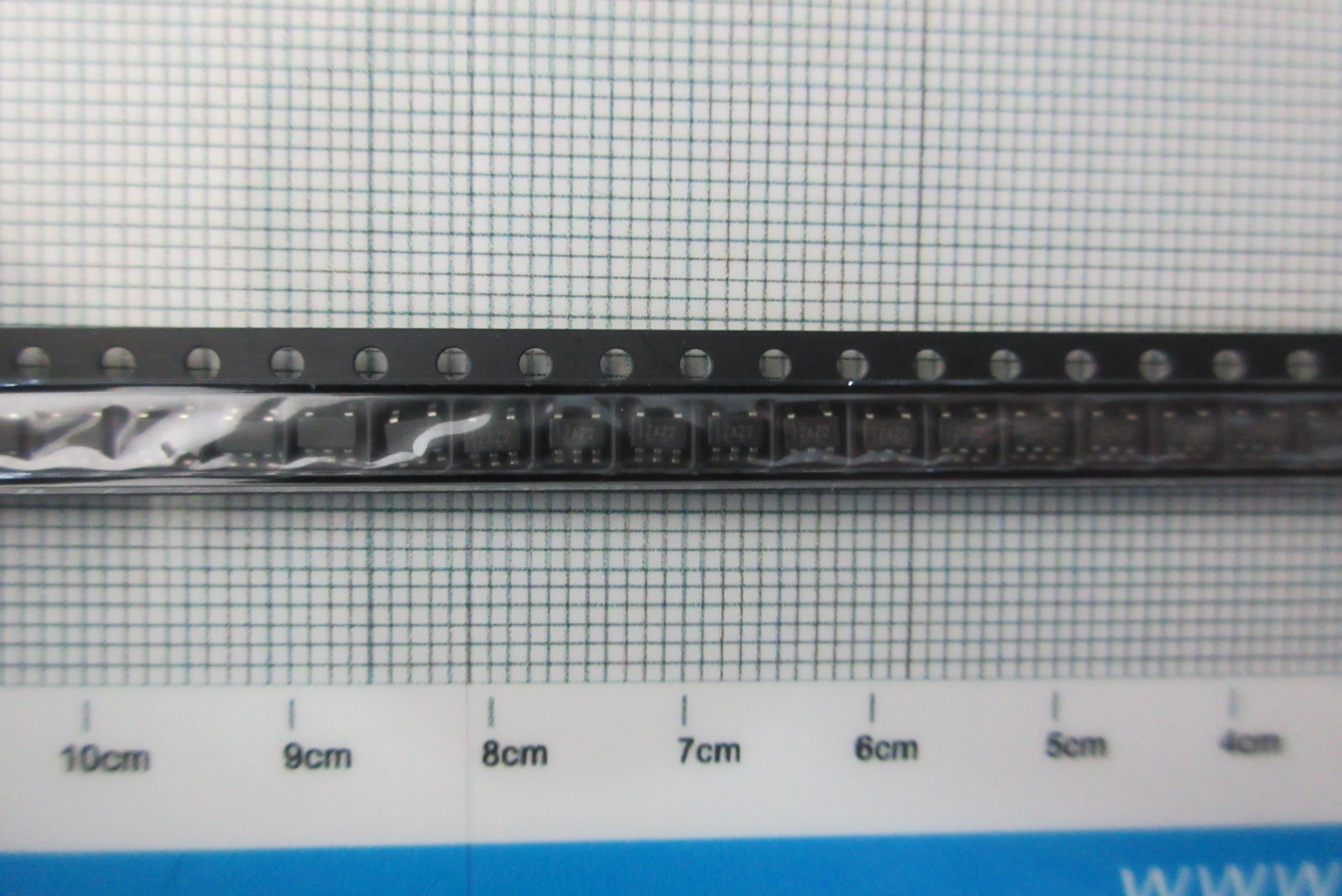

Part No.：TPS7B6950QDBVRQ1
Category：PMIC - Energy Metering
Manufacturer：Texas
Date Code：
Package Type：SOT23-5
Quantity：50000
Click：9
Update Time：2022-07-04 16:09:01
Description:
| Manufacturer | Texas | Manufacturer's Part # | TPS7B6950QDBVRQ1 |
|---|---|---|---|
| Categories | Integrated Circuits (ICs) | Sub-Categories | PMIC - Voltage Regulators - Linear |
| Series | Automotive, AEC-Q100 | Part Status | Active |
| Output Configuration | Positive | Output Type | Fixed |
| Number of Regulators | 1 | Voltage - Input (Max) | 40V |
| Voltage - Output (Min/Fixed) | 5V | Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.8V @ 100mA | Current - Output | 150mA |
| Current - Quiescent (Iq) | 25µA | Current - Supply (Max) | - |
| PSRR | 60dB (100Hz) | Control Features | - |
| Protection Features | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | Operating Temperature | -40°C ~ 150°C |
| Mounting Type | Surface Mount | Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SOT-23-5 |
