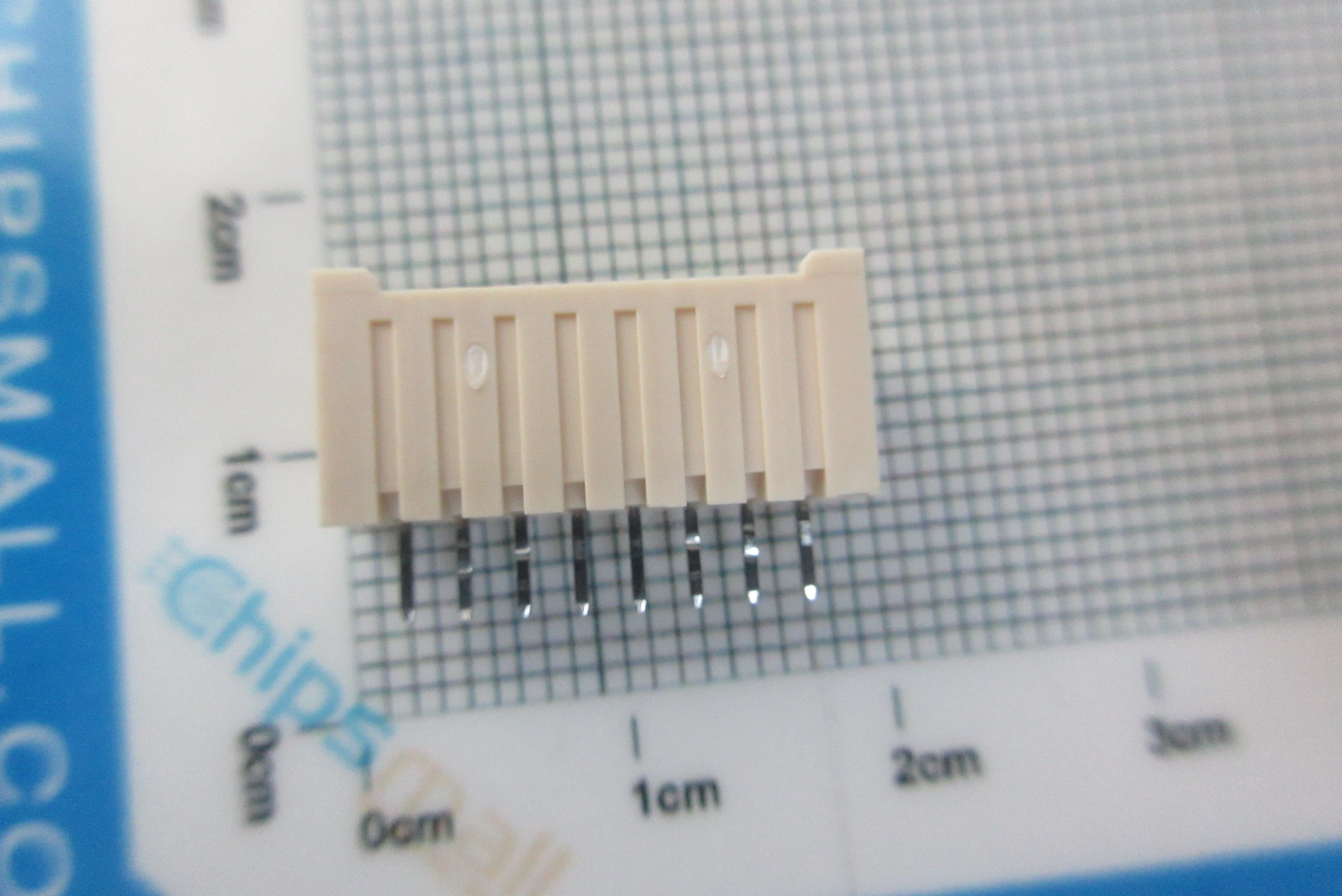

Part No.：0353620850
Category：Interconnects
Manufacturer：Molex
Date Code：
Package Type： 8POS
Quantity：100000
Click：17
Update Time：2022-07-04 16:12:02
Description:
| Manufacturer | Molex | Manufacturer's Part # | 0353620850 |
|---|---|---|---|
| Categories | Connectors, Interconnects | Sub-Categories | Rectangular Connectors - Headers, Male Pins |
| Series | Sherlock 35362 | Part Status | Active |
| Connector Type | Header | Contact Type | Male Pin |
| Pitch - Mating | 0.079" (2.00mm) | Number of Positions | 8 |
| Number of Rows | 1 | Row Spacing - Mating | - |
| Number of Positions Loaded | All | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Mounting Type | Through Hole |
| Termination | Kinked Pin, Solder | Fastening Type | Locking Ramp |
| Contact Length - Mating | 0.145" (3.70mm) | Contact Length - Post | 0.130" (3.30mm) |
| Overall Contact Length | - | Insulation Height | 0.335" (8.51mm) |
| Contact Shape | Square | Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 39.4µin (1.00µm) | Contact Finish - Post | Tin |
| Contact Material | Brass | Insulation Material | Polyamide (PA), Nylon |
| Features | - | Operating Temperature | -40°C ~ 105°C |
| Ingress Protection | - | Material Flammability Rating | UL94 V-0 |
| Insulation Color | Natural | Current Rating | - |
| Voltage Rating | 125V |
