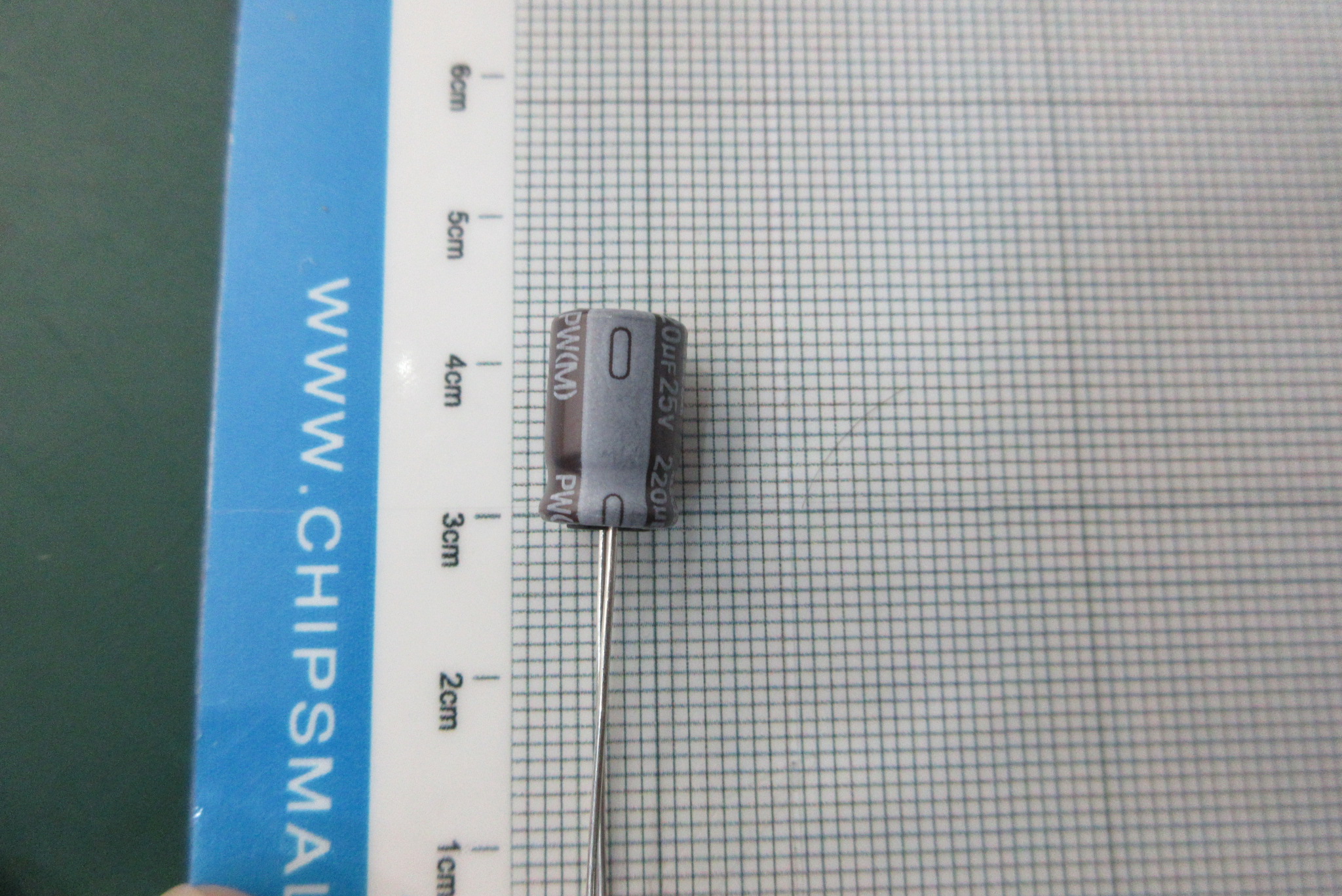

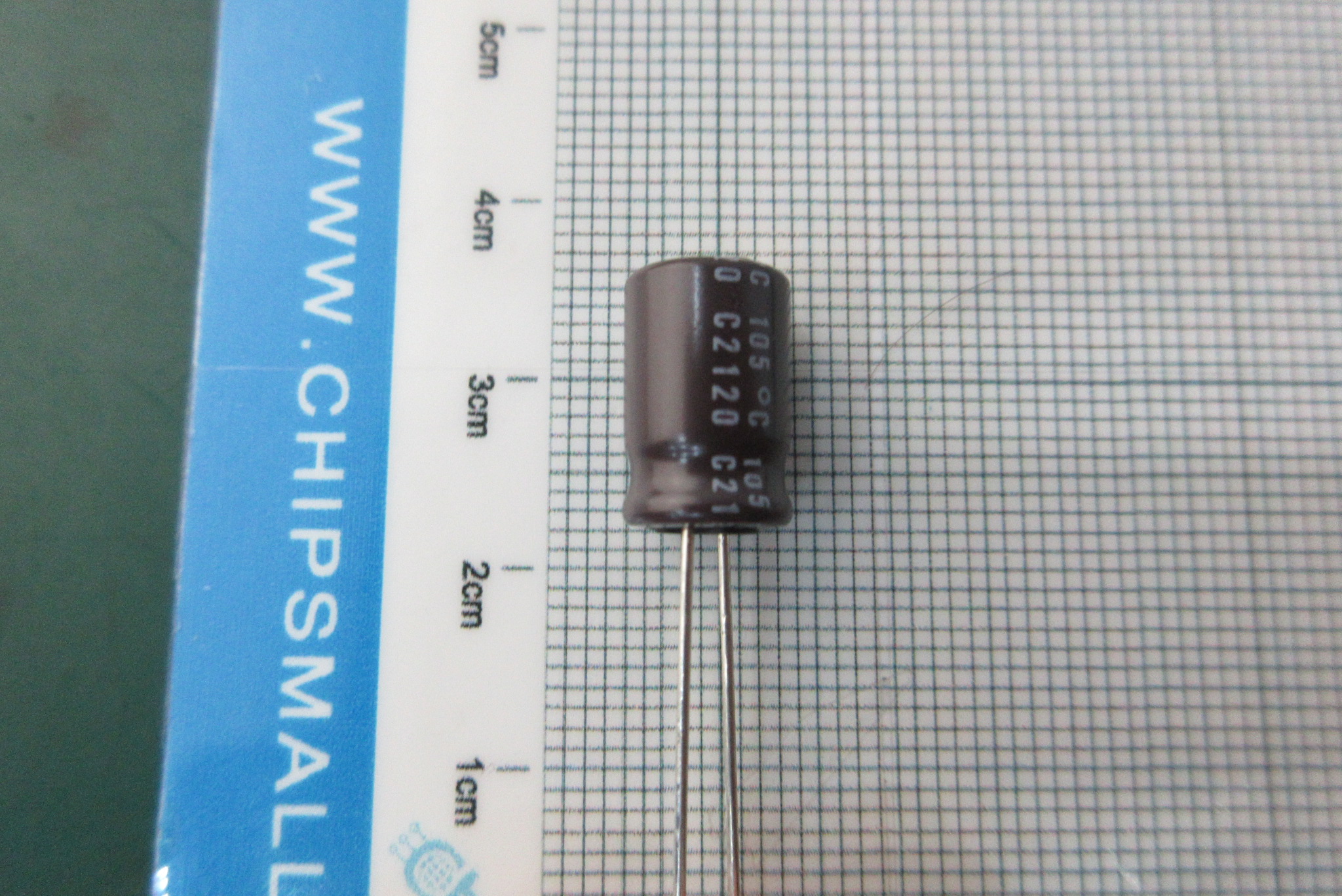

Part No.：UPW1E221MPD
Category：Aluminium Electrolytic
Manufacturer：Nichicon
Date Code：
Package Type：Radial, Can
Quantity：50000
Click：19
Update Time：2022-07-05 10:54:28
Description:
| Manufacturer | Nichicon | Manufacturer's Part # | UPW1E221MPD |
|---|---|---|---|
| Categories | Capacitors | Sub-Categories | Aluminum Electrolytic Capacitors |
| Series | UPW | Part Status | Active |
| Capacitance | 220µF | Tolerance | ±20% |
| Voltage - Rated | 25V | ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C | Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar | Ratings | - |
| Applications | General Purpose | Ripple Current @ Low Frequency | 360.75mA @ 120Hz |
| Ripple Current @ High Frequency | - | Impedance | 117 mOhms |
| Lead Spacing | 0.138" (3.50mm) | Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.453" (11.50mm) | Surface Mount Land Size | - |
| Mounting Type | Through Hole | Package / Case | Radial, Can |
