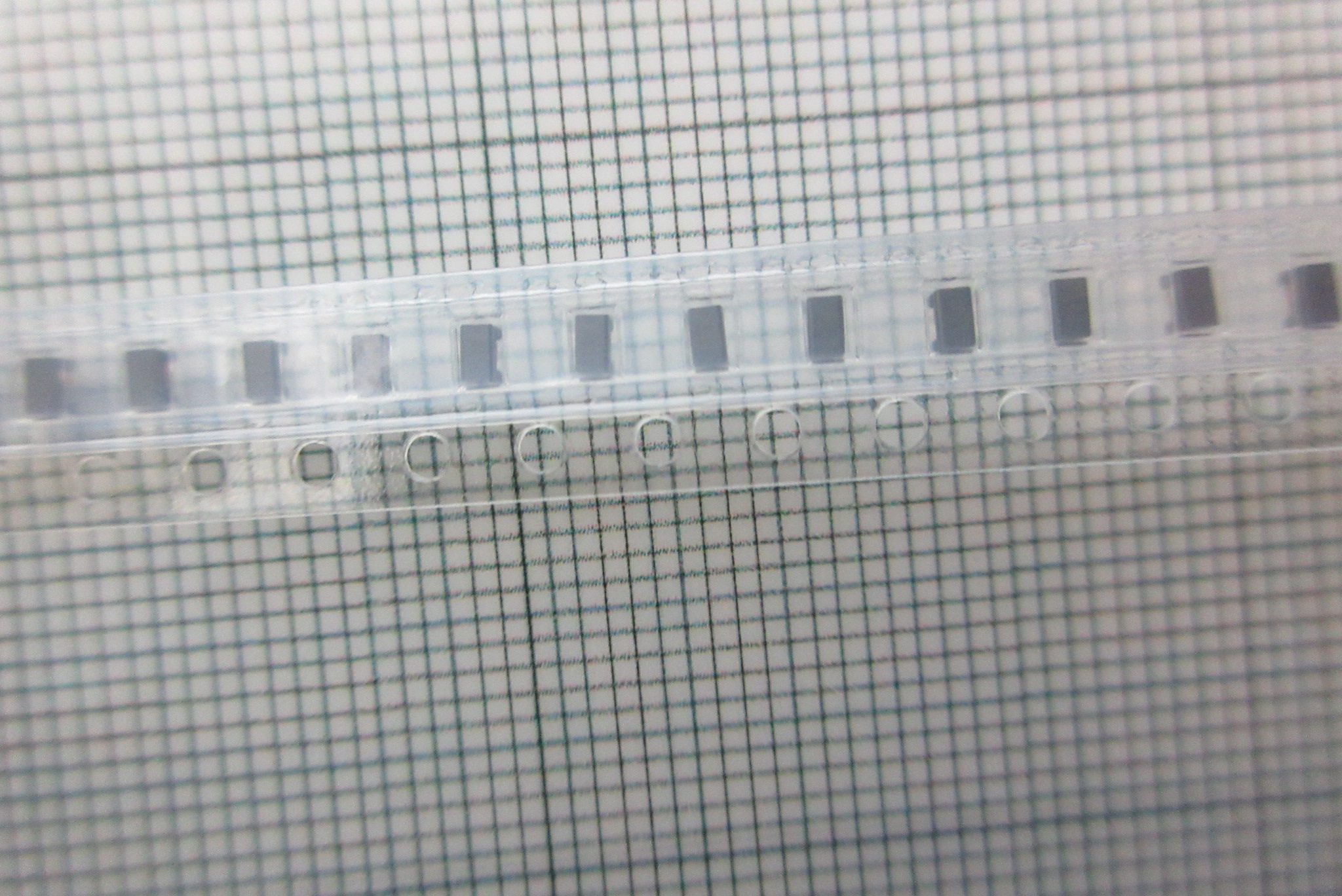

Part No.：ACM2012-900-2P-T001
Category：Filters
Manufacturer：TDK Corporation
Date Code：
Package Type：0805
Quantity：50000
Click：6
Update Time：2022-07-05 13:41:52
Description:
| Manufacturer | TDK Corporation | Manufacturer's Part # | ACM2012-900-2P-T001 |
|---|---|---|---|
| Categories | Filters | Sub-Categories | Common Mode Chokes |
| Series | ACM | Part Status | Active |
| Filter Type | Signal Line | Number of Lines | 2 |
| Impedance @ Frequency | 90 Ohms @ 100MHz | Inductance @ Frequency | - |
| Current Rating (Max) | 400mA | DC Resistance (DCR) (Max) | 190 mOhm |
| Voltage Rating - DC | 50V | Voltage Rating - AC | - |
| Operating Temperature | -40°C ~ 105°C | Ratings | AEC-Q200 |
| Approvals | - | Features | - |
| Mounting Type | Surface Mount | Size / Dimension | 0.079" L x 0.047" W (2.00mm x 1.20mm) |
| Height (Max) | 0.051" (1.30mm) | Package / Case | Horizontal, 4 PC Pad |
