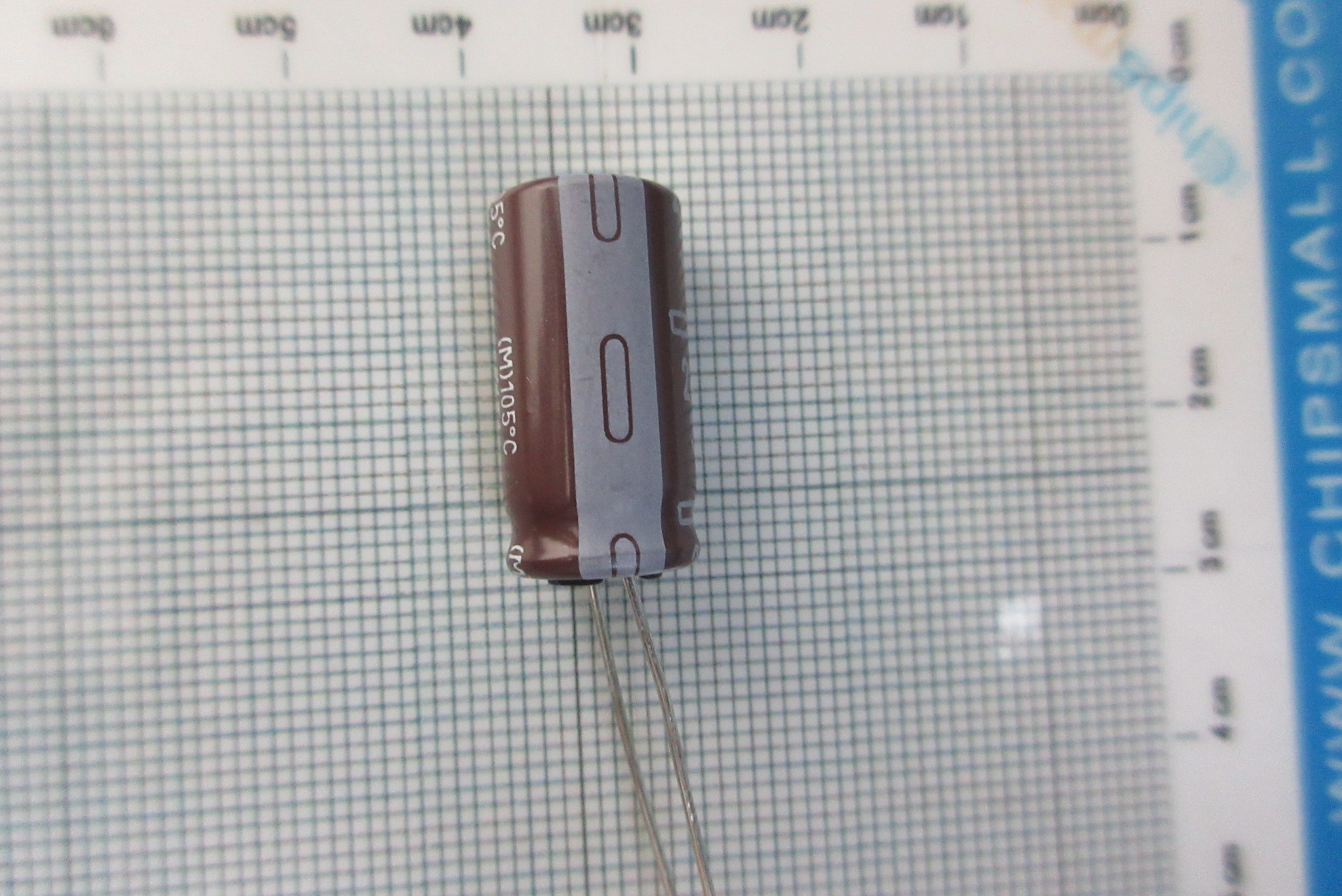

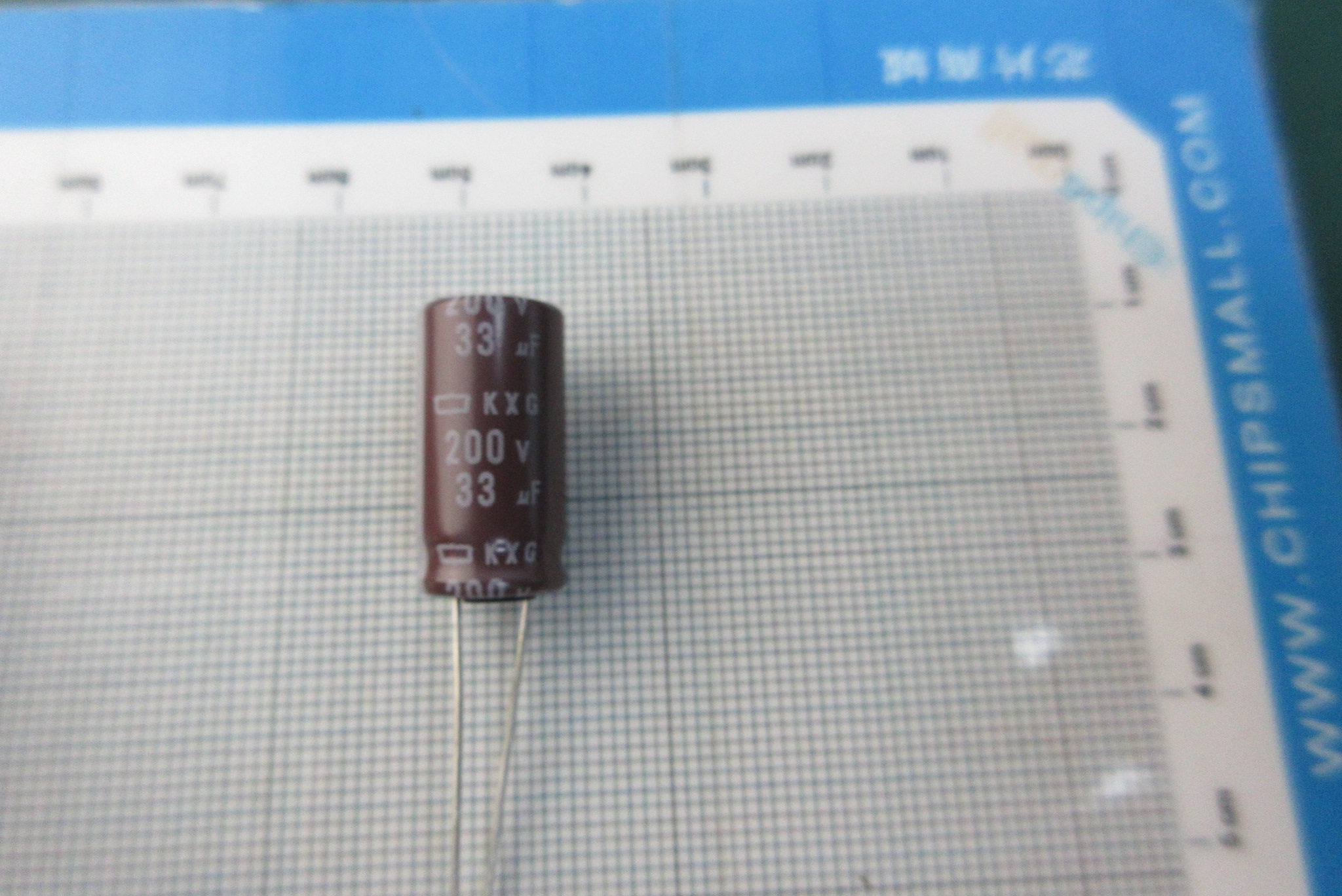

Part No.：EKXG201ELL330MJ20S
Category：Aluminium Electrolytic
Manufacturer：United Chemi-Con
Date Code：
Package Type：Radial, Can
Quantity：50000
Click：18
Update Time：2022-07-05 14:36:17
Description:
| Manufacturer | United Chemi-Con | Manufacturer's Part # | EKXG201ELL330MJ20S |
|---|---|---|---|
| Categories | Capacitors | Sub-Categories | Aluminum Electrolytic Capacitors |
| Series | KXG | Part Status | Active |
| Capacitance | 33µF | Tolerance | ±20% |
| Voltage - Rated | 200V | ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 8000 Hrs @ 105°C | Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar | Ratings | - |
| Applications | General Purpose | Ripple Current @ Low Frequency | 260mA @ 120Hz |
| Ripple Current @ High Frequency | 650mA @ 100kHz | Impedance | - |
| Lead Spacing | 0.197" (5.00mm) | Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.787" (20.00mm) | Surface Mount Land Size | - |
| Mounting Type | Through Hole | Package / Case | Radial, Can |
