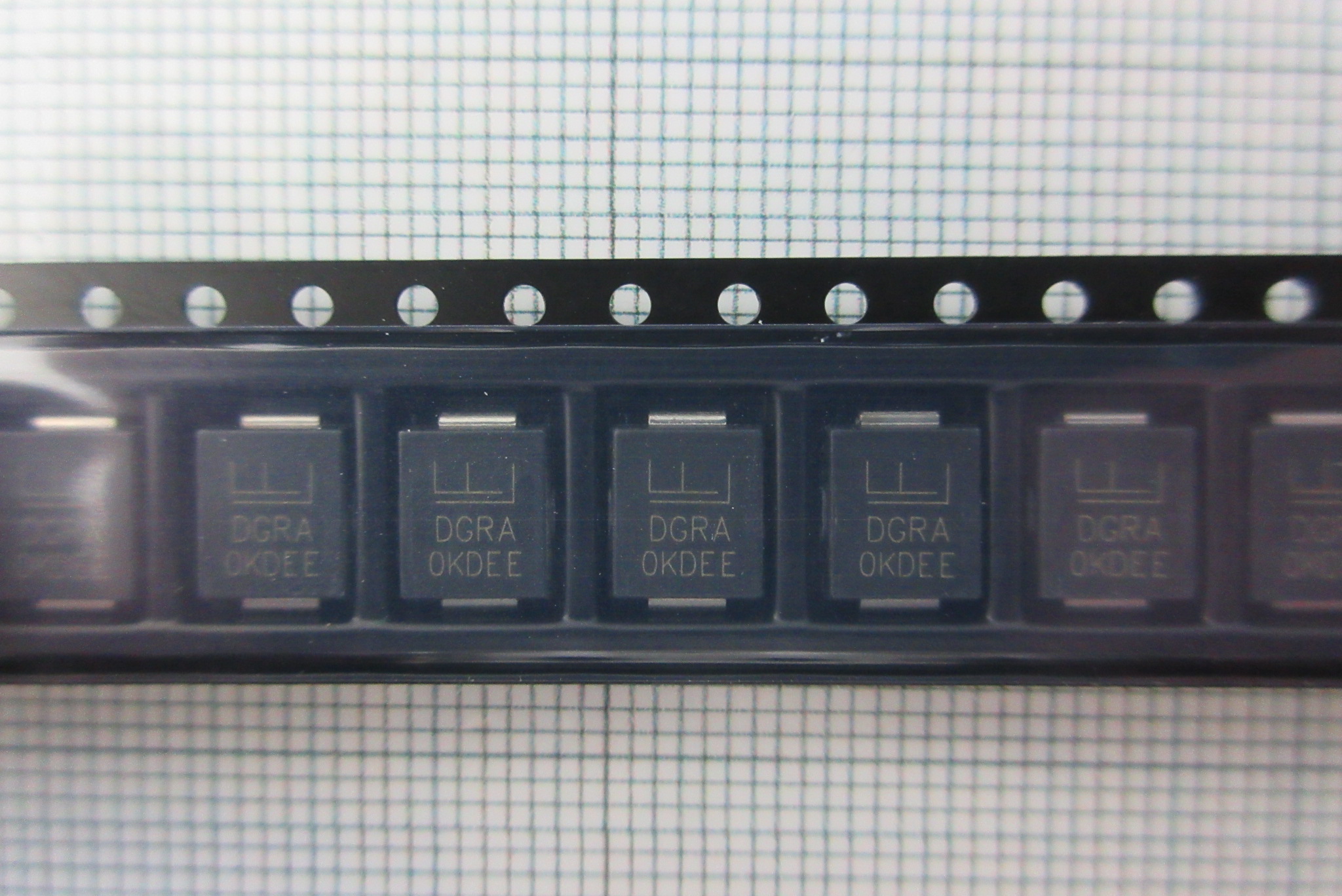

Part No.：TPSMD75CA
Category：TVS - Diodes
Manufacturer：Littelfuse
Date Code：
Package Type： DO214AB
Quantity：100000
Click：14
Update Time：2022-07-06 09:59:20
Description:
| Manufacturer | Littelfuse | Manufacturer's Part # | TPSMD75CA |
|---|---|---|---|
| Categories | Circuit Protection | Sub-Categories | TVS - Diodes |
| Series | Automotive, AEC-Q101, TPSMD | Part Status | Active |
| Type | Zener | Unidirectional Channels | - |
| Bidirectional Channels | 1 | Voltage - Reverse Standoff (Typ) | 75V |
| Voltage - Breakdown (Min) | 83.3V | Voltage - Clamping (Max) @ Ipp | 121V |
| Current - Peak Pulse (10/1000µs) | 24.8A | Power - Peak Pulse | 3000W (3kW) |
| Power Line Protection | No | Applications | Automotive |
| Capacitance @ Frequency | - | Operating Temperature | -65°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Package / Case | DO-214AB, SMC |
| Supplier Device Package | DO-214AB (SMCJ) |
