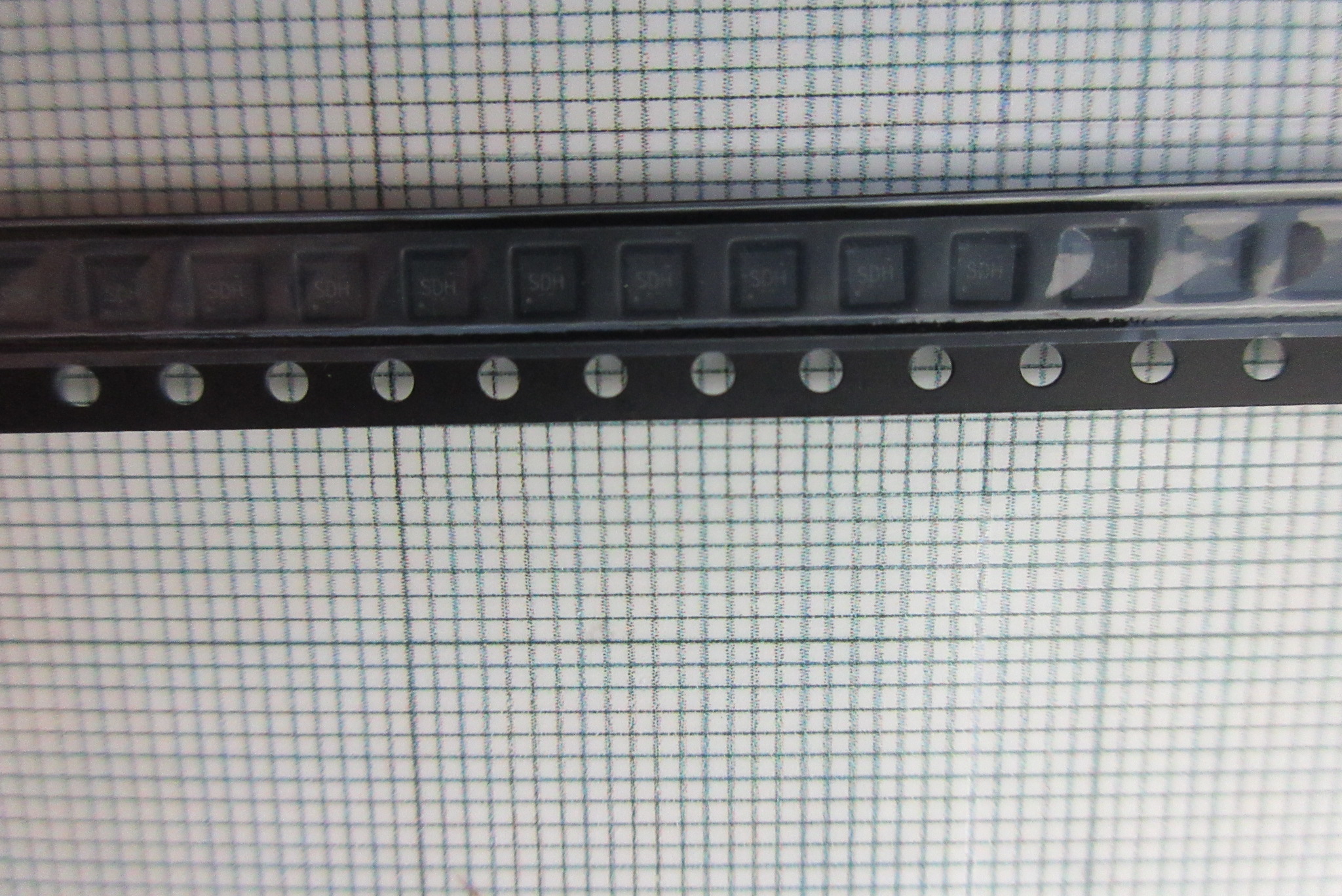

Part No.：TPS70950DRVT
Category：Regulator
Manufacturer：Texas
Date Code：
Package Type：6-SON
Quantity：100000
Click：37
Update Time：2022-07-06 10:07:31
Description:
| Manufacturer | Texas | Manufacturer's Part # | TPS70950DRVT |
|---|---|---|---|
| Categories | Integrated Circuits (ICs) | Sub-Categories | PMIC - Voltage Regulators - Linear |
| Series | - | Part Status | Active |
| Output Configuration | Positive | Output Type | Fixed |
| Number of Regulators | 1 | Voltage - Input (Max) | 30V |
| Voltage - Output (Min/Fixed) | 5V | Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 1.2V @ 150mA | Current - Output | 150mA |
| Current - Quiescent (Iq) | 2.05µA | Current - Supply (Max) | 350µA |
| PSRR | 80dB ~ 52dB (10Hz ~ 1kHz) | Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Package / Case | 6-WDFN Exposed Pad |
| Supplier Device Package | 6-SON (2x2) |
