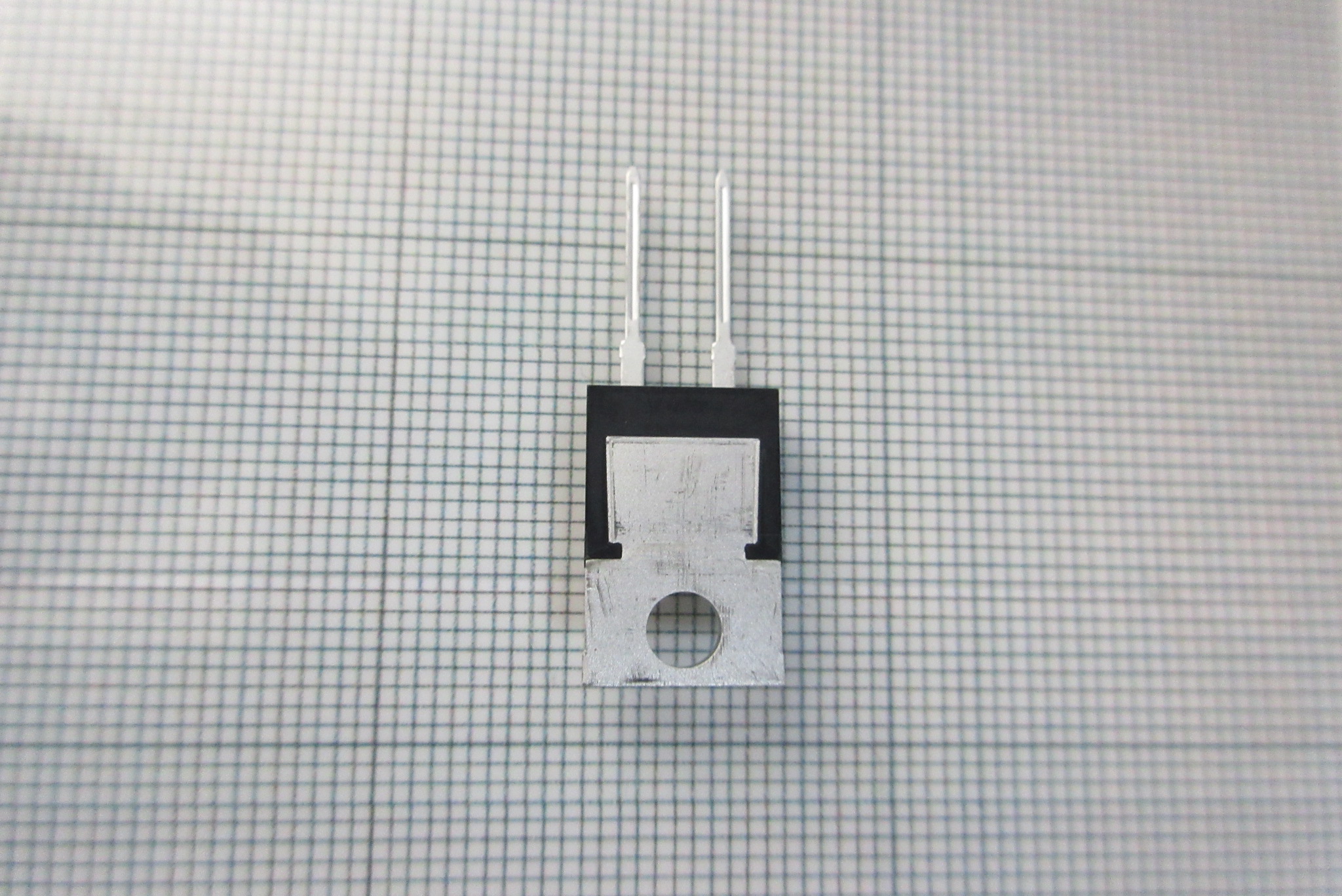

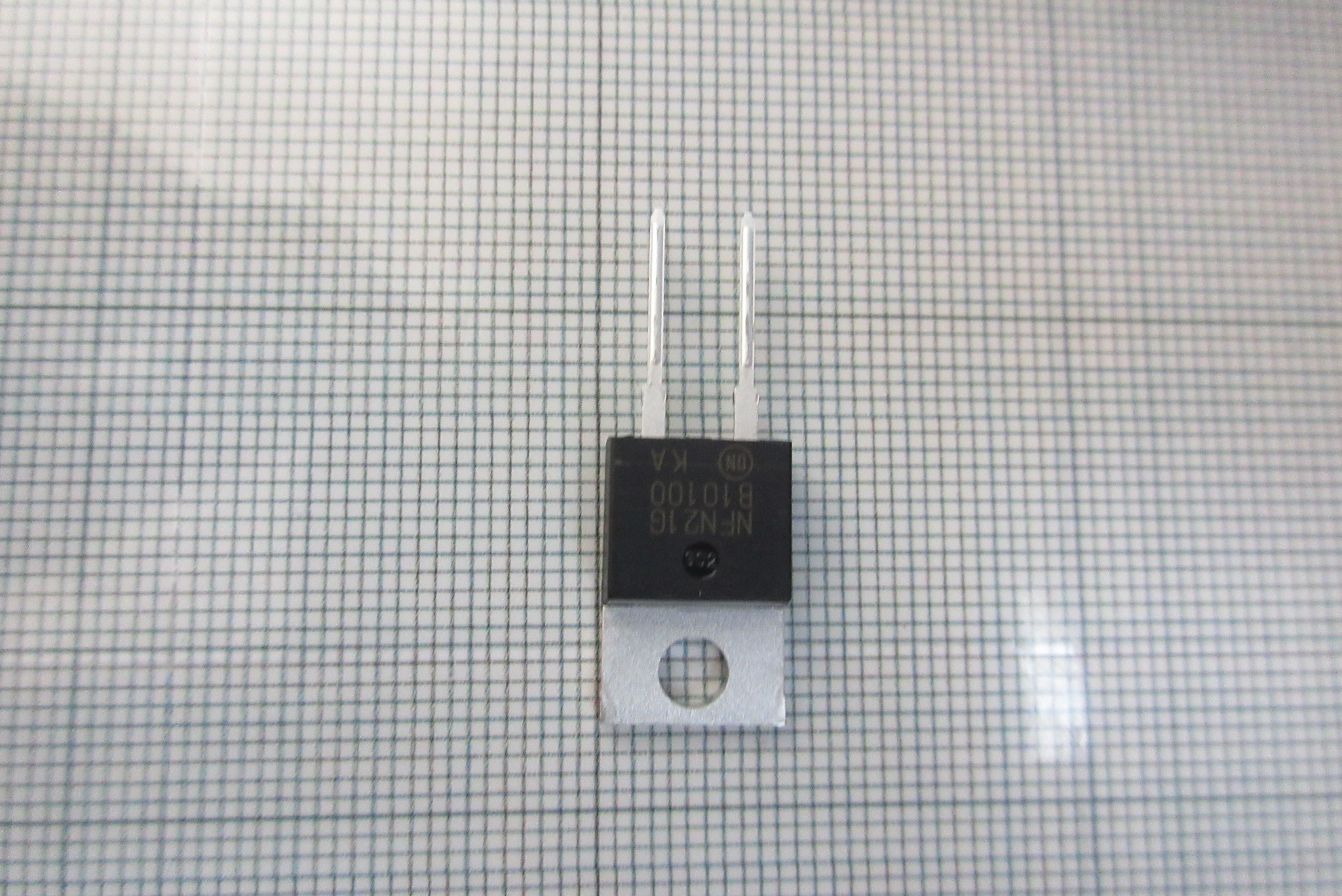

Part No.：MBR10100G
Category：Rectifier
Manufacturer：ON Semiconductor
Date Code：
Package Type：TO220-2
Quantity：50000
Click：11
Update Time：2022-07-06 13:52:39
Description:
| Manufacturer | ON Semiconductor | Manufacturer's Part # | MBR10100G |
|---|---|---|---|
| Categories | Discrete Semiconductor Products | Sub-Categories | Diodes - Rectifiers - Single |
| Series | SWITCHMODE™ | Part Status | Active |
| Diode Type | Schottky | Voltage - DC Reverse (Vr) (Max) | 100V |
| Current - Average Rectified (Io) | 10A | Voltage - Forward (Vf) (Max) @ If | 800mV @ 10A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Reverse Recovery Time (trr) | - |
| Current - Reverse Leakage @ Vr | 100µA @ 100V | Capacitance @ Vr, F | - |
| Mounting Type | Through Hole | Package / Case | TO-220-2 |
| Supplier Device Package | TO-220-2 | Operating Temperature - Junction | -65°C ~ 175°C |
