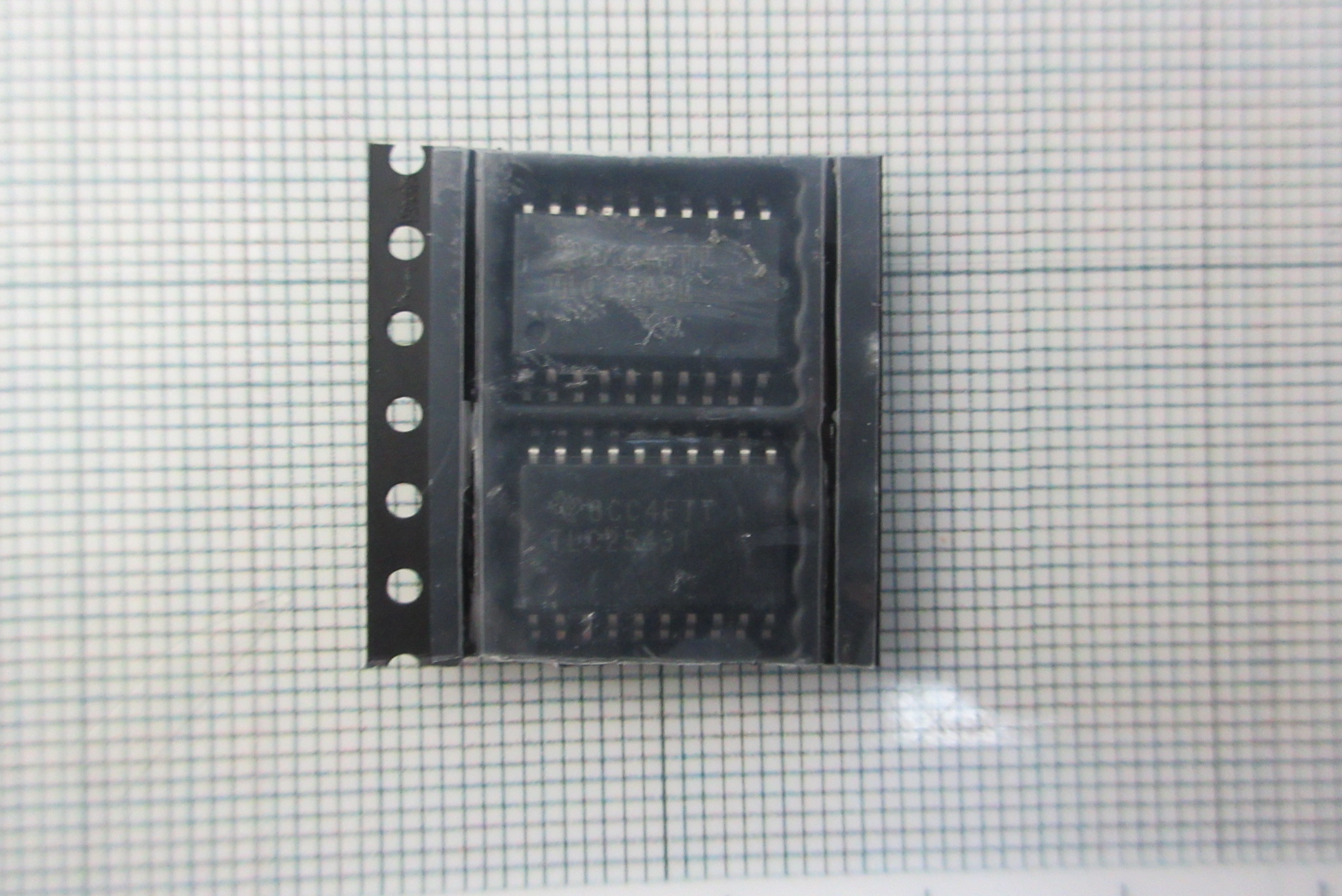

Part No.：TLC2543IDW
Category：Integrated Circuit
Manufacturer：Texas
Date Code：
Package Type：20SOIC
Quantity：50000
Click：42
Update Time：2022-07-07 16:14:32
Description:
| Manufacturer | Texas | Manufacturer's Part # | TLC2543IDW |
|---|---|---|---|
| Categories | Integrated Circuits (ICs) | Sub-Categories | Data Acquisition - Analog to Digital Converters (ADC) |
| Series | - | Part Status | Active |
| Number of Bits | 12 | Sampling Rate (Per Second) | 66k |
| Number of Inputs | 11 | Input Type | Single Ended |
| Data Interface | SPI | Configuration | MUX-S/H-ADC |
| Ratio - S/H:ADC | 1:1 | Number of A/D Converters | 1 |
| Architecture | SAR | Reference Type | External |
| Voltage - Supply, Analog | 5V | Voltage - Supply, Digital | 5V |
| Features | - | Operating Temperature | -40°C ~ 85°C |
| Package / Case | 20-SOIC (0.295", 7.50mm Width) | Supplier Device Package | 20-SOIC |
| Mounting Type | Surface Mount |
