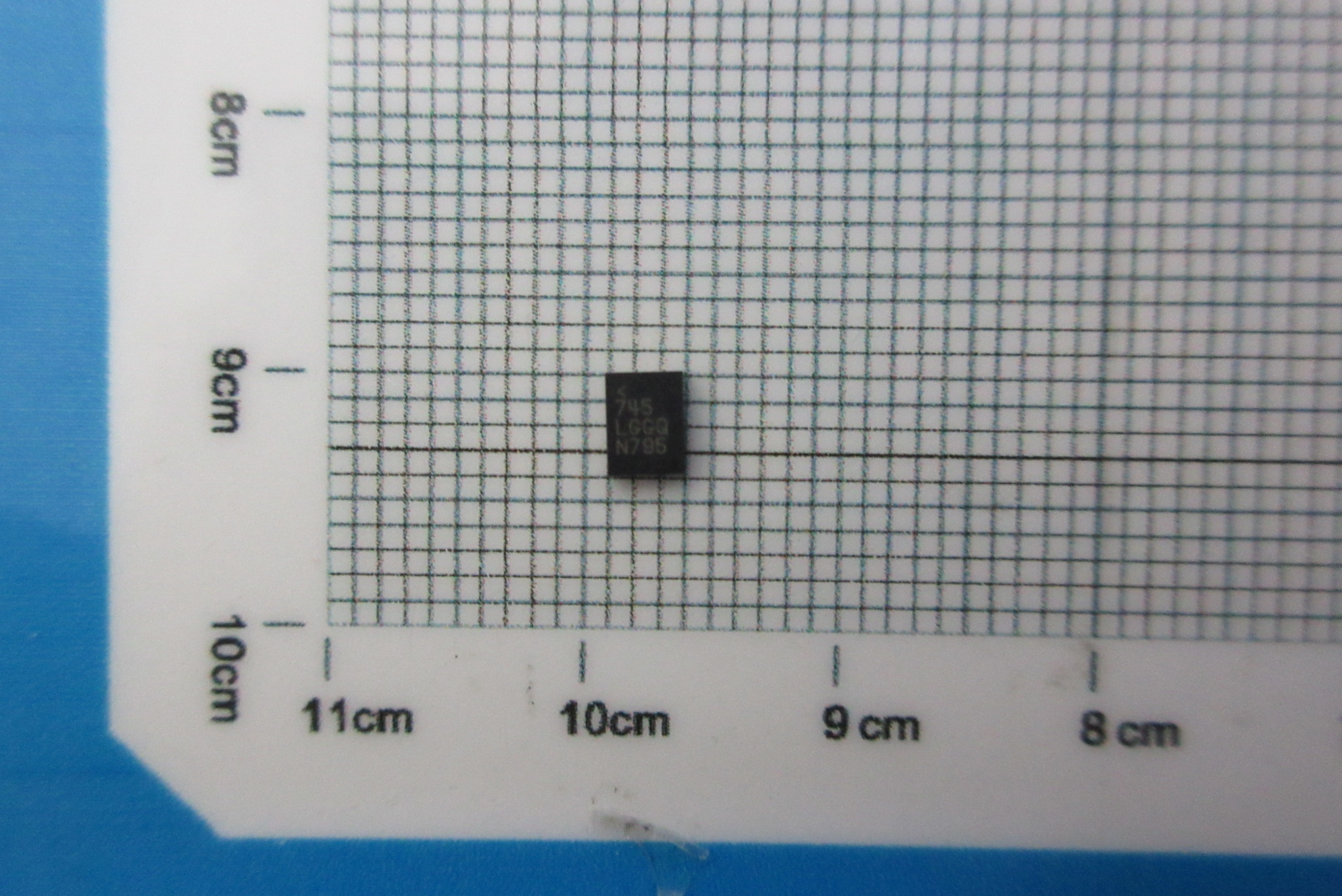

Part No.:LT8614EUDC#PBF
Category:PMIC - Energy Metering
Manufacturer:Analog Devices, Inc
Date Code:
Package Type:18QFN
Quantity:50000
Click:14
Update Time:2022-07-11 10:05:11
Description:
Manufacturer | Analog Devices, Inc. | Manufacturer's Part # | LT8614EUDC#PBF |
---|---|---|---|
Categories | Integrated Circuits (ICs) | Sub-Categories | PMIC - Voltage Regulators - DC DC Switching Regulators |
Series | - | Part Status | Active |
Function | Step-Down | Output Configuration | Positive |
Topology | Buck | Output Type | Adjustable |
Number of Outputs | 1 | Voltage - Input (Min) | 3.4V |
Voltage - Input (Max) | 42V | Voltage - Output (Min/Fixed) | 0.97V |
Voltage - Output (Max) | 41.8V | Current - Output | 4A |
Frequency - Switching | 200kHz ~ 3MHz | Synchronous Rectifier | Yes |
Operating Temperature | -40°C ~ 125°C (TJ) | Mounting Type | Surface Mount |
Package / Case | 20-WFQFN, 18 Leads, Exposed Pad | Supplier Device Package | 20-QFN (3x4) |
