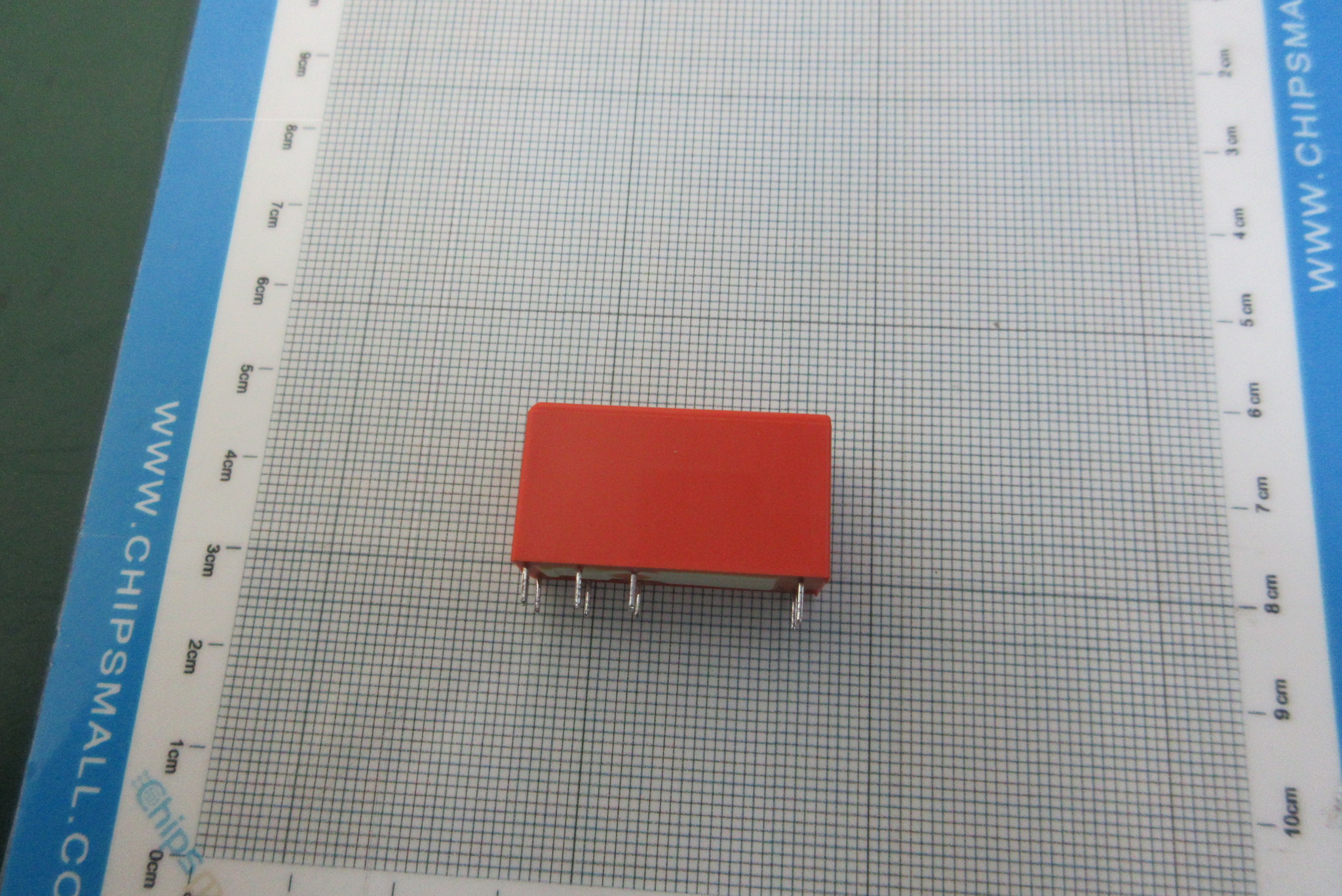

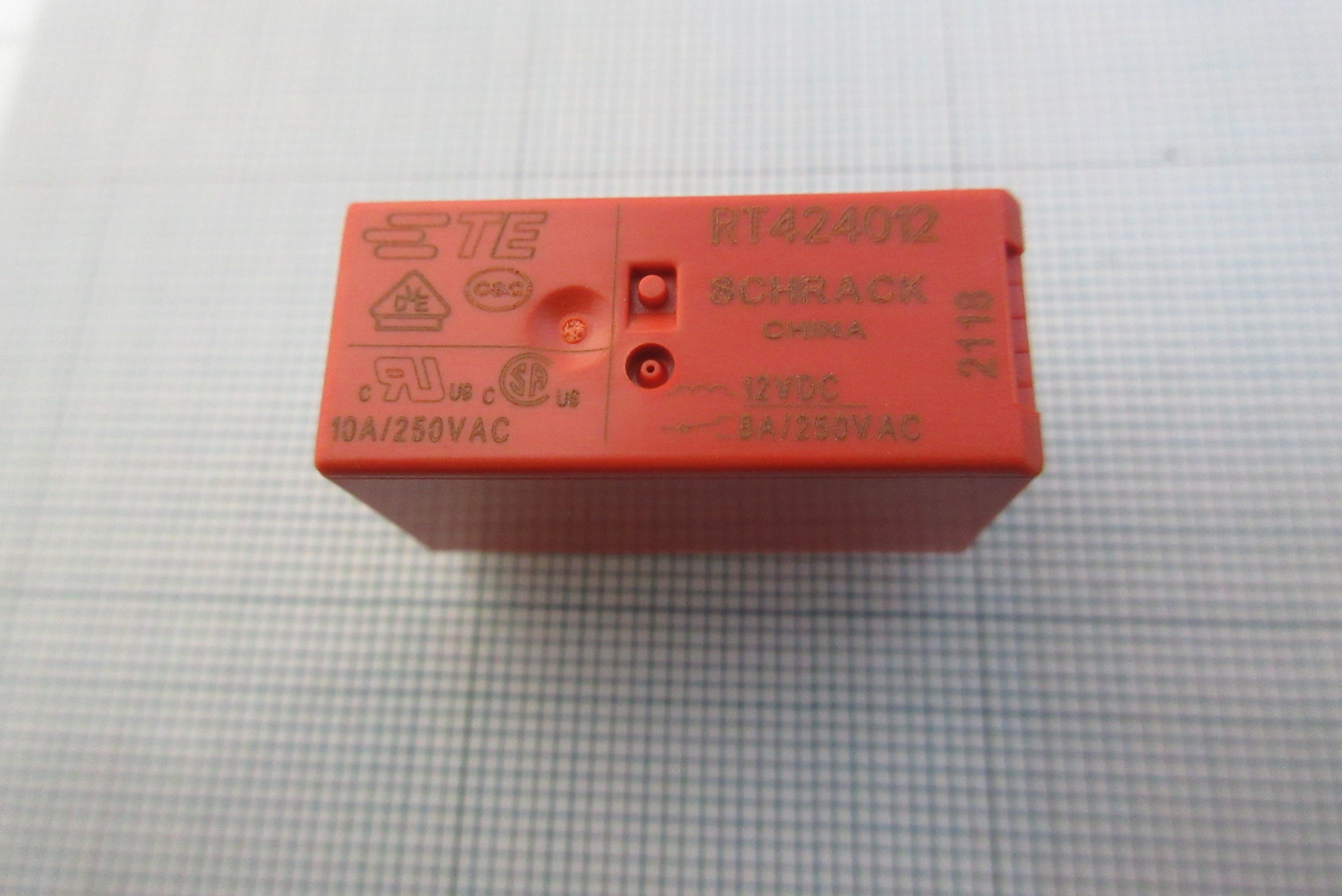

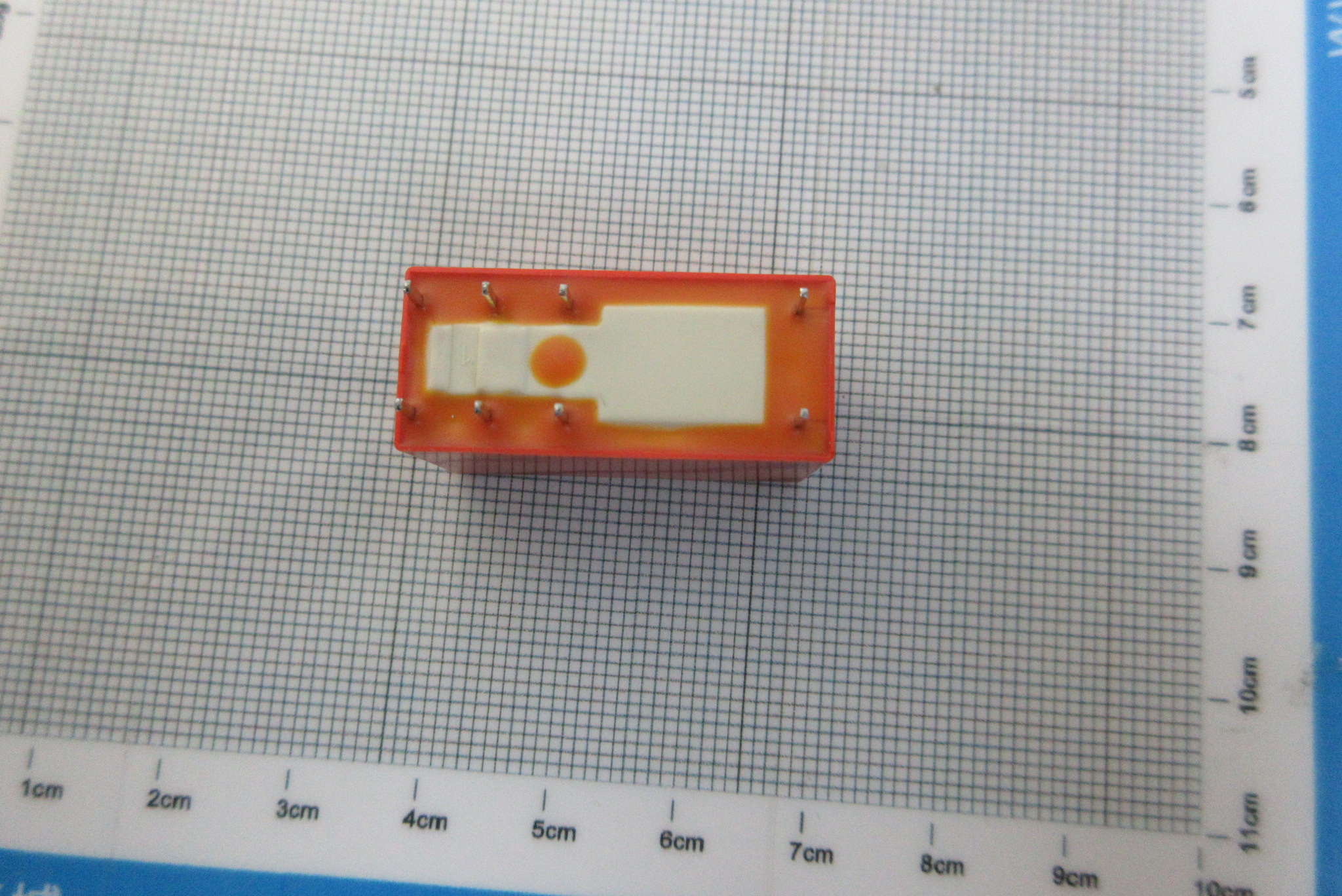

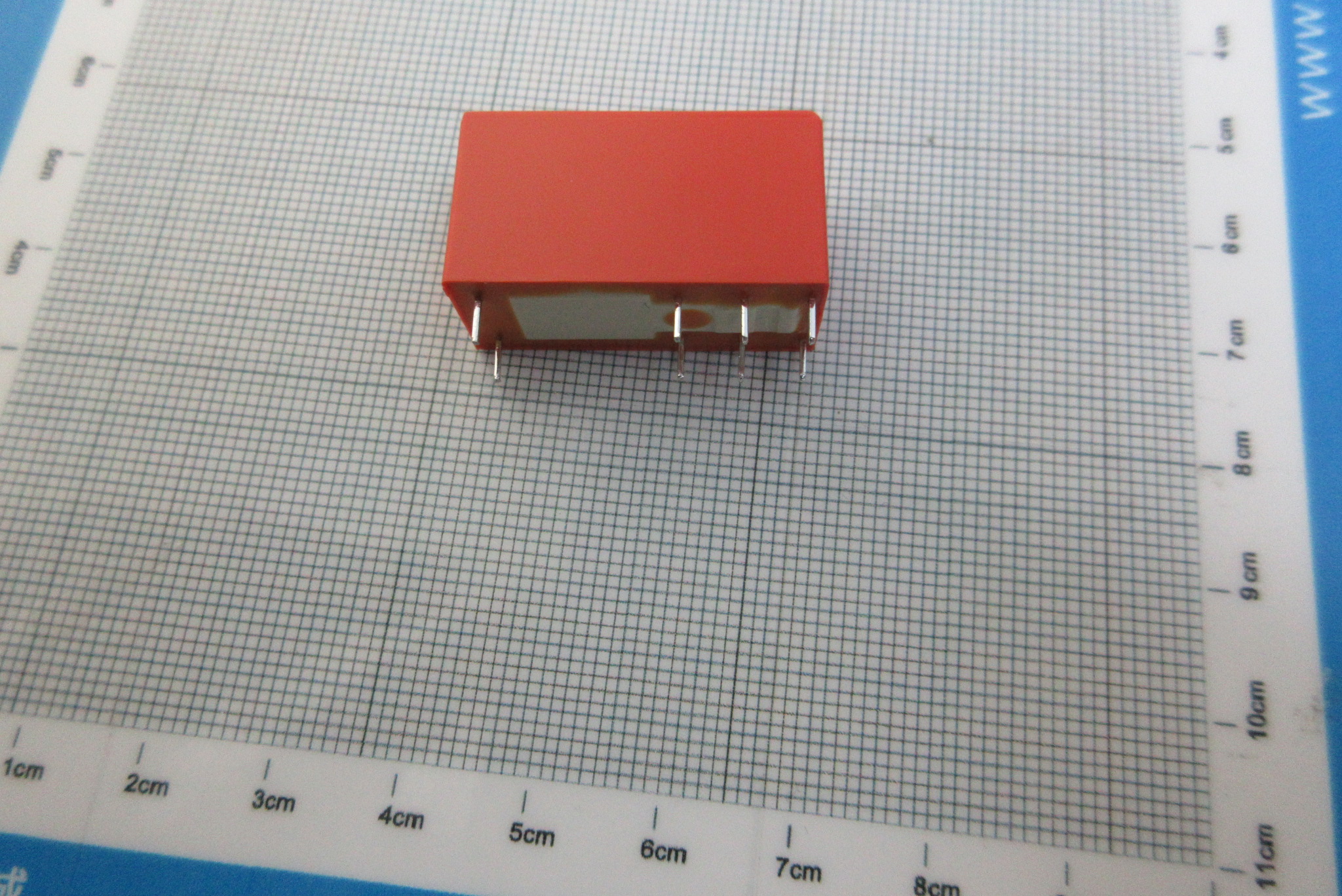

Part No.：RT424012
Category：Relays
Manufacturer：TE Connectivity
Date Code：
Package Type：DIP-8
Quantity：50000
Click：41
Update Time：2022-07-11 10:59:03
Description:
| Manufacturer | TE Connectivity | Manufacturer's Part # | RT424012 |
|---|---|---|---|
| Categories | Relays | Sub-Categories | Power Relays, Over 2 Amps |
| Series | RT2, SCHRACK | Part Status | Active |
| Mounting Type | Through Hole | Coil Voltage | 12VDC |
| Contact Form | DPDT (2 Form C) | Contact Rating (Current) | 8A |
| Switching Voltage | 400VAC - Max | Coil Current | 33.3mA |
| Coil Type | Non Latching | Features | Insulation - Class F, Sealed - Flux Protection |
| Termination Style | PC Pin | Must Operate Voltage | 8.4 VDC |
| Must Release Voltage | 1.2 VDC | Operate Time | 8ms |
| Release Time | 6ms | Operating Temperature | -40°C ~ 85°C |
| Contact Material | Silver Nickel (AgNi) | Relay Type | General Purpose |
