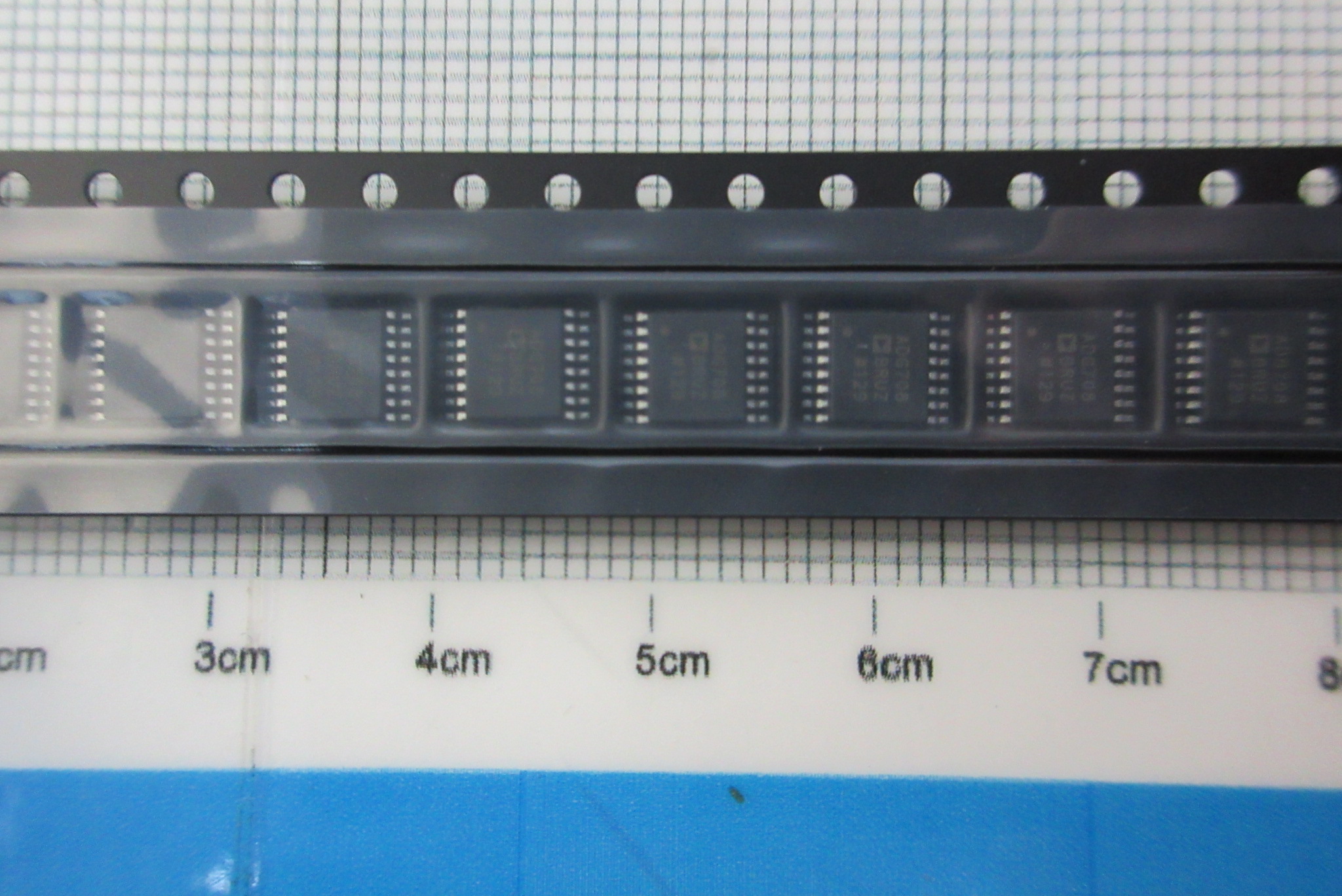

Part No.：ADG708BRUZ-REEL7
Category：Interface
Manufacturer：Analog Devices, Inc
Date Code：
Package Type：16TSSOP
Quantity：50000
Click：32
Update Time：2022-07-12 10:24:44
Description:
| Manufacturer | Analog Devices, Inc. | Manufacturer's Part # | ADG708BRUZ-REEL7 |
|---|---|---|---|
| Categories | Integrated Circuits (ICs) | Sub-Categories | Interface - Analog Switches, Multiplexers, Demultiplexers |
| Series | - | Part Status | Active |
| Switch Circuit | - | Multiplexer/Demultiplexer Circuit | 8:1 |
| Number of Circuits | 1 | On-State Resistance (Max) | 4.5 Ohm |
| Channel-to-Channel Matching (ΔRon) | 400 mOhm | Voltage - Supply, Single (V+) | 1.8V ~ 5.5V |
| Voltage - Supply, Dual (V±) | ±2.5V | Switch Time (Ton, Toff) (Max) | 14ns, 8ns (Typ) |
| -3db Bandwidth | 55MHz | Charge Injection | 3pC |
| Channel Capacitance (CS(off), CD(off)) | 13pF, 85pF | Current - Leakage (IS(off)) (Max) | 10pA (Typ) |
| Crosstalk | -80dB @ 1MHz | Operating Temperature | -40°C ~ 125°C (TA) |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) | Supplier Device Package | 16-TSSOP |
