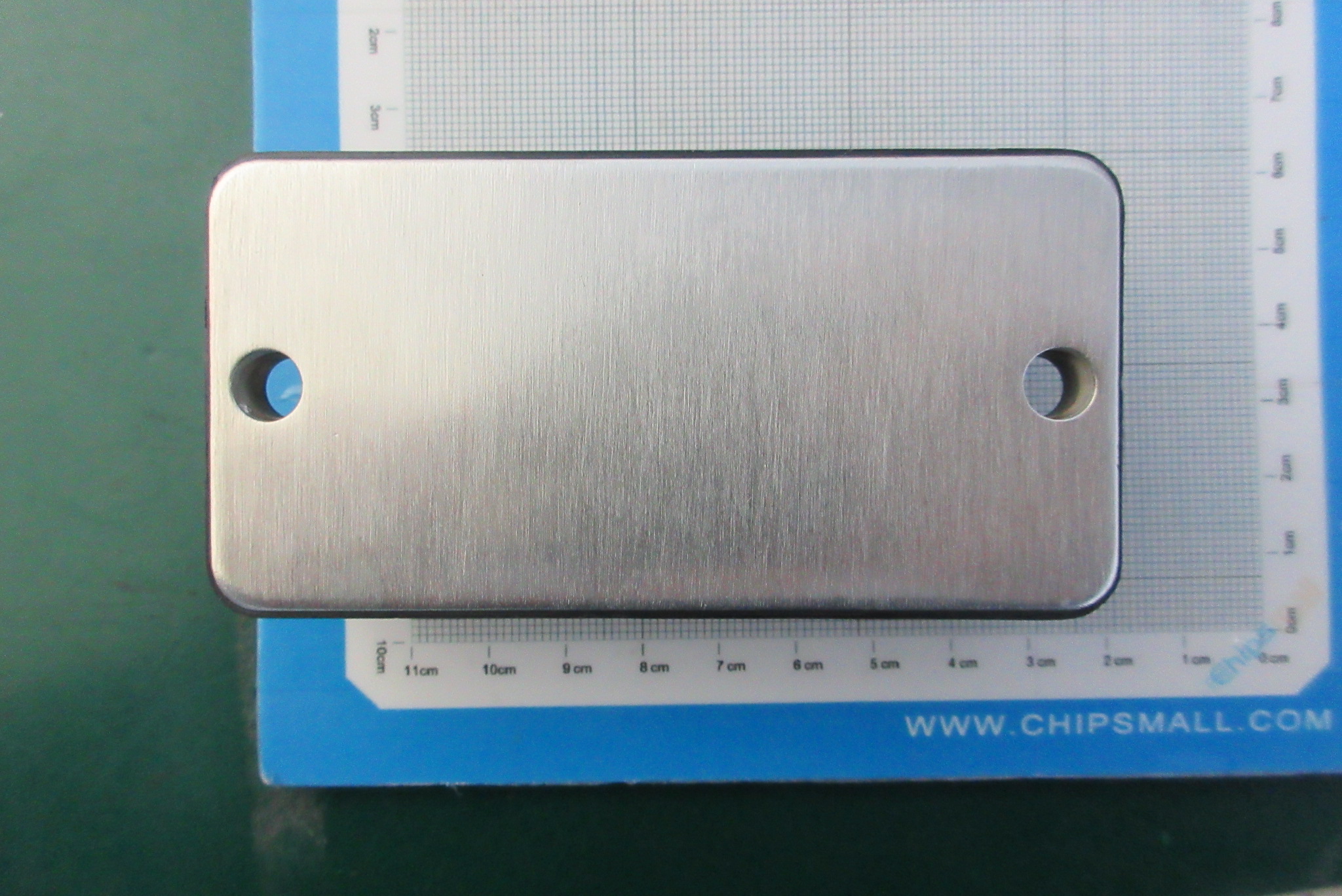

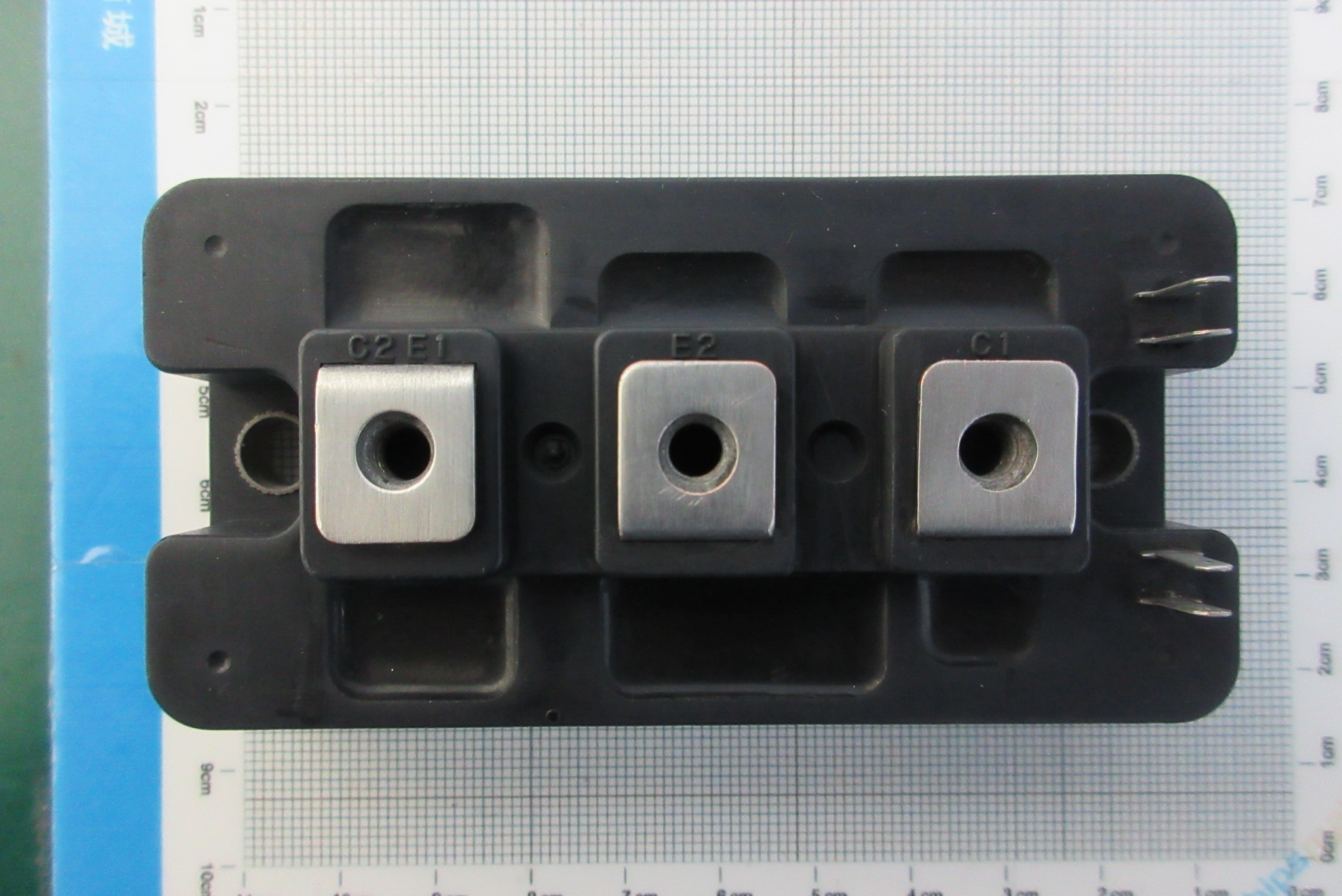

Part No.：CM150DY-24H
Category：Diodes/Transistors
Manufacturer：Powerex, Inc
Date Code：
Package Type：-
Quantity：50000
Click：30
Update Time：2022-07-12 17:22:19
Description:
| Manufacturer | Powerex, Inc. | Manufacturer's Part # | CM150DY-24H |
|---|---|---|---|
| Categories | Discrete Semiconductor Products | Sub-Categories | Transistors - IGBTs - Modules |
| Series | IGBTMOD™ | Part Status | Obsolete |
| IGBT Type | - | Configuration | Half Bridge |
| Voltage - Collector Emitter Breakdown (Max) | 1200V | Current - Collector (Ic) (Max) | 150A |
| Power - Max | 1100W | Vce(on) (Max) @ Vge, Ic | 3.4V @ 15V, 150A |
| Current - Collector Cutoff (Max) | 1mA | Input Capacitance (Cies) @ Vce | 30nF @ 10V |
| Input | Standard | NTC Thermistor | No |
| Operating Temperature | -40°C ~ 150°C (TJ) | Mounting Type | Chassis Mount |
| Package / Case | Module | Supplier Device Package | Module |
