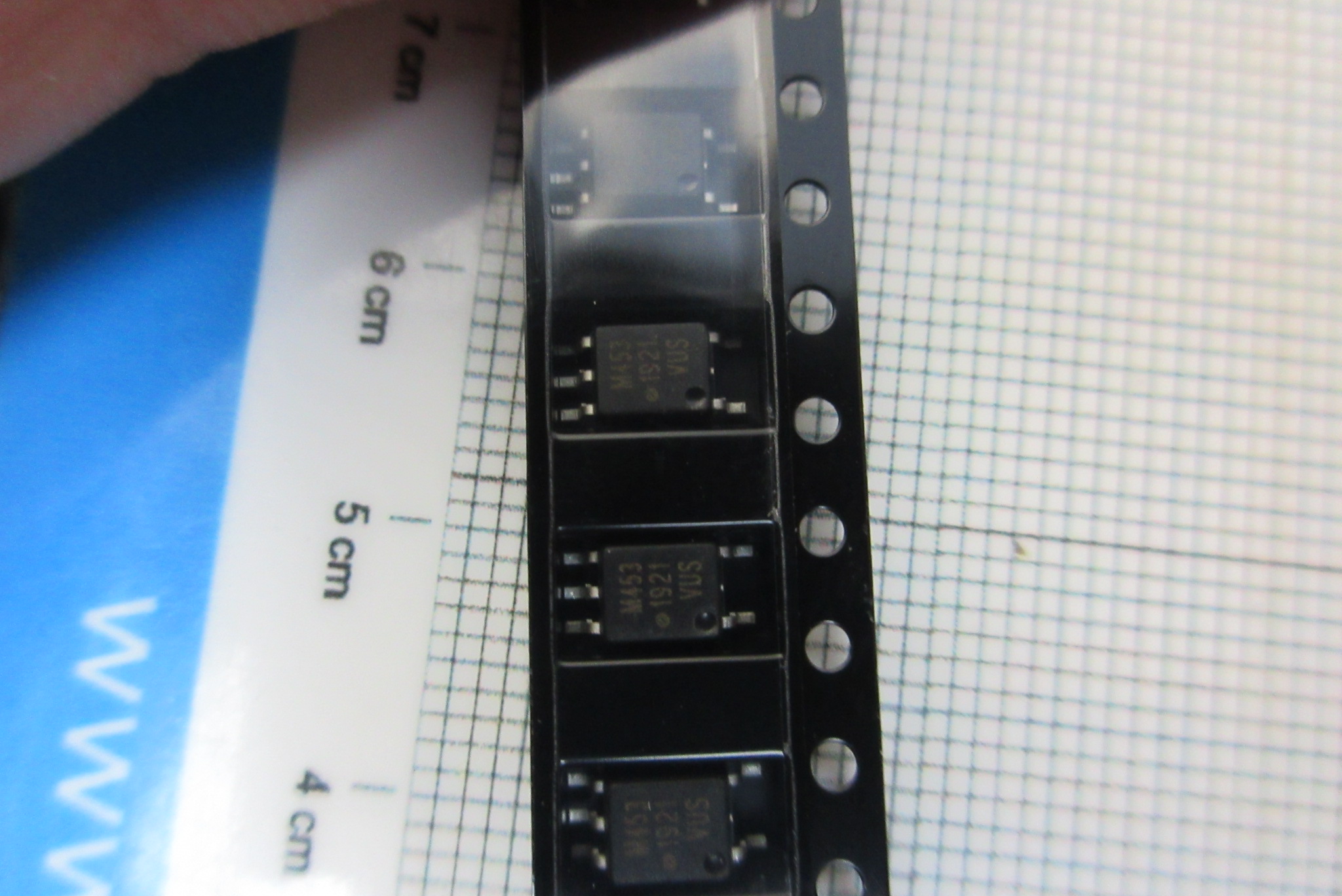

Part No.：HCPL-M453-500E
Category：Diodes/Transistors
Manufacturer：Broadcom Limited
Date Code：
Package Type：6SOIC
Quantity：50000
Click：17
Update Time：2022-07-13 13:58:48
Description:
| Manufacturer | Broadcom Limited | Manufacturer's Part # | HCPL-M453-500E |
|---|---|---|---|
| Categories | Isolators | Sub-Categories | Optoisolators - Transistor, Photovoltaic Output |
| Series | - | Part Status | Active |
| Number of Channels | 1 | Voltage - Isolation | 3750Vrms |
| Current Transfer Ratio (Min) | 20% @ 16mA | Current Transfer Ratio (Max) | 50% @ 16mA |
| Turn On / Turn Off Time (Typ) | 200ns, 600ns | Rise / Fall Time (Typ) | - |
| Input Type | DC | Output Type | Transistor |
| Voltage - Output (Max) | 20V | Current - Output / Channel | 8mA |
| Voltage - Forward (Vf) (Typ) | 1.5V | Current - DC Forward (If) (Max) | 25mA |
| Vce Saturation (Max) | - | Operating Temperature | -55°C ~ 100°C |
| Mounting Type | Surface Mount | Package / Case | 6-SOIC (0.173", 4.40mm Width), 5 Leads |
| Supplier Device Package | 5-SO |
