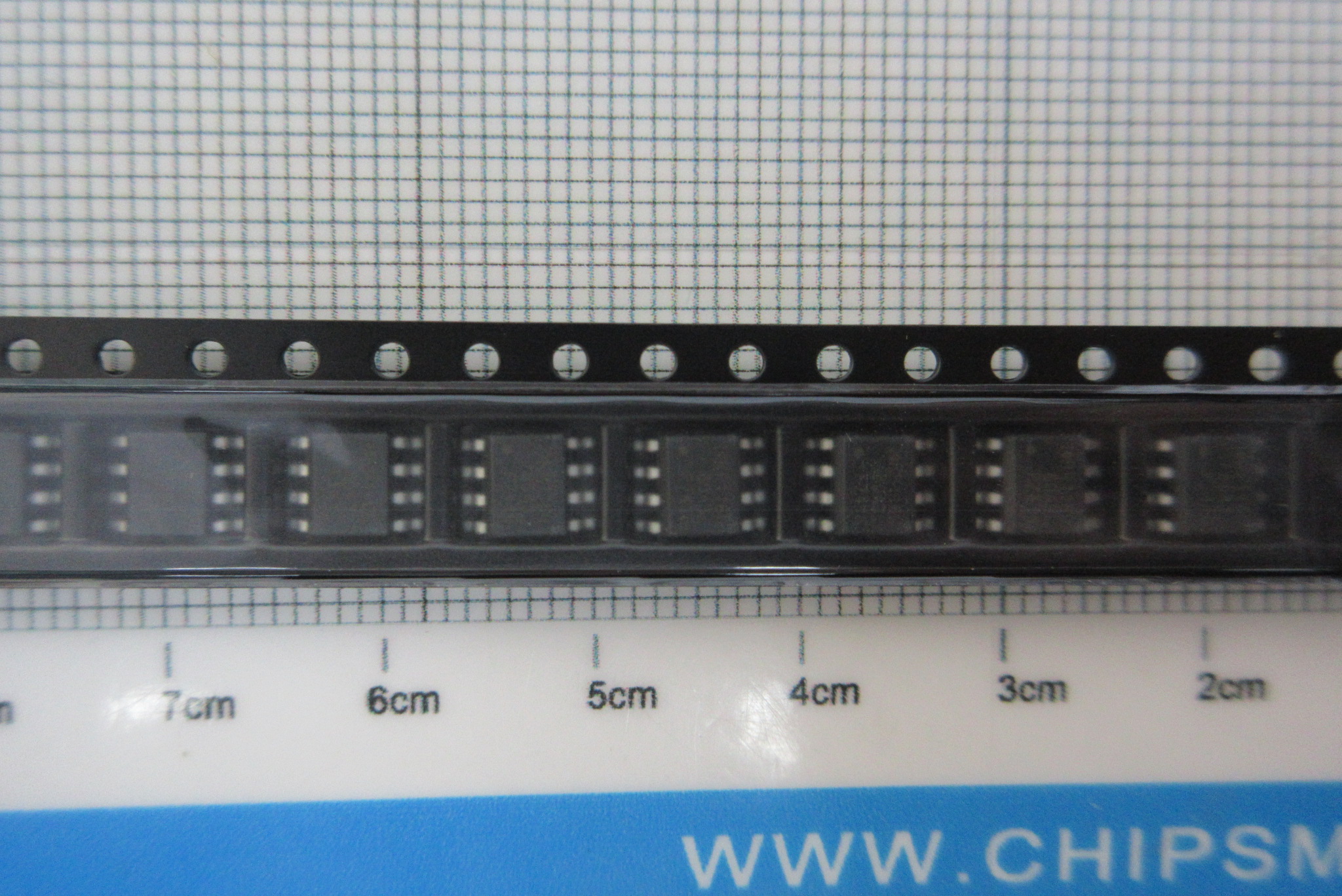

Part No.：IRF7416TRPBF
Category：Fixed Inductors
Manufacturer：Infineon Technologies
Date Code：
Package Type：8-SOIC
Quantity：50000
Click：5
Update Time：2022-07-13 14:06:55
Description:
| Manufacturer | Infineon Technologies | Manufacturer's Part # | IRF7416TRPBF |
|---|---|---|---|
| Categories | Discrete Semiconductor Products | Sub-Categories | Transistors - FETs, MOSFETs - Single |
| Series | HEXFET® | Part Status | Active |
| FET Type | P-Channel | Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30V | Current - Continuous Drain (Id) @ 25°C | 10A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | Rds On (Max) @ Id, Vgs | 20 mOhm @ 5.6A, 10V |
| Vgs(th) (Max) @ Id | 1V @ 250µA | Gate Charge (Qg) (Max) @ Vgs | 92nC @ 10V |
| Vgs (Max) | ±20V | Input Capacitance (Ciss) (Max) @ Vds | 1700pF @ 25V |
| FET Feature | - | Power Dissipation (Max) | 2.5W (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) | Mounting Type | Surface Mount |
| Supplier Device Package | 8-SO | Package / Case | 8-SOIC (0.154", 3.90mm Width) |
