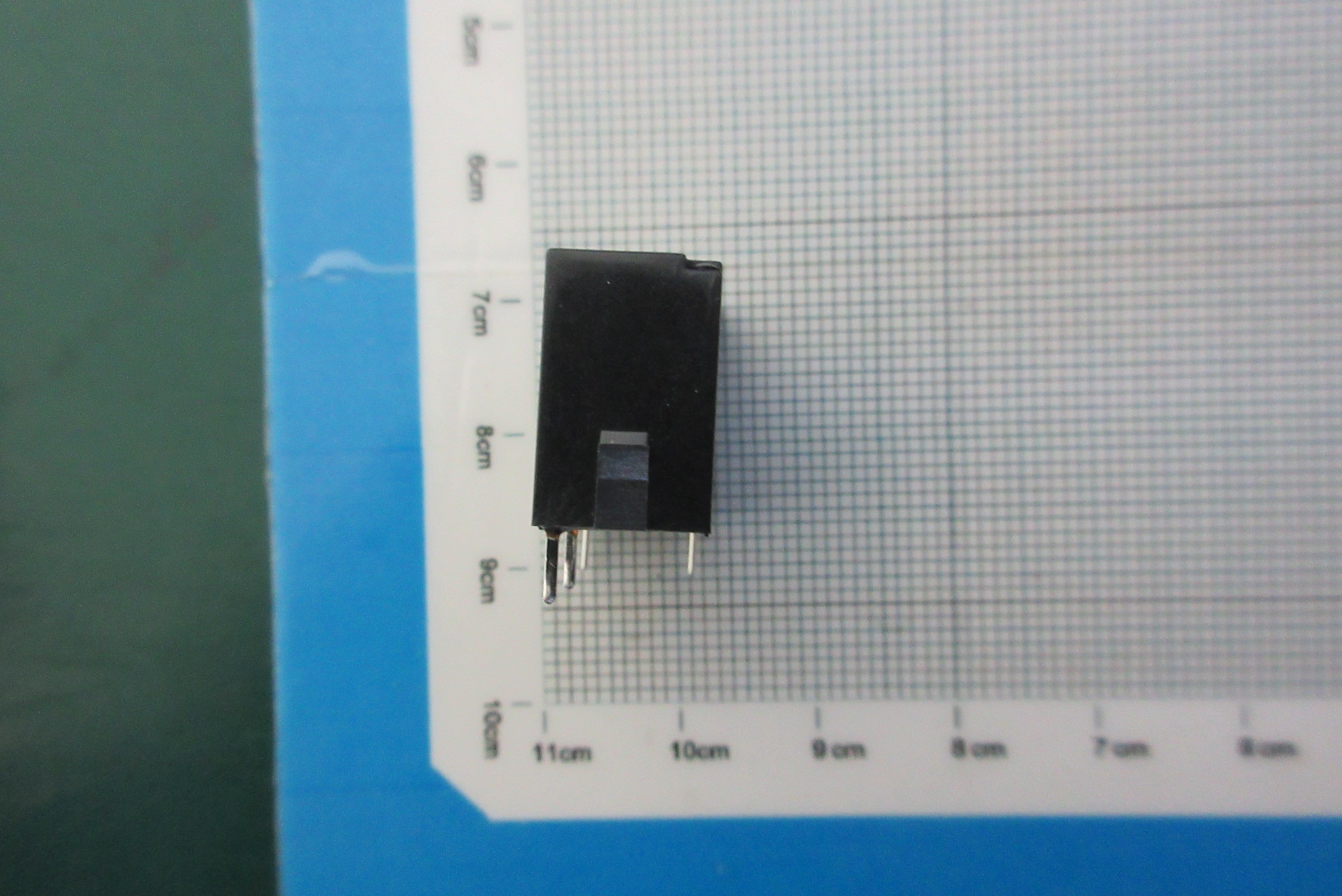

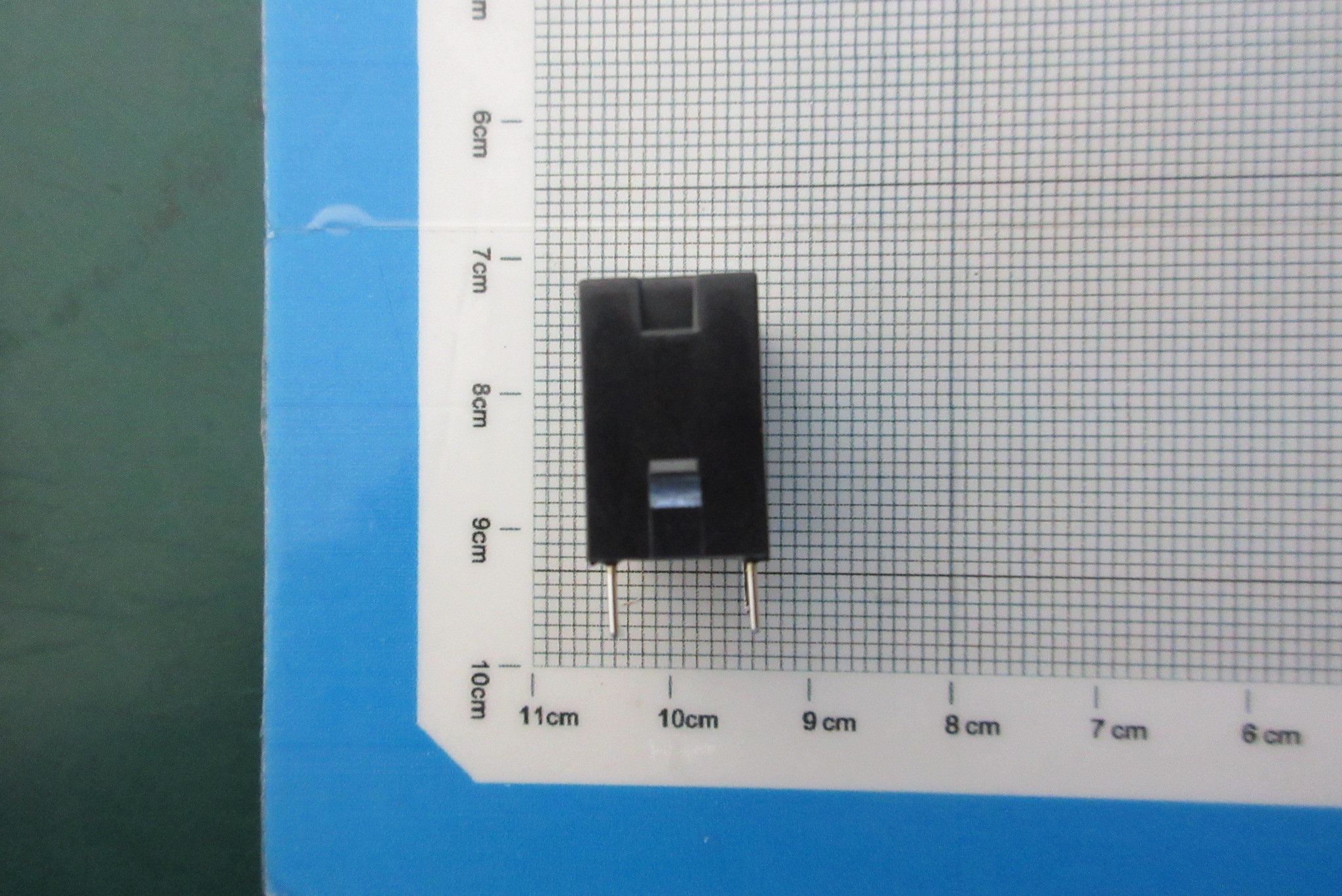

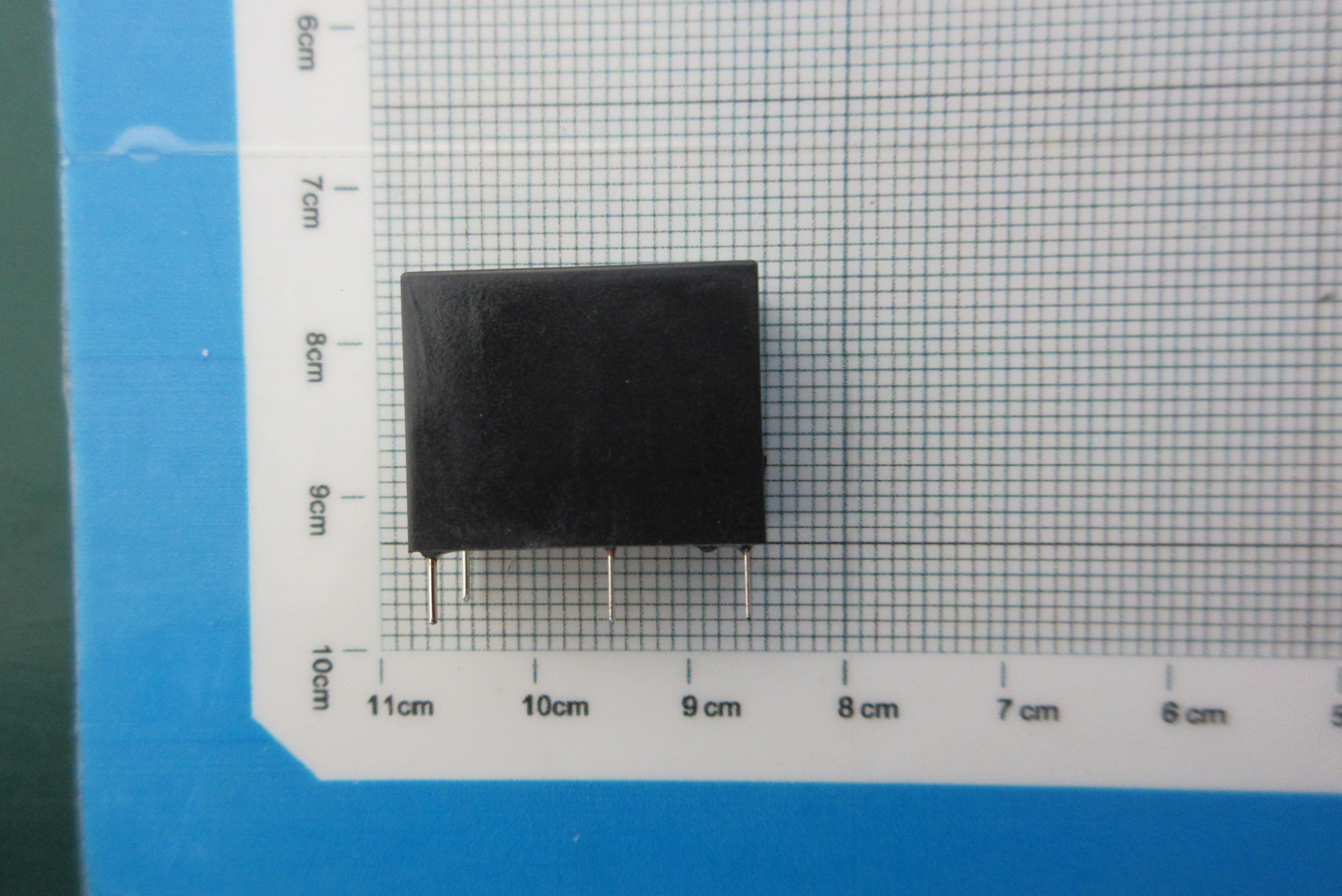

Part No.：JQ1AP-12V-F
Category：Relays
Manufacturer：Panasonic
Date Code：
Package Type：DIP-4
Quantity：50000
Click：41
Update Time：2022-07-13 14:45:42
Description:
| Manufacturer | Panasonic | Manufacturer's Part # | JQ1AP-12V-F |
|---|---|---|---|
| Categories | Relays | Sub-Categories | Power Relays, Over 2 Amps |
| Series | JQ | Part Status | Obsolete |
| Mounting Type | Through Hole | Coil Voltage | 12VDC |
| Contact Form | SPST-NO (1 Form A) | Contact Rating (Current) | 10A |
| Switching Voltage | 250VAC, 110VDC - Max | Coil Current | 16.7mA |
| Coil Type | Non Latching | Features | Insulation - Class E |
| Termination Style | PC Pin | Must Operate Voltage | 9.6 VDC |
| Must Release Voltage | 0.6 VDC | Operate Time | 20ms |
| Release Time | 10ms | Operating Temperature | -40°C ~ 70°C |
| Contact Material | Silver Tin Oxide (AgSnO) | Relay Type | General Purpose |
