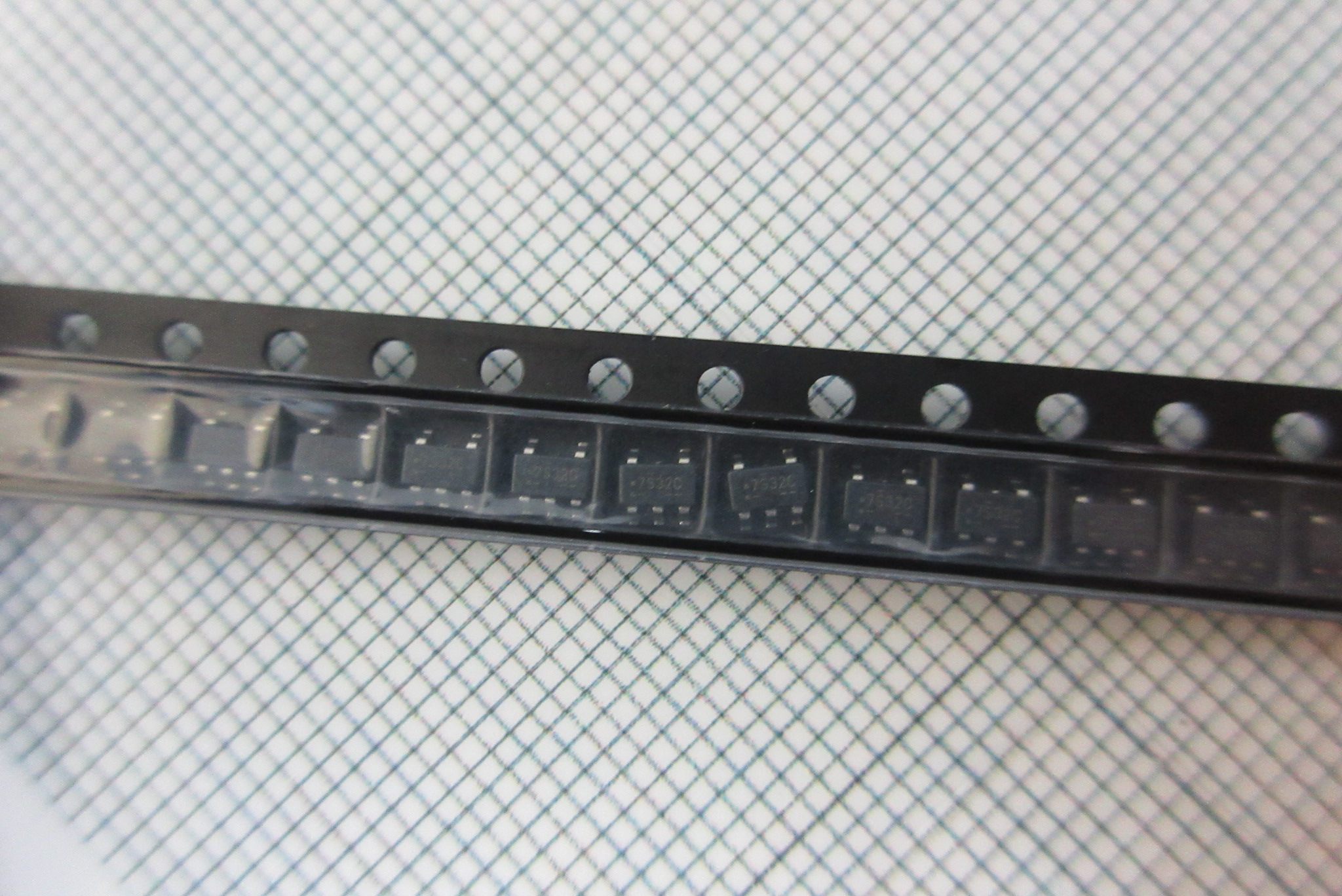

Part No.：NC7S32M5X
Category：Logic
Manufacturer：ON Semiconductor
Date Code：
Package Type：SOT23-5
Quantity：50000
Click：32
Update Time：2022-07-15 14:40:42
Description:
| Manufacturer | ON Semiconductor | Manufacturer's Part # | NC7S32M5X |
|---|---|---|---|
| Categories | Integrated Circuits (ICs) | Sub-Categories | Logic - Gates and Inverters |
| Series | 7S | Part Status | Active |
| Logic Type | OR Gate | Number of Circuits | 1 |
| Number of Inputs | 2 | Features | - |
| Voltage - Supply | 2V ~ 6V | Current - Quiescent (Max) | 1µA |
| Current - Output High, Low | 2.6mA, 2.6mA | Logic Level - Low | 0.5V |
| Logic Level - High | 1.5V | Max Propagation Delay @ V, Max CL | 17ns @ 6V, 50pF |
| Operating Temperature | -40°C ~ 85°C | Mounting Type | Surface Mount |
| Supplier Device Package | SOT-23-5 | Package / Case | SC-74A, SOT-753 |
