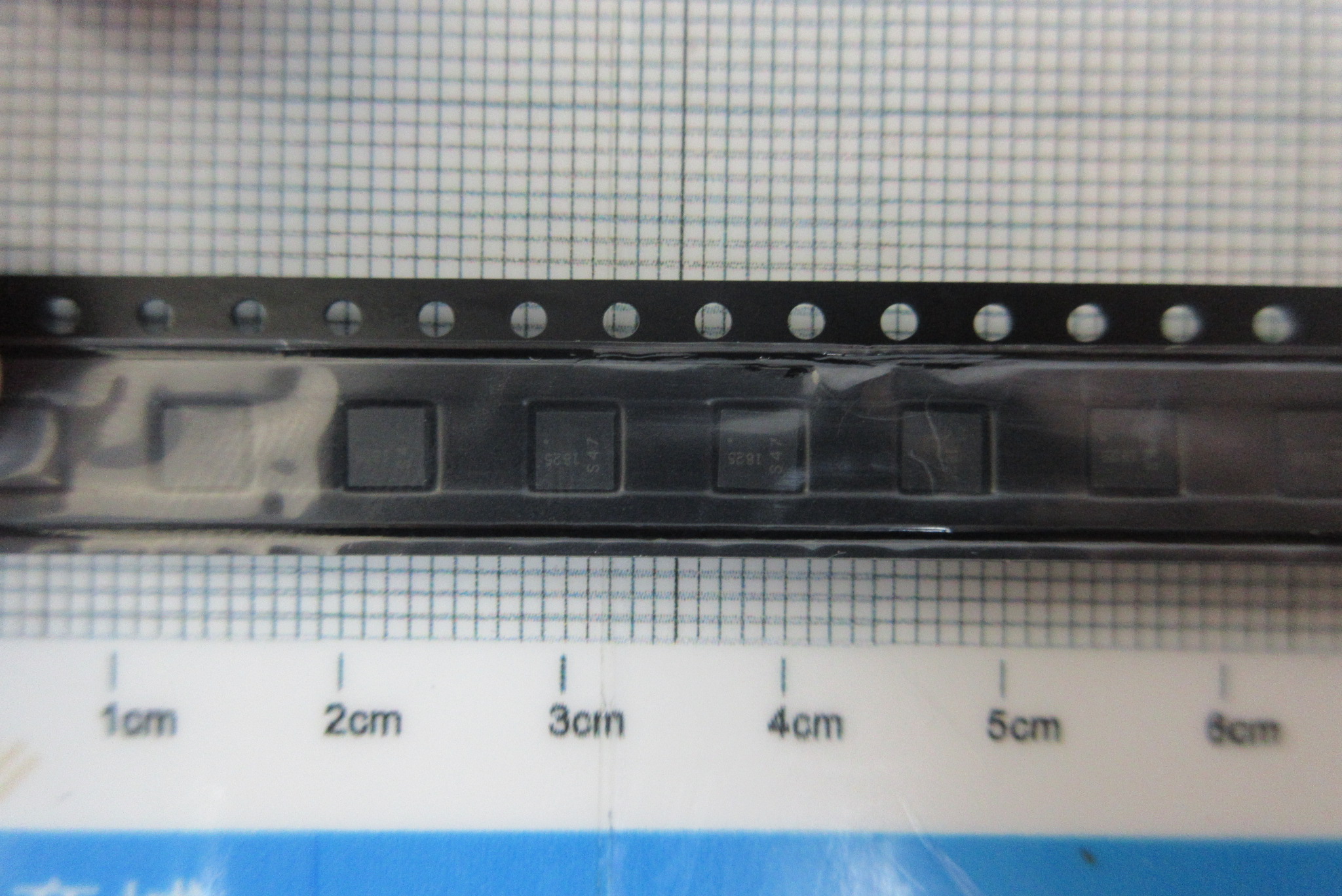

Part No.：DMP2006UFG-7
Category： FETS
Manufacturer：Diodes Incorporated
Date Code：
Package Type：8-PowerWDFN
Quantity：50000
Click：5
Update Time：2022-07-18 13:47:56
Description:
| Manufacturer | Diodes Incorporated | Manufacturer's Part # | DMP2006UFG-7 |
|---|---|---|---|
| Categories | Discrete Semiconductor Products | Sub-Categories | Transistors - FETs, MOSFETs - Single |
| Series | - | Part Status | Active |
| FET Type | P-Channel | Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20V | Current - Continuous Drain (Id) @ 25°C | 17.5A (Ta), 40A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.5V, 4.5V | Rds On (Max) @ Id, Vgs | 5.2 mOhm @ 15A, 4.5V |
| Vgs(th) (Max) @ Id | 1V @ 250µA | Gate Charge (Qg) (Max) @ Vgs | 140nC @ 10V |
| Vgs (Max) | ±10V | Input Capacitance (Ciss) (Max) @ Vds | 5404pF @ 10V |
| FET Feature | - | Power Dissipation (Max) | 2.3W (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) | Mounting Type | Surface Mount |
| Supplier Device Package | PowerDI3333-8 | Package / Case | 8-PowerWDFN |
