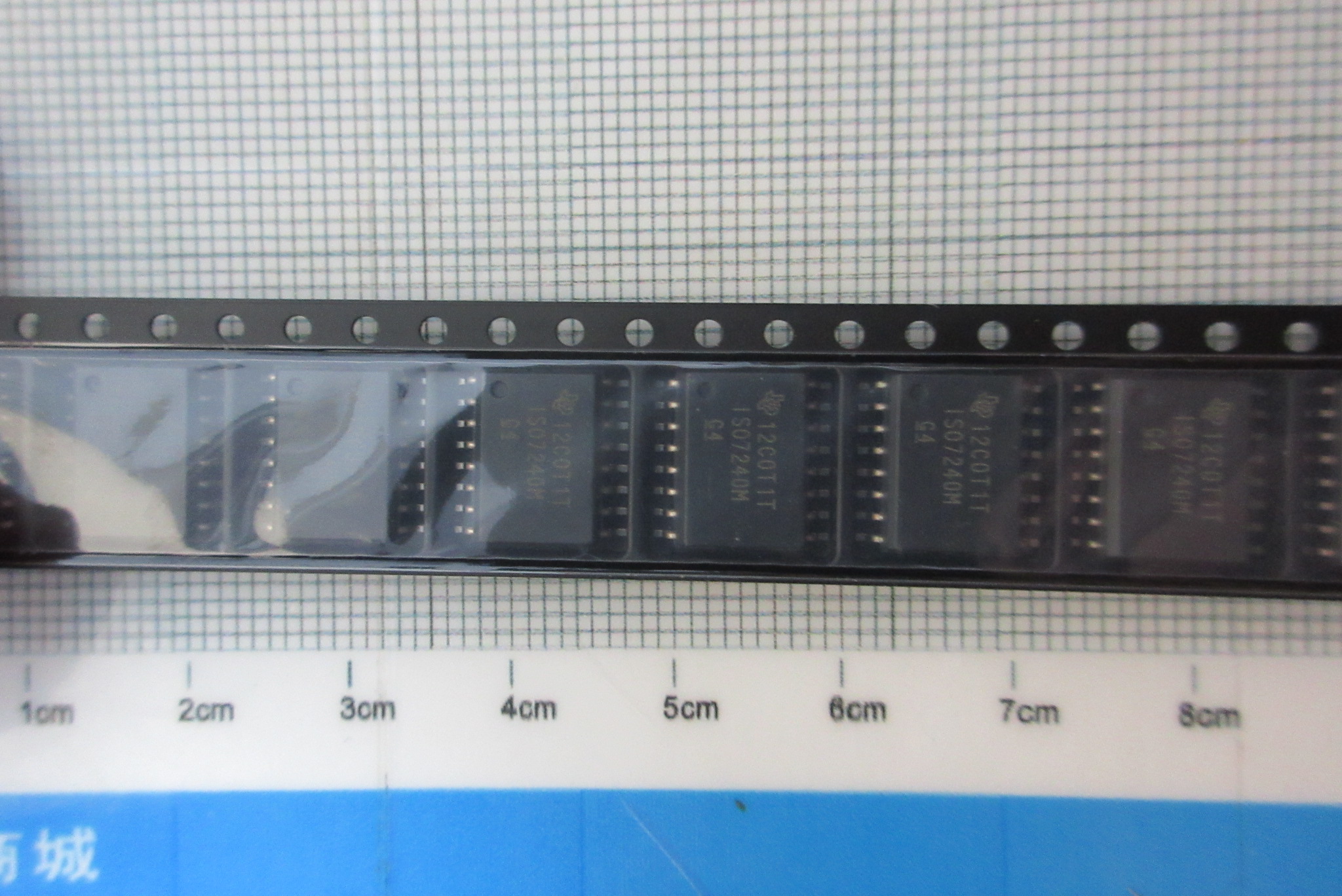

Part No.：ISO7240MDWR
Category：Isolator
Manufacturer：Texas
Date Code：
Package Type：16SOIC
Quantity：50000
Click：27
Update Time：2022-07-18 14:18:31
Description:
| Manufacturer | Texas | Manufacturer's Part # | ISO7240MDWR |
|---|---|---|---|
| Categories | Isolators | Sub-Categories | Digital Isolators |
| Series | - | Part Status | Active |
| Technology | Capacitive Coupling | Type | General Purpose |
| Isolated Power | No | Number of Channels | 4 |
| Inputs - Side 1/Side 2 | 4/0 | Channel Type | Unidirectional |
| Voltage - Isolation | 2500Vrms | Common Mode Transient Immunity (Min) | 25kV/µs |
| Data Rate | 150Mbps | Propagation Delay tpLH / tpHL (Max) | 23ns, 23ns |
| Pulse Width Distortion (Max) | 2ns | Rise / Fall Time (Typ) | 2ns, 2ns |
| Voltage - Supply | 3.15V ~ 5.5V | Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Package / Case | 16-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 16-SOIC |
