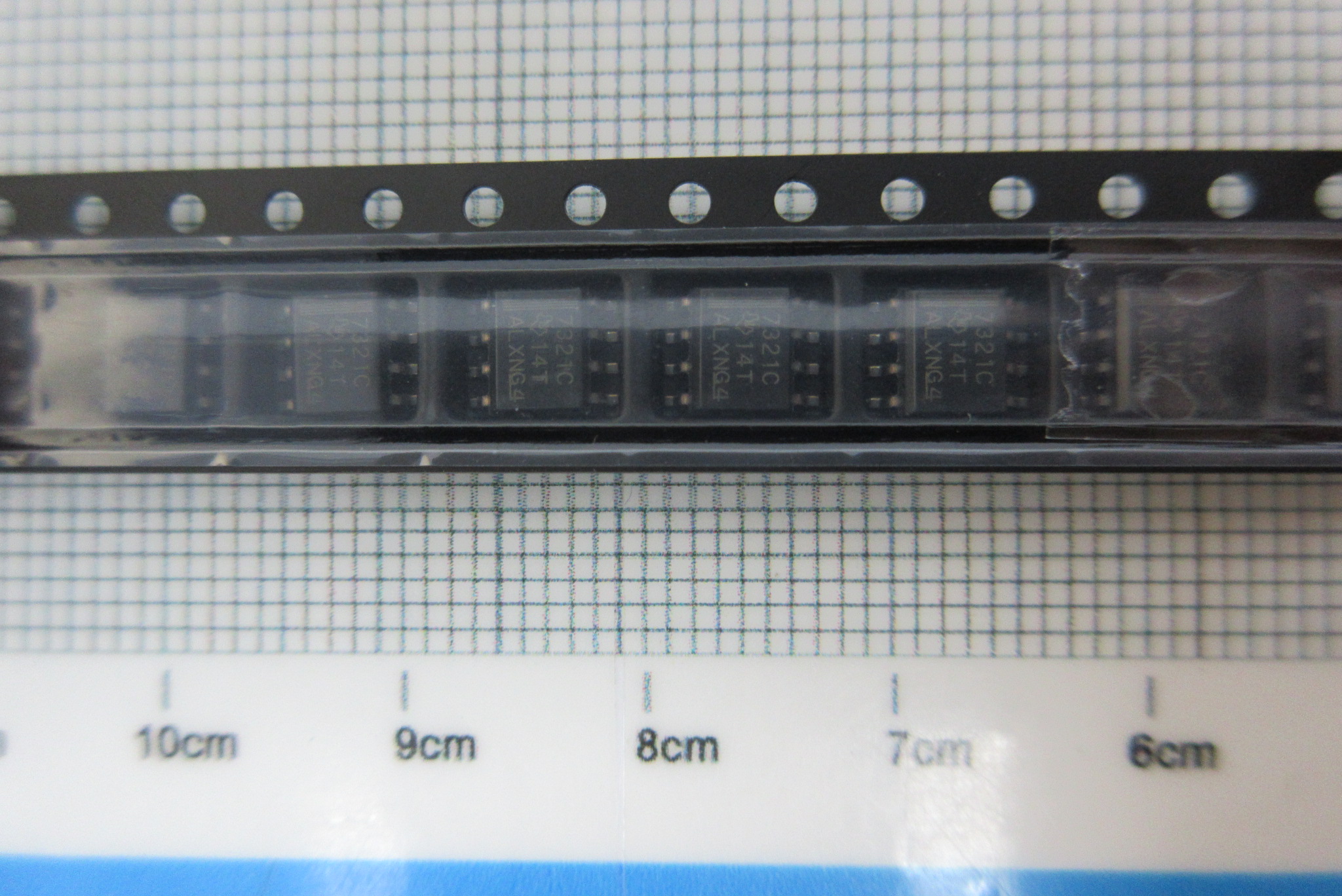

Part No.：ISO7321CD
Category：Isolator
Manufacturer：Texas
Date Code：
Package Type：8SOIC
Quantity：50000
Click：9
Update Time：2022-07-18 14:22:21
Description:
| Manufacturer | Texas | Manufacturer's Part # | ISO7321CD |
|---|---|---|---|
| Categories | Isolators | Sub-Categories | Digital Isolators |
| Series | - | Part Status | Active |
| Technology | Capacitive Coupling | Type | General Purpose |
| Isolated Power | No | Number of Channels | 2 |
| Inputs - Side 1/Side 2 | 1/1 | Channel Type | Unidirectional |
| Voltage - Isolation | 3000Vrms | Common Mode Transient Immunity (Min) | 25kV/µs |
| Data Rate | 25Mbps | Propagation Delay tpLH / tpHL (Max) | 57ns, 57ns |
| Pulse Width Distortion (Max) | 4ns | Rise / Fall Time (Typ) | 2.4ns, 2.1ns |
| Voltage - Supply | 3V ~ 5.5V | Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
