Part No.：
Category：Integrated Circuit
Manufacturer：
Date Code：
Package Type：
Quantity：
Click：6
Update Time：2022-08-27 15:40:44
Description:

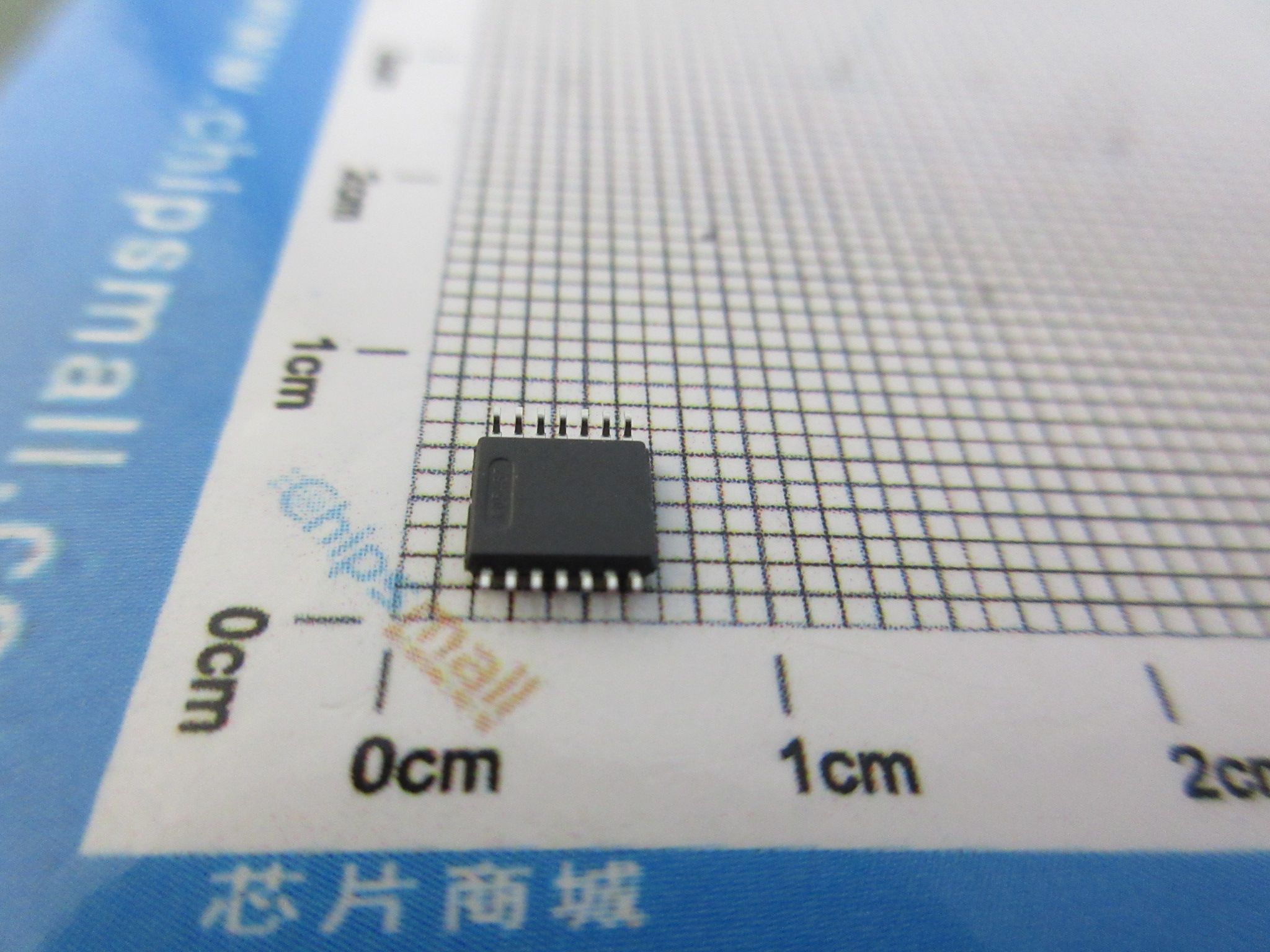

| Manufacturer | Texas | Manufacturer's Part # | SN74AC14PWRG4 |
|---|---|---|---|
| Categories | Integrated Circuits (ICs) | Sub-Categories | Logic - Gates and Inverters |
| Series | 74AC | Part Status | Active |
| Logic Type | Inverter | Number of Circuits | 6 |
| Number of Inputs | 6 | Features | Schmitt Trigger |
| Voltage - Supply | 2V ~ 6V | Current - Quiescent (Max) | 2µA |
| Current - Output High, Low | 24mA, 24mA | Logic Level - Low | 0.5V ~ 1.1V |
| Logic Level - High | 2.2V ~ 3.9V | Max Propagation Delay @ V, Max CL | 10ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 85°C | Mounting Type | Surface Mount |
| Supplier Device Package | 14-TSSOP | Package / Case | 14-TSSOP (0.173", 4.40mm Width) |
