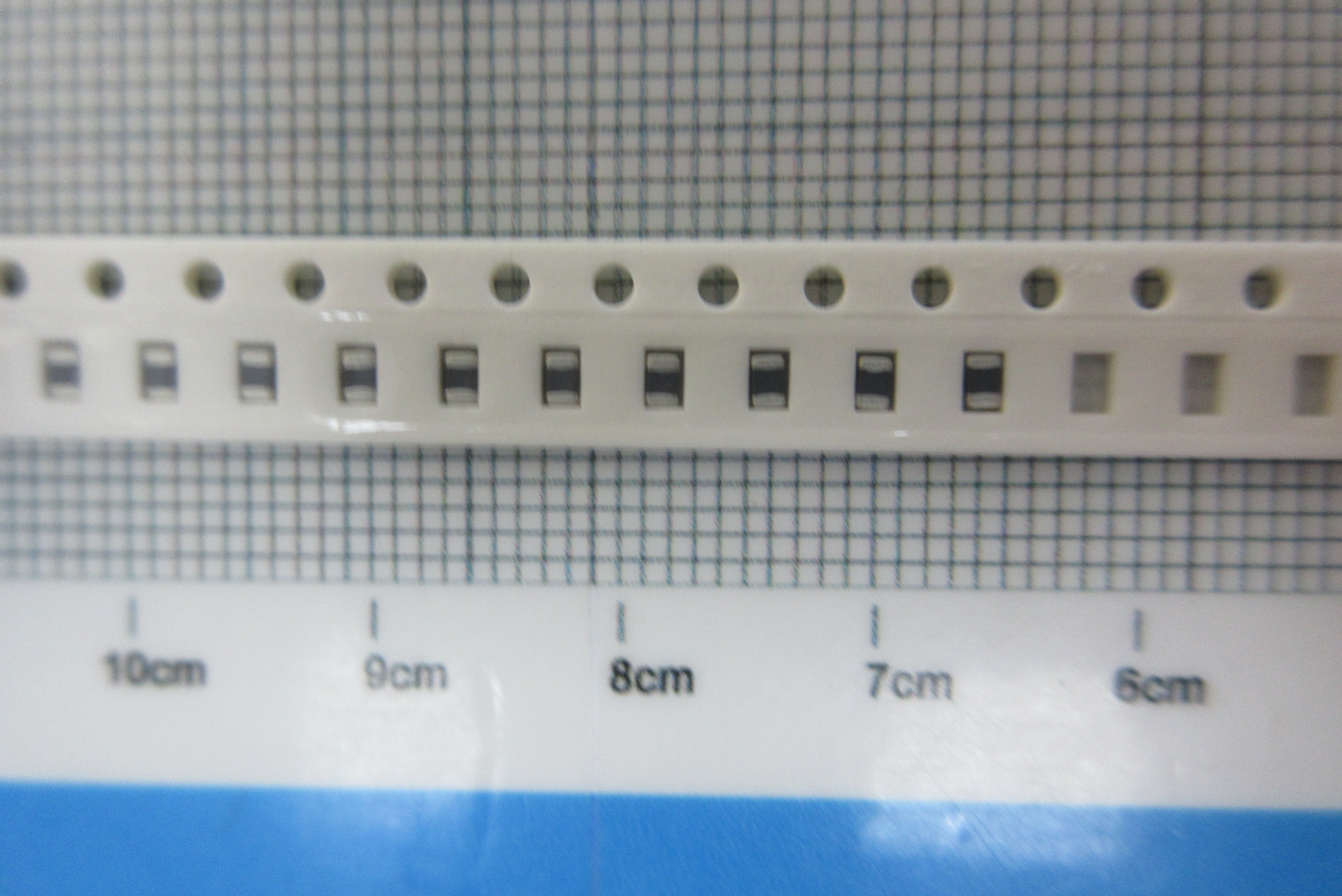

Part No.：MPZ2012S102AT000
Category：Filters
Manufacturer：TDK Corporation
Date Code：
Package Type：0805
Quantity：50000
Click：28
Update Time：2022-07-19 11:16:55
Description:
| Manufacturer | TDK Corporation | Manufacturer's Part # | MPZ2012S102AT000 |
|---|---|---|---|
| Categories | Filters | Sub-Categories | Ferrite Beads and Chips |
| Series | MPZ | Part Status | Active |
| Filter Type | Power Line | Number of Lines | 1 |
| Impedance @ Frequency | 1 kOhms @ 100MHz | Current Rating (Max) | 1.5A |
| DC Resistance (DCR) (Max) | 150 mOhm | Ratings | - |
| Operating Temperature | -55°C ~ 125°C | Package / Case | 0805 (2012 Metric) |
| Mounting Type | Surface Mount | Height (Max) | 0.041" (1.05mm) |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) | Features | - |
