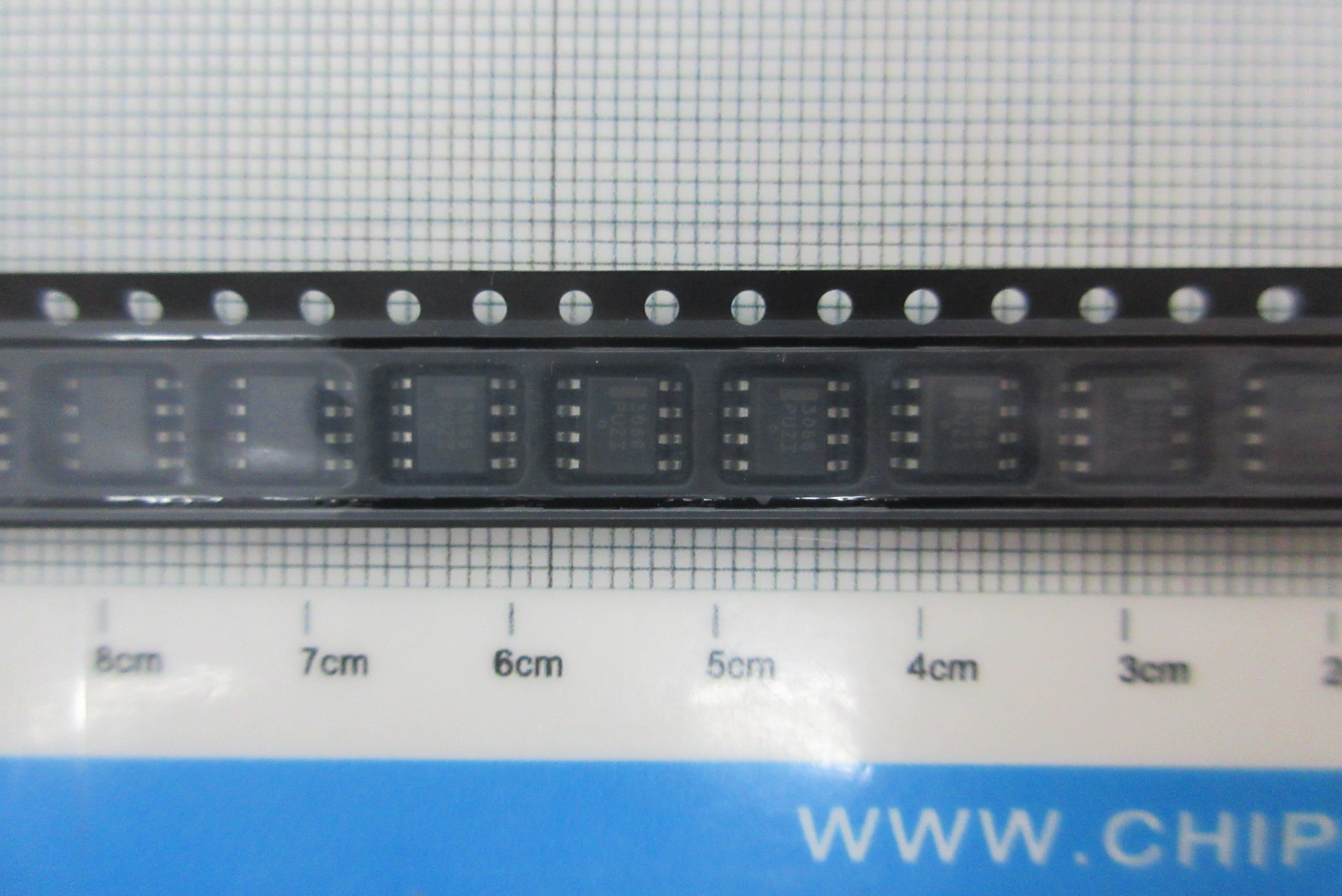

Part No.：NCP3066DR2G
Category：PMIC - Energy Metering
Manufacturer：ON Semiconductor
Date Code：
Package Type：8SOIC
Quantity：50000
Click：38
Update Time：2022-07-19 11:42:47
Description:
| Manufacturer | ON Semiconductor | Manufacturer's Part # | NCP3066DR2G |
|---|---|---|---|
| Categories | Integrated Circuits (ICs) | Sub-Categories | PMIC - LED Drivers |
| Series | - | Part Status | Active |
| Type | DC DC Regulator | Topology | Step-Down (Buck), Step-Up (Boost) |
| Internal Switch(s) | Yes | Number of Outputs | 1 |
| Voltage - Supply (Min) | 3V | Voltage - Supply (Max) | 40V |
| Voltage - Output | - | Current - Output / Channel | 1.5A (Switch) |
| Frequency | 150kHz | Dimming | Analog, PWM |
| Applications | Lighting | Operating Temperature | 0°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
