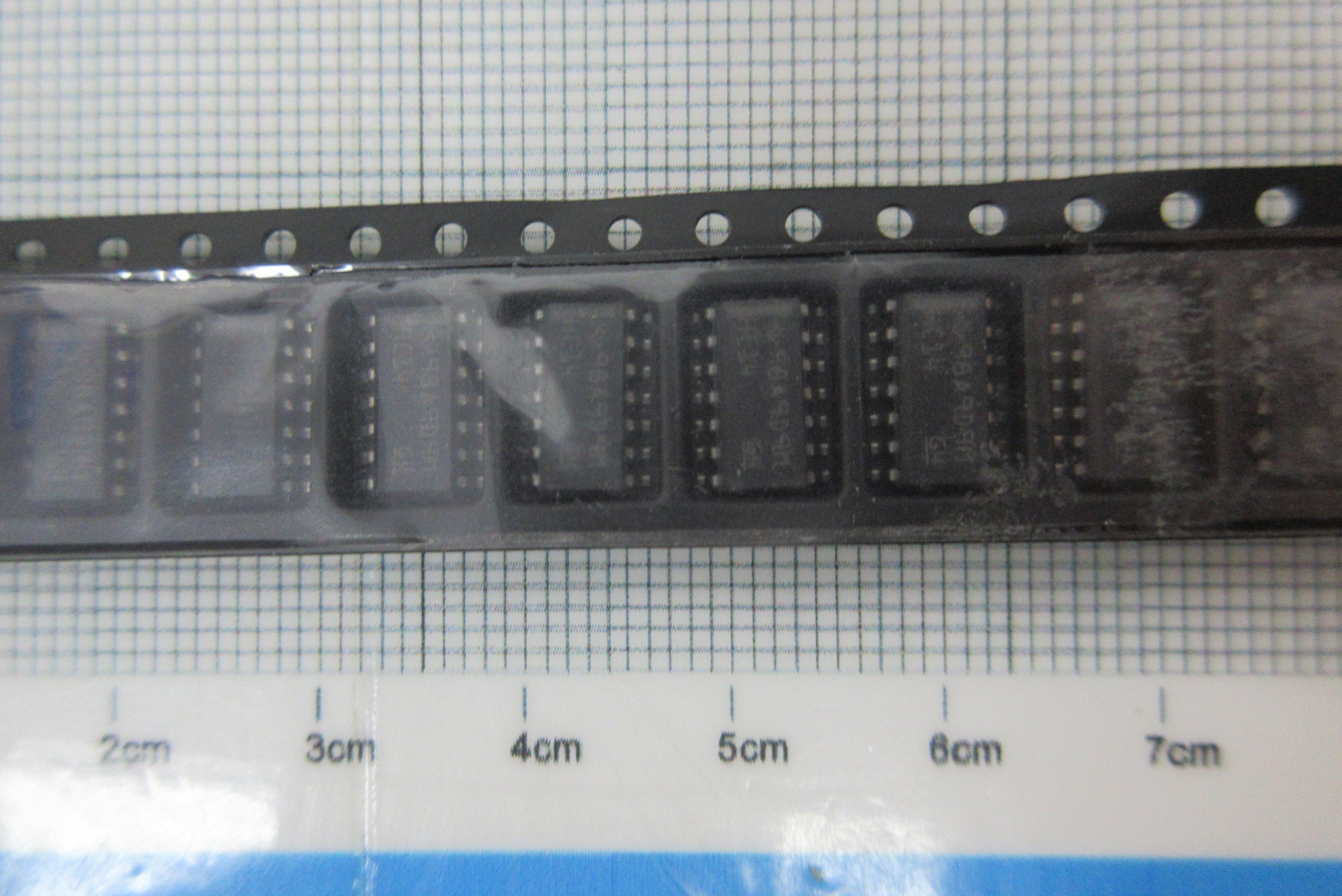

Part No.：SN74HC14DR
Category：Logic
Manufacturer：Texas
Date Code：
Package Type：14SOIC
Quantity：50000
Click：24
Update Time：2022-07-19 14:32:29
Description:
| Manufacturer | Texas | Manufacturer's Part # | SN74HC14DR |
|---|---|---|---|
| Categories | Integrated Circuits (ICs) | Sub-Categories | Logic - Gates and Inverters |
| Series | 74HC | Part Status | Active |
| Logic Type | Inverter | Number of Circuits | 6 |
| Number of Inputs | 6 | Features | Schmitt Trigger |
| Voltage - Supply | 2V ~ 6V | Current - Quiescent (Max) | 2µA |
| Current - Output High, Low | 5.2mA, 5.2mA | Logic Level - Low | 0.3V ~ 1.2V |
| Logic Level - High | 1.5V ~ 4.2V | Max Propagation Delay @ V, Max CL | 21ns @ 6V, 50pF |
| Operating Temperature | -40°C ~ 85°C | Mounting Type | Surface Mount |
| Supplier Device Package | 14-SOIC | Package / Case | 14-SOIC (0.154", 3.90mm Width) |
