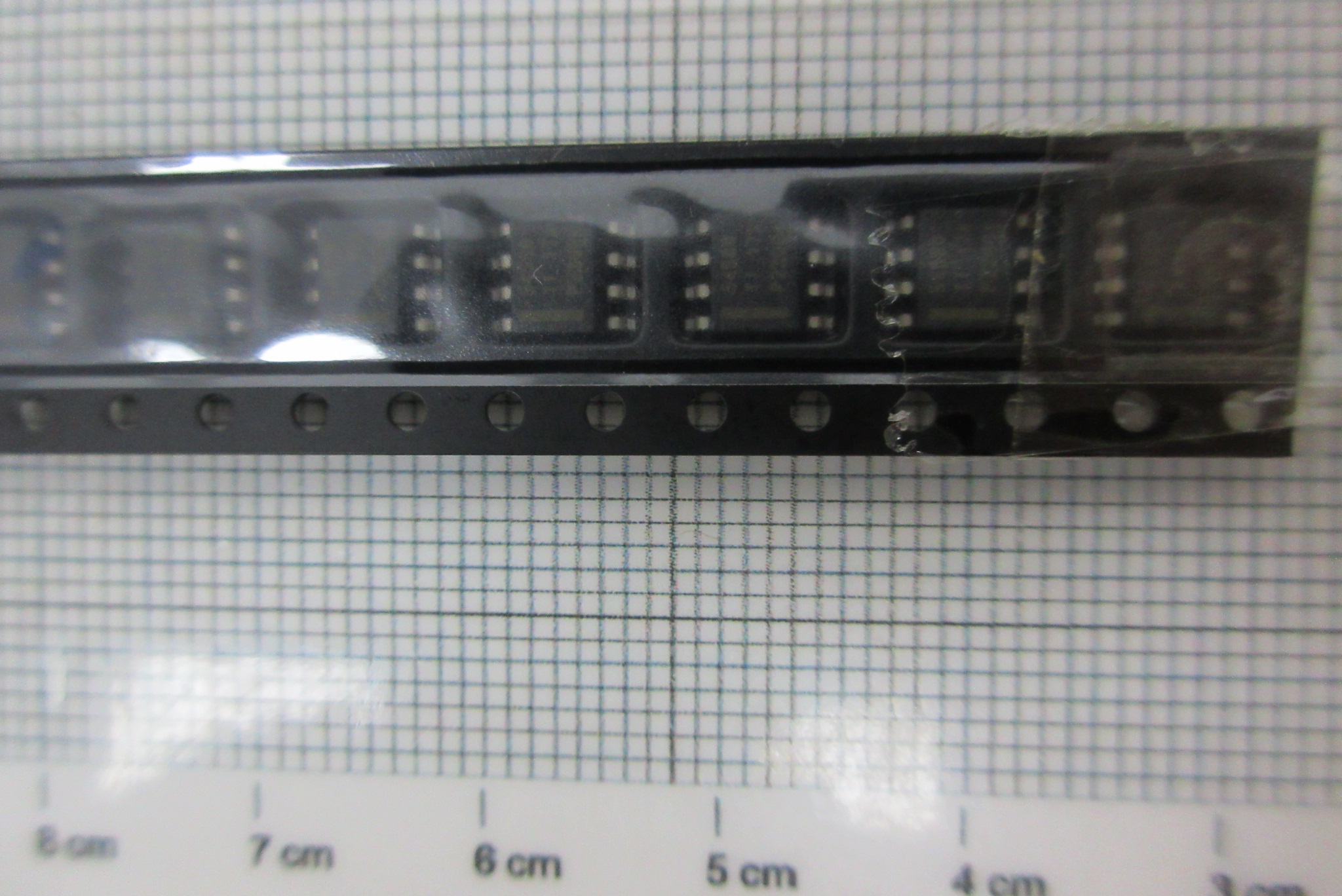

Part No.：TPS54560DDAR
Category：PMIC - Energy Metering
Manufacturer：Texas
Date Code：
Package Type：8-SO PowerPad
Quantity：50000
Click：21
Update Time：2022-07-21 10:18:16
Description:
| Manufacturer | Texas | Manufacturer's Part # | TPS54560DDAR |
|---|---|---|---|
| Categories | Integrated Circuits (ICs) | Sub-Categories | PMIC - Voltage Regulators - DC DC Switching Regulators |
| Series | Eco-Mode™ | Part Status | Active |
| Function | Step-Down | Output Configuration | Positive |
| Topology | Buck, Split Rail | Output Type | Adjustable |
| Number of Outputs | 1 | Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 60V | Voltage - Output (Min/Fixed) | 0.8V |
| Voltage - Output (Max) | 58.8V | Current - Output | 5A |
| Frequency - Switching | 100kHz ~ 2.5MHz | Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 150°C (TJ) | Mounting Type | Surface Mount |
| Package / Case | 8-PowerSOIC (0.154", 3.90mm Width) | Supplier Device Package | 8-SO PowerPad |
