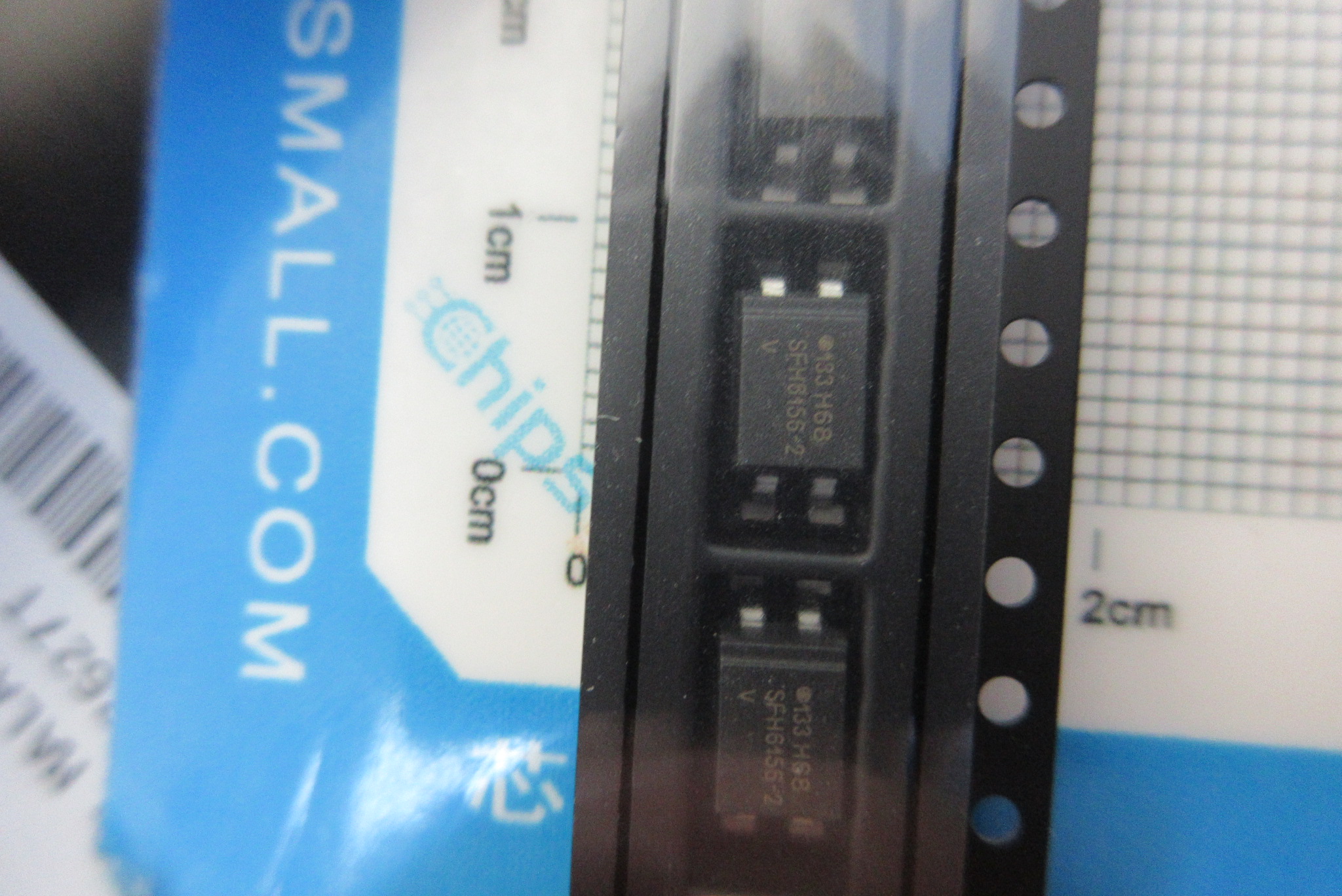

Part No.：SFH6156-2T
Category：Isolator
Manufacturer：Vishay
Date Code：
Package Type：4-SMD
Quantity：50000
Click：13
Update Time：2022-07-23 14:42:41
Description:
| Manufacturer | Vishay | Manufacturer's Part # | SFH6156-2T |
|---|---|---|---|
| Categories | Isolators | Sub-Categories | Optoisolators - Transistor, Photovoltaic Output |
| Series | - | Part Status | Active |
| Number of Channels | 1 | Voltage - Isolation | 5300Vrms |
| Current Transfer Ratio (Min) | 63% @ 10mA | Current Transfer Ratio (Max) | 125% @ 10mA |
| Turn On / Turn Off Time (Typ) | 3µs, 2.3µs | Rise / Fall Time (Typ) | 2µs, 2µs |
| Input Type | DC | Output Type | Transistor |
| Voltage - Output (Max) | 70V | Current - Output / Channel | 50mA |
| Voltage - Forward (Vf) (Typ) | 1.25V | Current - DC Forward (If) (Max) | 60mA |
| Vce Saturation (Max) | 400mV | Operating Temperature | -55°C ~ 100°C |
| Mounting Type | Surface Mount | Package / Case | 4-SMD, Gull Wing |
| Supplier Device Package | 4-SMD |
