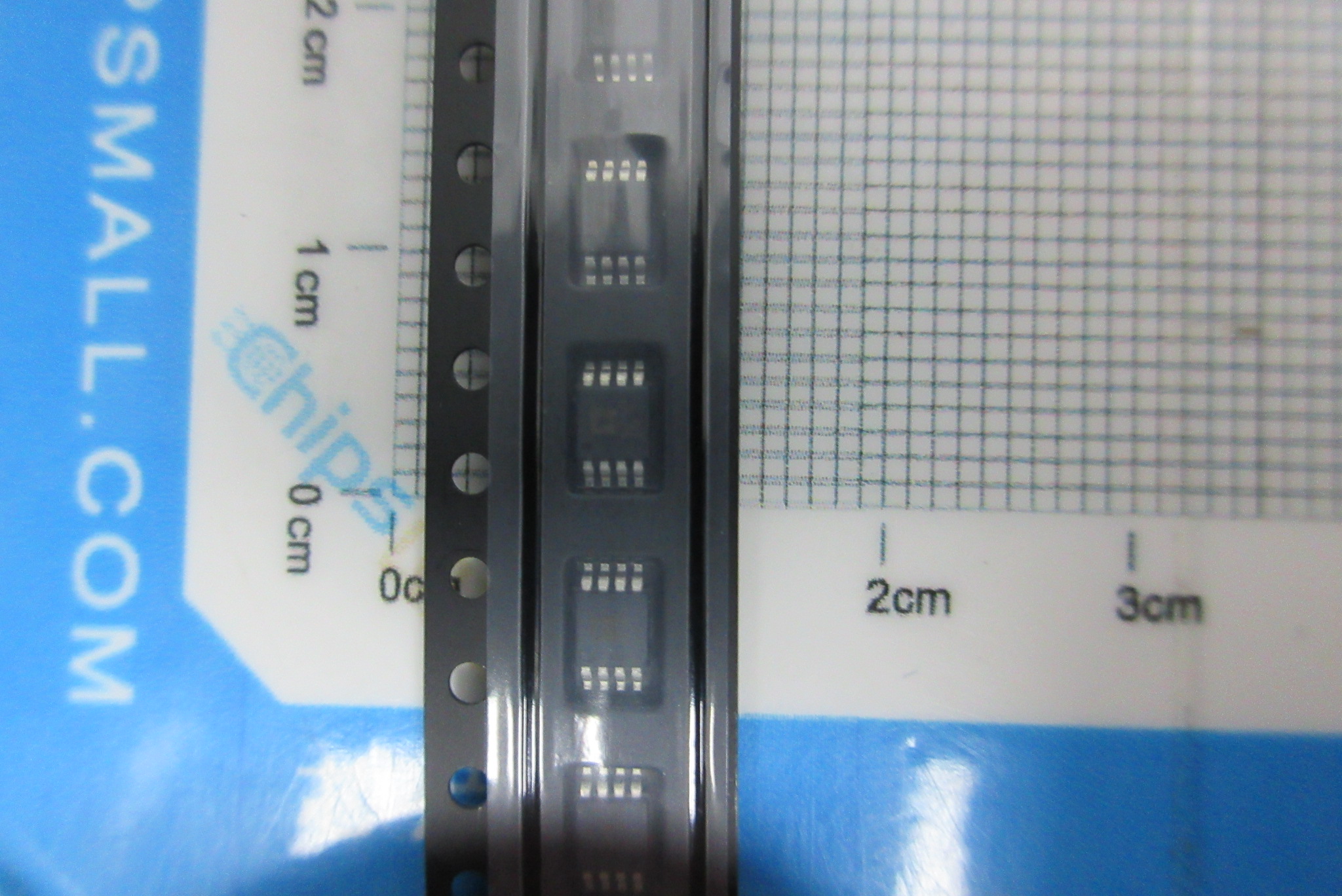

Part No.：ADG701BRMZ-REEL7
Category：Interface
Manufacturer：Analog Devices, Inc
Date Code：
Package Type：8MSOP
Quantity：50000
Click：32
Update Time：2022-07-25 14:42:37
Description:
| Manufacturer | Analog Devices, Inc. | Manufacturer's Part # | ADG701BRMZ-REEL7 |
|---|---|---|---|
| Categories | Integrated Circuits (ICs) | Sub-Categories | Interface - Analog Switches, Multiplexers, Demultiplexers |
| Series | - | Part Status | Active |
| Switch Circuit | SPST - NO | Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 1 | On-State Resistance (Max) | 3 Ohm |
| Channel-to-Channel Matching (ΔRon) | - | Voltage - Supply, Single (V+) | 1.8V ~ 5V |
| Voltage - Supply, Dual (V±) | - | Switch Time (Ton, Toff) (Max) | 12ns, 8ns (Typ) |
| -3db Bandwidth | 200MHz | Charge Injection | 5pC |
| Channel Capacitance (CS(off), CD(off)) | 17pF, 17pF | Current - Leakage (IS(off)) (Max) | 10pA (Typ) |
| Crosstalk | - | Operating Temperature | -40°C ~ 85°C (TA) |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Supplier Device Package | 8-MSOP |
