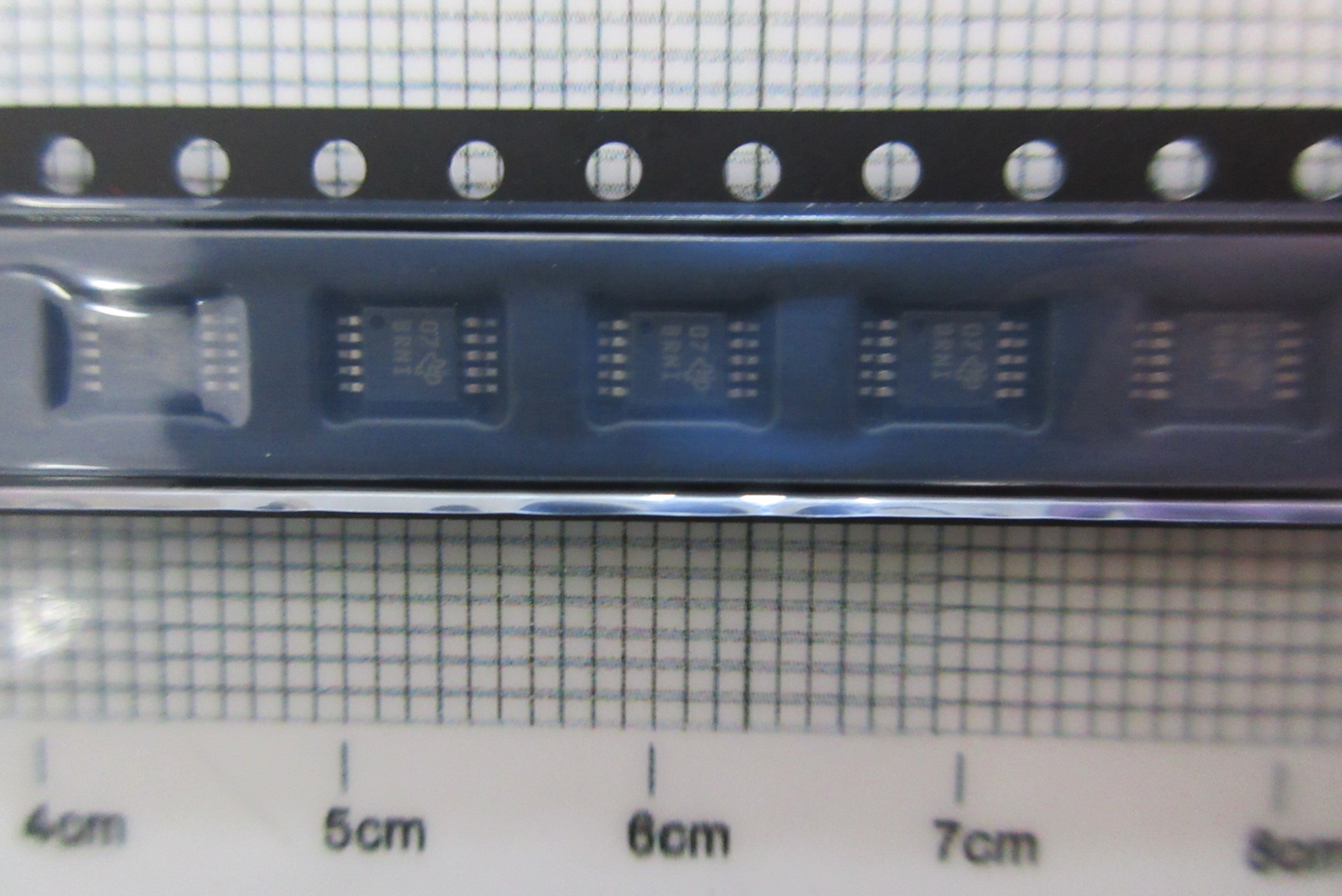

Part No.：ADS1114IDGSR
Category：ADC
Manufacturer：Texas
Date Code：
Package Type：10MSOP
Quantity：50000
Click：15
Update Time：2022-07-25 14:58:13
Description:
| Manufacturer | Texas | Manufacturer's Part # | ADS1114IDGSR |
|---|---|---|---|
| Categories | Integrated Circuits (ICs) | Sub-Categories | Data Acquisition - Analog to Digital Converters (ADC) |
| Series | - | Part Status | Active |
| Number of Bits | 16 | Sampling Rate (Per Second) | 860 |
| Number of Inputs | 1, 2 | Input Type | Differential, Single Ended |
| Data Interface | I²C | Configuration | PGA-ADC |
| Ratio - S/H:ADC | - | Number of A/D Converters | 1 |
| Architecture | Sigma-Delta | Reference Type | Internal |
| Voltage - Supply, Analog | 2V ~ 5.5V | Voltage - Supply, Digital | 2V ~ 5.5V |
| Features | PGA, Selectable Address | Operating Temperature | -40°C ~ 125°C |
| Package / Case | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | Supplier Device Package | 10-VSSOP |
| Mounting Type | Surface Mount |
