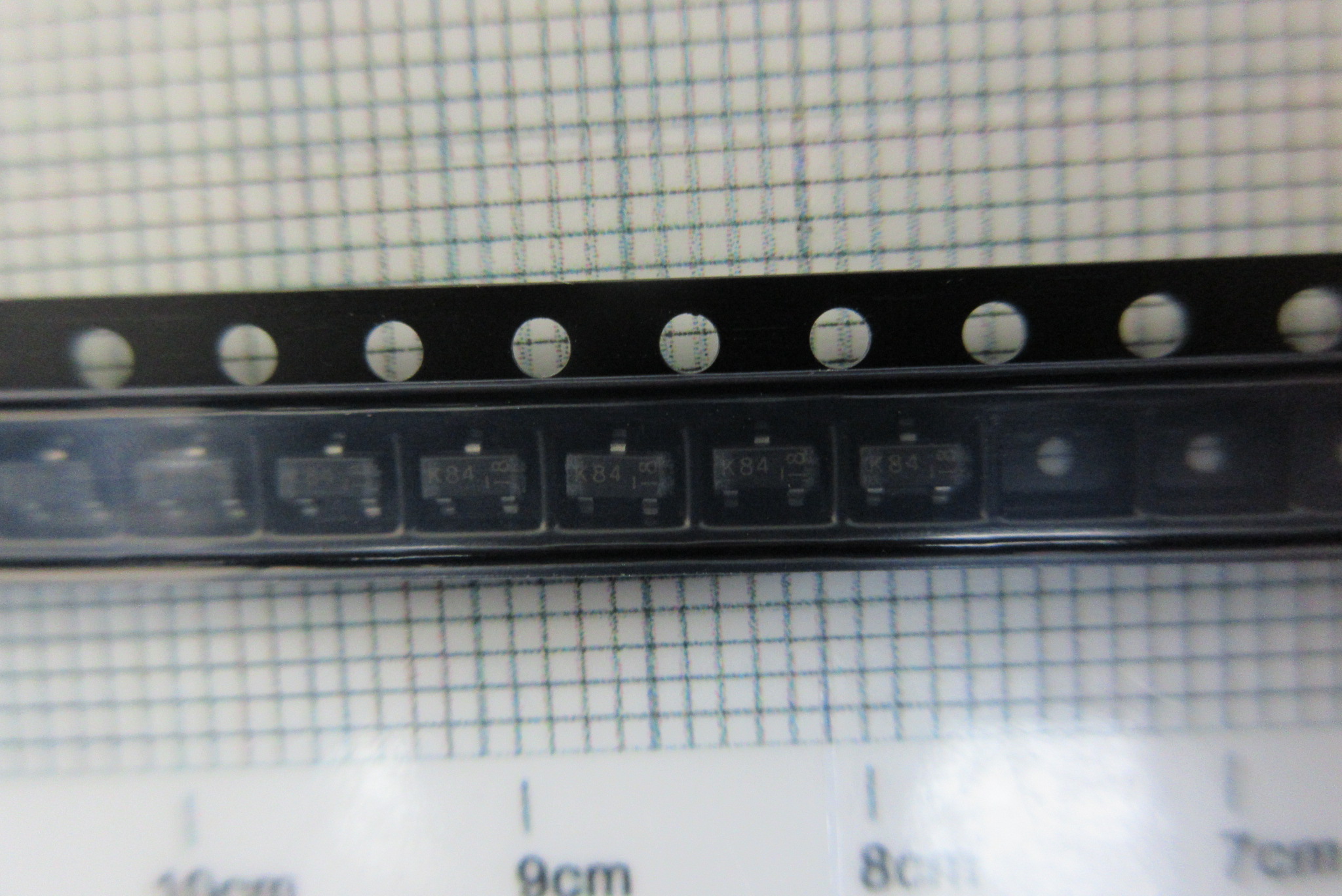

Part No.：BSS84-7-F
Category： FETS
Manufacturer：Diodes Incorporated
Date Code：
Package Type：SOT23-3
Quantity：50000
Click：12
Update Time：2022-07-25 17:53:40
Description:
| Manufacturer | Diodes Incorporated | Manufacturer's Part # | BSS84-7-F |
|---|---|---|---|
| Categories | Discrete Semiconductor Products | Sub-Categories | Transistors - FETs, MOSFETs - Single |
| Series | - | Part Status | Active |
| FET Type | P-Channel | Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 50V | Current - Continuous Drain (Id) @ 25°C | 130mA (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 5V | Rds On (Max) @ Id, Vgs | 10 Ohm @ 100mA, 5V |
| Vgs(th) (Max) @ Id | 2V @ 1mA | Gate Charge (Qg) (Max) @ Vgs | - |
| Vgs (Max) | ±20V | Input Capacitance (Ciss) (Max) @ Vds | 45pF @ 25V |
| FET Feature | - | Power Dissipation (Max) | 300mW (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) | Mounting Type | Surface Mount |
| Supplier Device Package | SOT-23-3 | Package / Case | TO-236-3, SC-59, SOT-23-3 |
