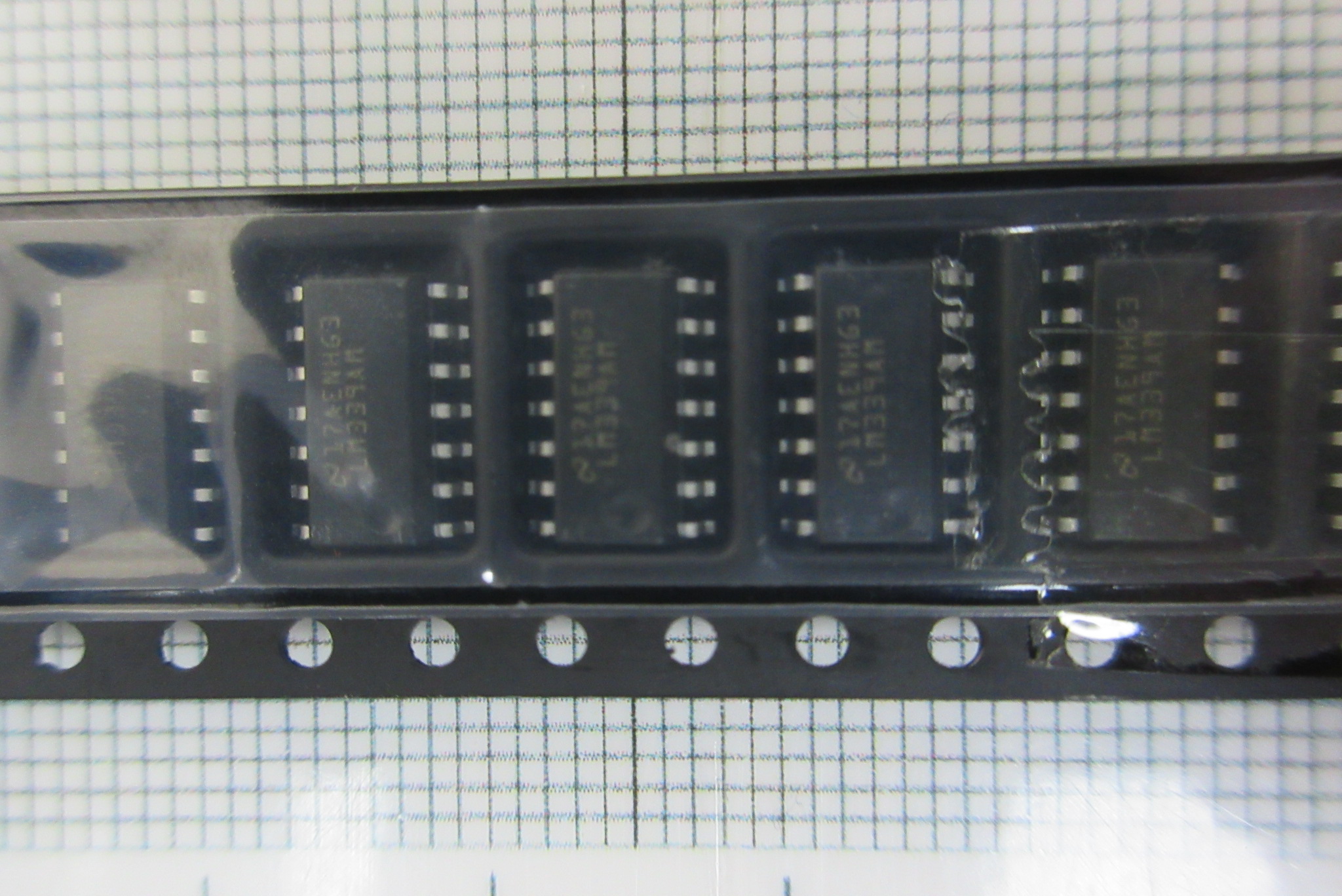

Part No.：LM339AMX
Category：Comparator
Manufacturer：ON Semiconductor
Date Code：
Package Type：14-SOP
Quantity：50000
Click：23
Update Time：2022-07-26 11:34:31
Description:
| Manufacturer | ON Semiconductor | Manufacturer's Part # | LM339AMX |
|---|---|---|---|
| Categories | Integrated Circuits (ICs) | Sub-Categories | Linear - Comparators |
| Series | - | Part Status | Active |
| Type | General Purpose | Number of Elements | 4 |
| Output Type | DTL, MOS, Open-Collector, TTL | Voltage - Supply, Single/Dual (±) | 2V ~ 36V, ±1V ~ 18V |
| Voltage - Input Offset (Max) | 2mV @ 5V | Current - Input Bias (Max) | 0.25µA @ 5V |
| Current - Output (Typ) | 18mA @ 5V | Current - Quiescent (Max) | 2.5mA |
| CMRR, PSRR (Typ) | - | Propagation Delay (Max) | - |
| Hysteresis | - | Operating Temperature | 0°C ~ 70°C |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) | Mounting Type | Surface Mount |
| Supplier Device Package | 14-SOP |
