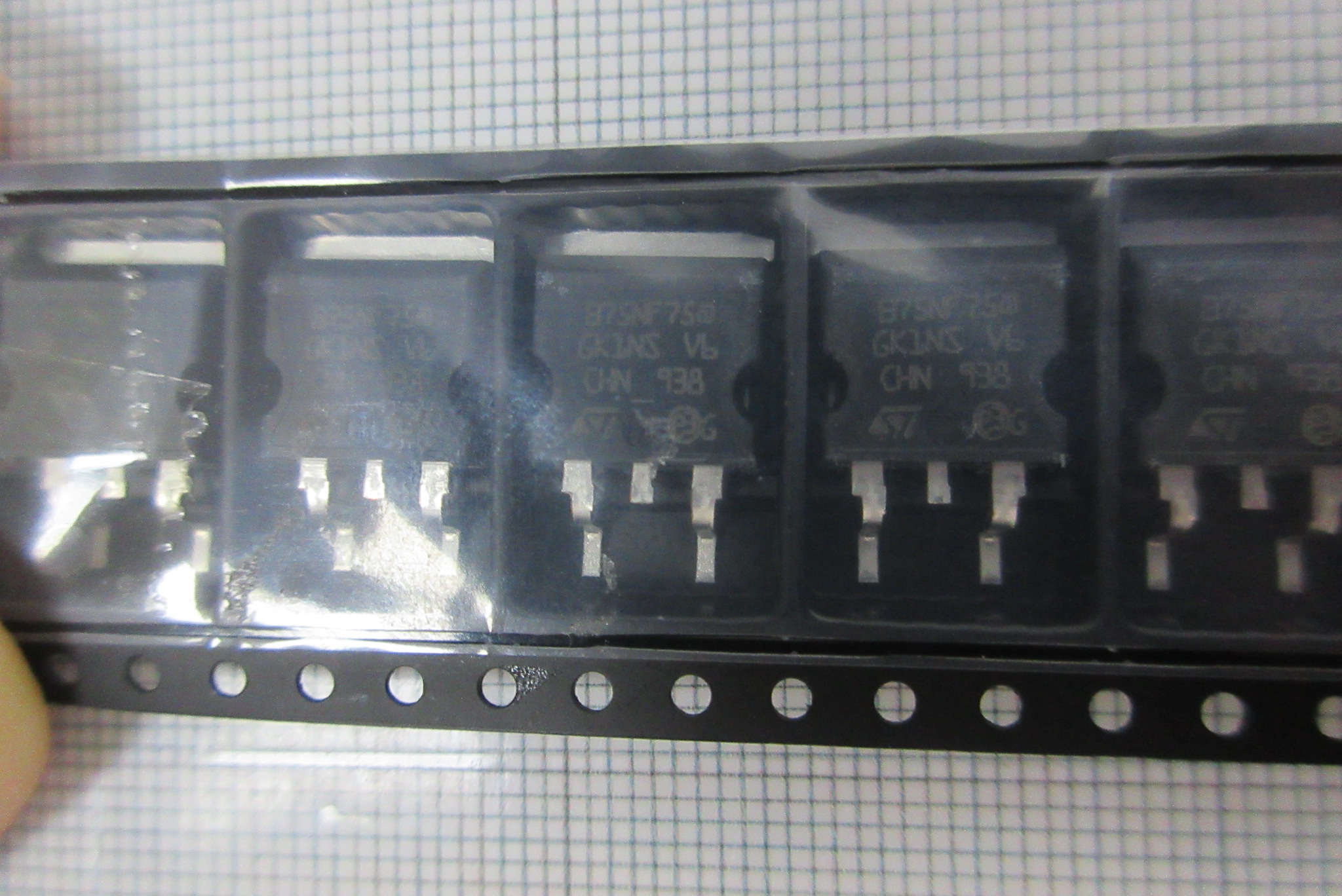

Part No.：STB75NF75T4
Category： FETS
Manufacturer：STMicroelectronics
Date Code：
Package Type：TO-263-3
Quantity：50000
Click：14
Update Time：2022-07-27 15:08:07
Description:
| Manufacturer | STMicroelectronics | Manufacturer's Part # | STB75NF75T4 |
|---|---|---|---|
| Categories | Discrete Semiconductor Products | Sub-Categories | Transistors - FETs, MOSFETs - Single |
| Series | STripFET™ II | Part Status | Active |
| FET Type | N-Channel | Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 75V | Current - Continuous Drain (Id) @ 25°C | 80A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | Rds On (Max) @ Id, Vgs | 11 mOhm @ 40A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA | Gate Charge (Qg) (Max) @ Vgs | 160nC @ 10V |
| Vgs (Max) | ±20V | Input Capacitance (Ciss) (Max) @ Vds | 3700pF @ 25V |
| FET Feature | - | Power Dissipation (Max) | 300W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | Mounting Type | Surface Mount |
| Supplier Device Package | D2PAK | Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
