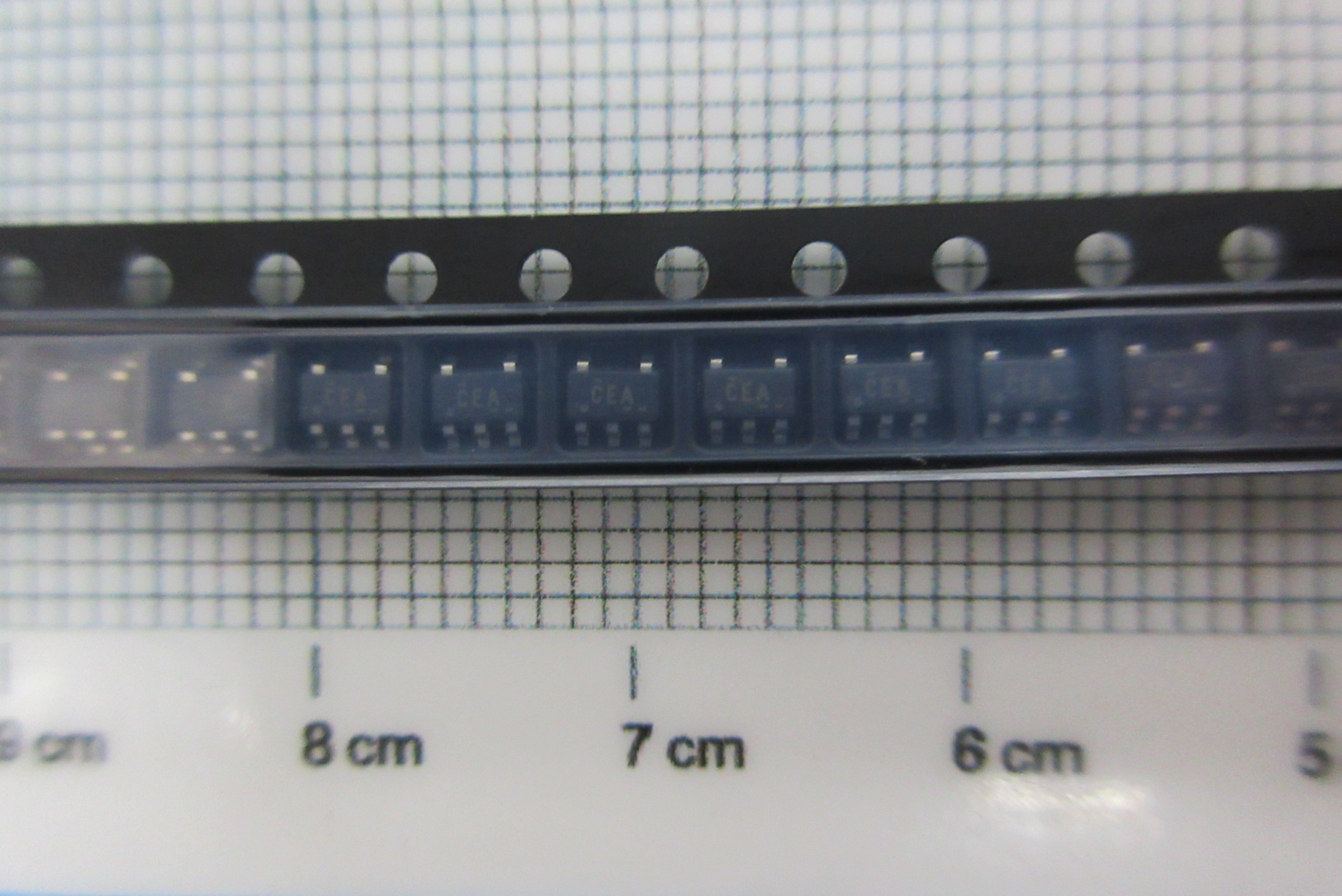

Part No.：TPS78001DDCR
Category：PMIC - Energy Metering
Manufacturer：Texas
Date Code：
Package Type：SOT23-5
Quantity：50000
Click：12
Update Time：2022-07-28 10:32:46
Description:
| Manufacturer | Texas | Manufacturer's Part # | TPS78001DDCR |
|---|---|---|---|
| Categories | Integrated Circuits (ICs) | Sub-Categories | PMIC - Voltage Regulators - Linear |
| Series | - | Part Status | Active |
| Output Configuration | Positive | Output Type | Adjustable |
| Number of Regulators | 1 | Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 1.22V | Voltage - Output (Max) | 5.25V |
| Voltage Dropout (Max) | - | Current - Output | 150mA |
| Current - Quiescent (Iq) | 800nA | Current - Supply (Max) | 5µA |
| PSRR | 40dB ~ 15dB (10Hz ~ 1kHz) | Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Reverse Polarity | Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Package / Case | SOT-23-5 Thin, TSOT-23-5 |
| Supplier Device Package | SOT-23-5 |
