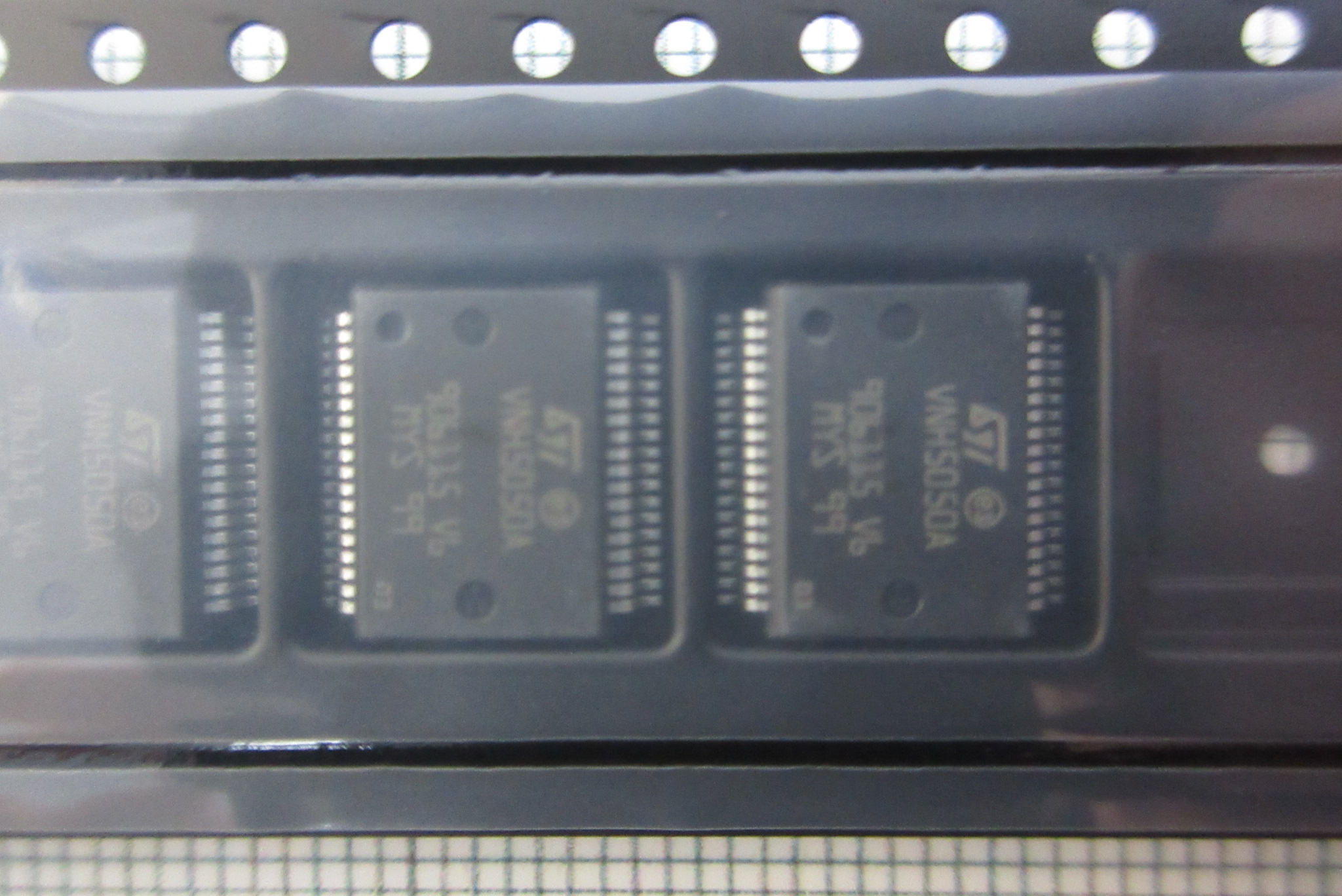

Part No.：VNH5050ATR-E
Category：PMIC - Energy Metering
Manufacturer：STMicroelectronics
Date Code：
Package Type：PowerSSO-36
Quantity：50000
Click：17
Update Time：2022-07-28 10:44:10
Description:
| Manufacturer | STMicroelectronics | Manufacturer's Part # | VNH5050ATR-E |
|---|---|---|---|
| Categories | Integrated Circuits (ICs) | Sub-Categories | PMIC - Motor Drivers, Controllers |
| Series | ECOPACK®, VIPower™ | Part Status | Active |
| Motor Type - Stepper | - | Motor Type - AC, DC | Brushed DC |
| Function | Driver - Fully Integrated, Control and Power Stage | Output Configuration | Half Bridge (2) |
| Interface | Parallel, PWM | Technology | Power MOSFET |
| Step Resolution | - | Applications | Automotive |
| Current - Output | 30A | Voltage - Supply | 5.5V ~ 18V |
| Voltage - Load | 5.5V ~ 18V | Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Package / Case | 36-BFSOP (0.295", 7.50mm Width) Exposed Pad |
| Supplier Device Package | PowerSSO-36 |
