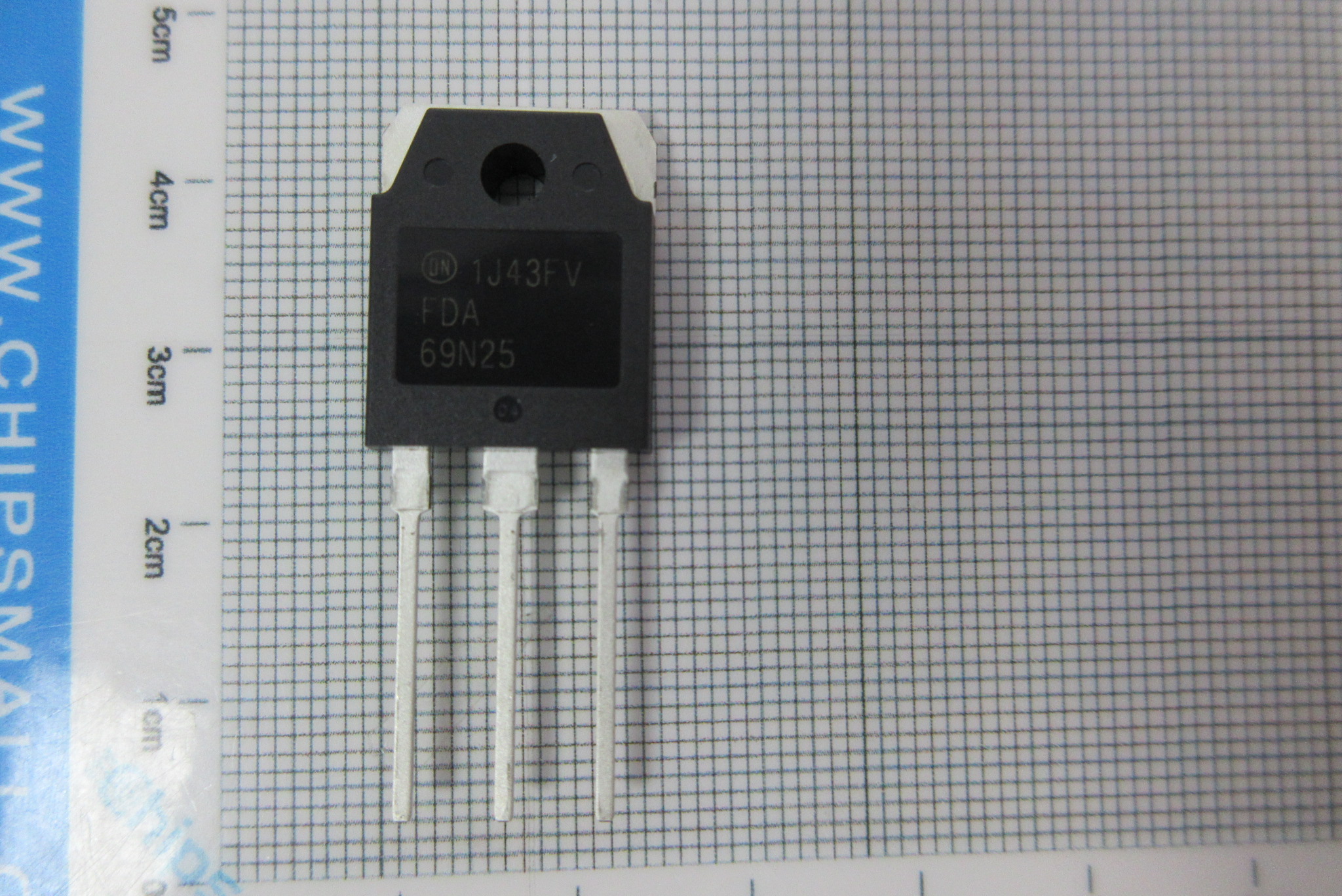

Part No.：FDA69N25
Category： FETS
Manufacturer：ON Semiconductor
Date Code：
Package Type：TO-3PN
Quantity：50000
Click：12
Update Time：2022-07-28 16:12:55
Description:
| Manufacturer | ON Semiconductor | Manufacturer's Part # | FDA69N25 |
|---|---|---|---|
| Categories | Discrete Semiconductor Products | Sub-Categories | Transistors - FETs, MOSFETs - Single |
| Series | UniFET™ | Part Status | Active |
| FET Type | N-Channel | Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 250V | Current - Continuous Drain (Id) @ 25°C | 69A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | Rds On (Max) @ Id, Vgs | 41 mOhm @ 34.5A, 10V |
| Vgs(th) (Max) @ Id | 5V @ 250µA | Gate Charge (Qg) (Max) @ Vgs | 100nC @ 10V |
| Vgs (Max) | ±30V | Input Capacitance (Ciss) (Max) @ Vds | 4640pF @ 25V |
| FET Feature | - | Power Dissipation (Max) | 480W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | Mounting Type | Through Hole |
| Supplier Device Package | TO-3PN | Package / Case | TO-3P-3, SC-65-3 |
