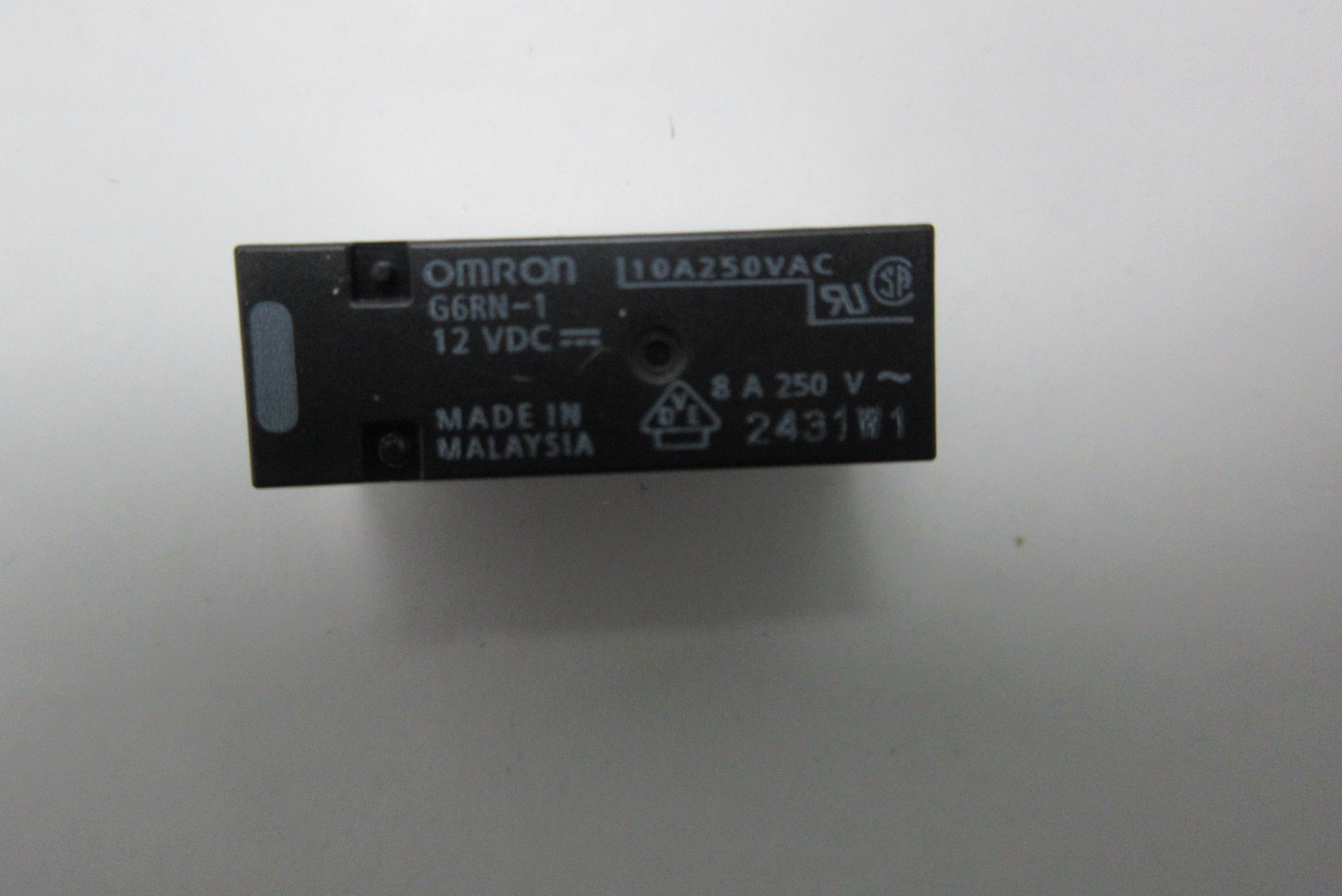

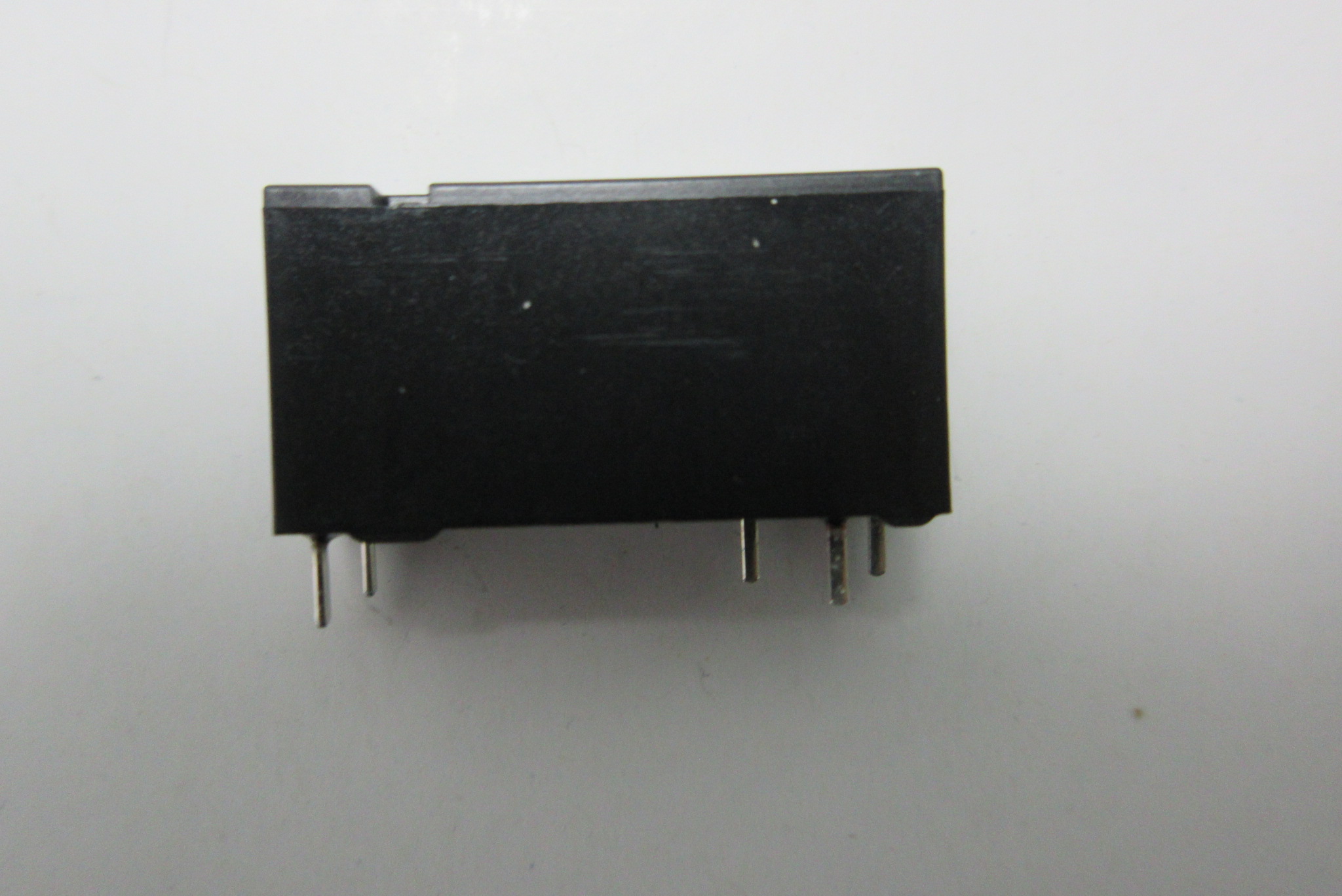

Part No.：G6RN-1 DC12
Category：Relays
Manufacturer：Omron
Date Code：
Package Type：-
Quantity：50000
Click：33
Update Time：2022-07-28 17:08:32
Description:
| Manufacturer | Omron | Manufacturer's Part # | G6RN-1 DC12 |
|---|---|---|---|
| Categories | Relays | Sub-Categories | Power Relays, Over 2 Amps |
| Series | G6RN | Part Status | Active |
| Mounting Type | Through Hole | Coil Voltage | 12VDC |
| Contact Form | SPDT (1 Form C) | Contact Rating (Current) | 8A |
| Switching Voltage | 250VAC, 30VDC - Max | Coil Current | 18.3mA |
| Coil Type | Non Latching | Features | Sealed - Fully |
| Termination Style | PC Pin | Must Operate Voltage | 8.4 VDC |
| Must Release Voltage | 1.2 VDC | Operate Time | 15ms |
| Release Time | 5ms | Operating Temperature | -40°C ~ 85°C |
| Contact Material | Silver Alloy | Relay Type | General Purpose |
