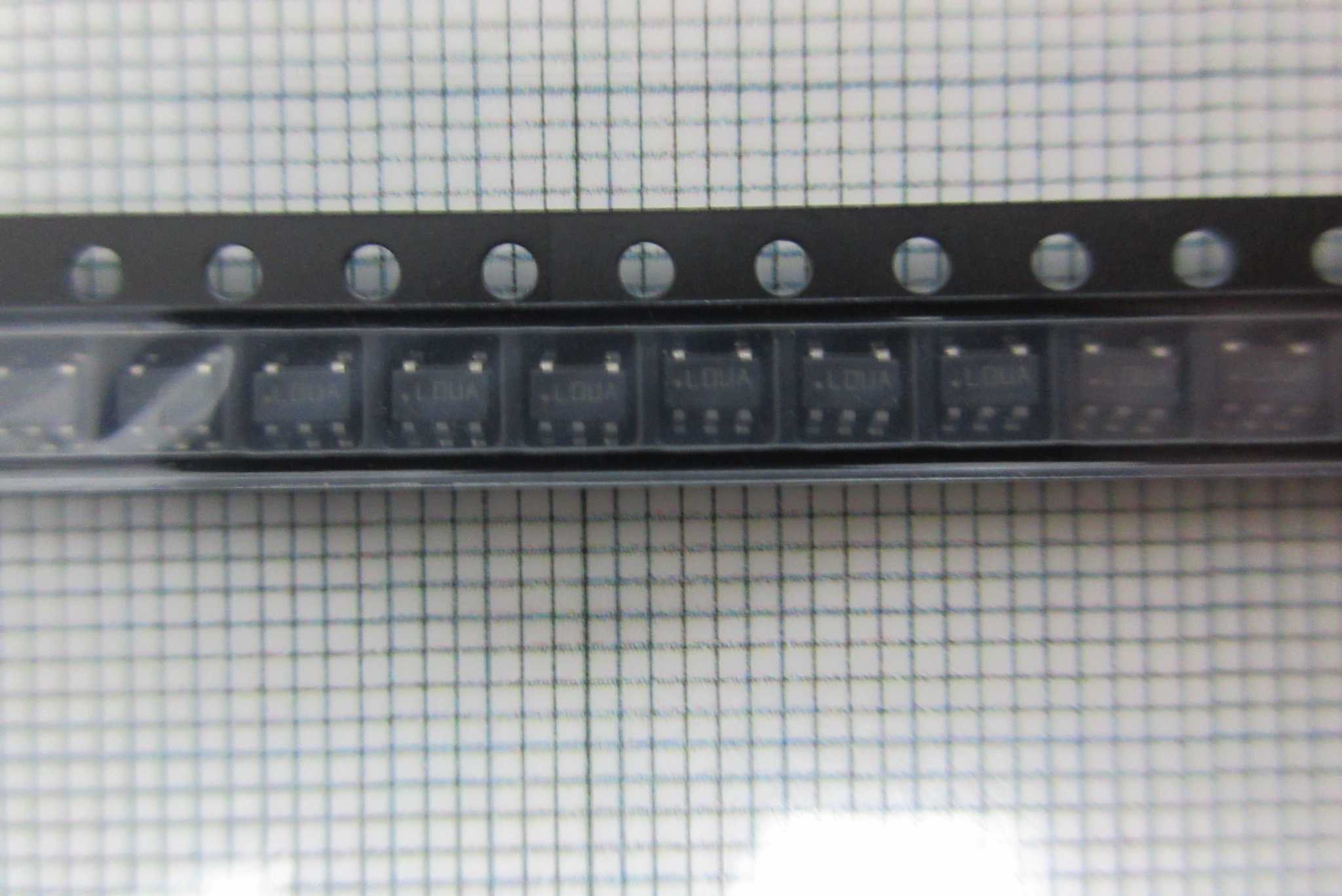

Part No.：LP2985AIM5-5.0
Category：PMIC - Energy Metering
Manufacturer：Texas
Date Code：
Package Type：SOT23-5
Quantity：50000
Click：21
Update Time：2022-07-29 13:48:28
Description:
| Manufacturer | Texas | Manufacturer's Part # | LP2985AIM5-5.0 |
|---|---|---|---|
| Categories | Integrated Circuits (ICs) | Sub-Categories | PMIC - Voltage Regulators - Linear |
| Series | - | Part Status | Not For New Designs |
| Output Configuration | Positive | Output Type | Fixed |
| Number of Regulators | 1 | Voltage - Input (Max) | 16V |
| Voltage - Output (Min/Fixed) | 5V | Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.58V @ 150mA | Current - Output | 150mA |
| Current - Quiescent (Iq) | 95µA | Current - Supply (Max) | 2.5mA |
| PSRR | 45dB (1kHz) | Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Short Circuit | Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SOT-23-5 |
