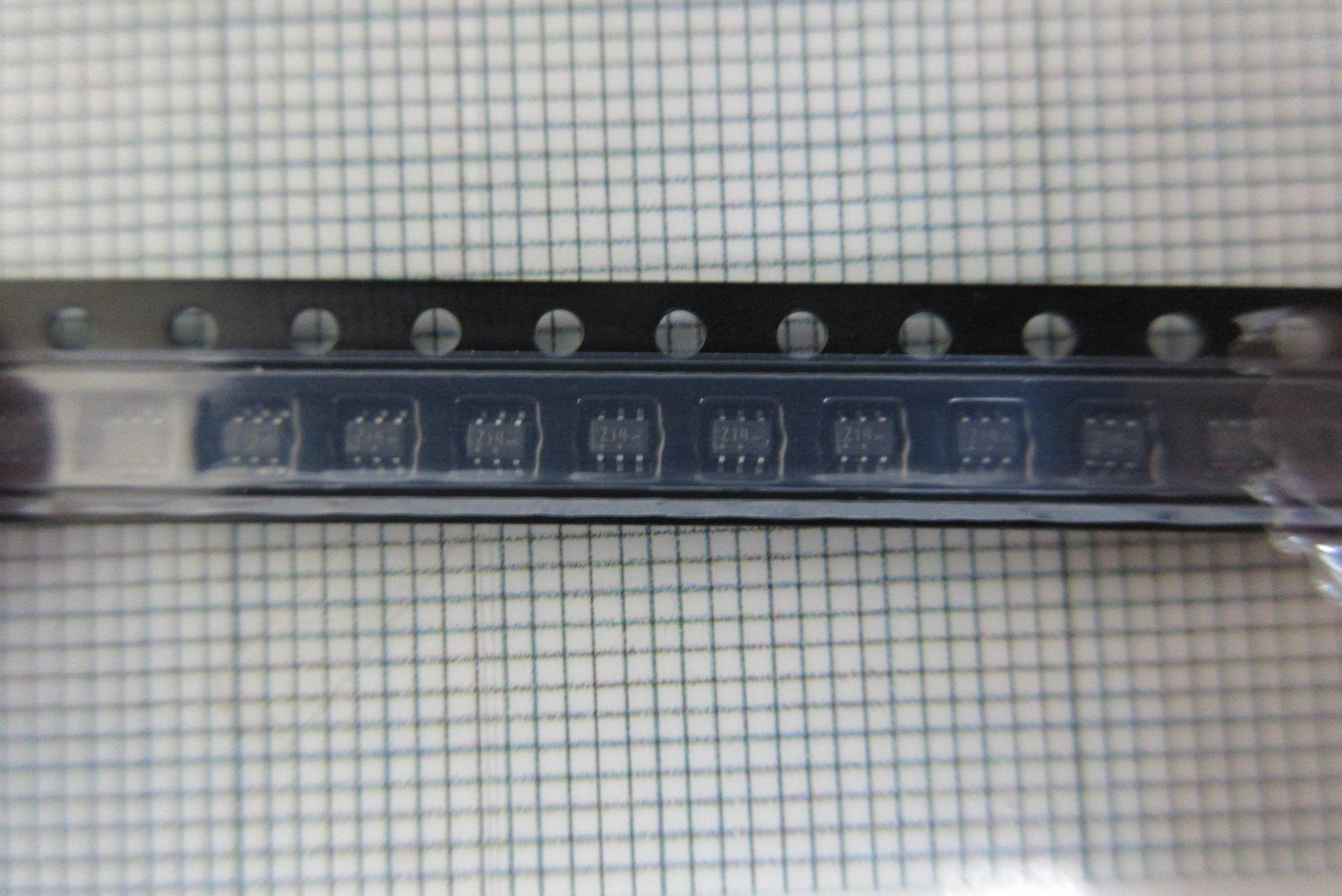

Part No.：NC7WZ14P6X
Category：Logic
Manufacturer：ON Semiconductor
Date Code：
Package Type：SC70-6
Quantity：50000
Click：12
Update Time：2022-07-29 18:07:57
Description:
| Manufacturer | ON Semiconductor | Manufacturer's Part # | NC7WZ14P6X |
|---|---|---|---|
| Categories | Integrated Circuits (ICs) | Sub-Categories | Logic - Gates and Inverters |
| Series | 7WZ | Part Status | Active |
| Logic Type | Inverter | Number of Circuits | 2 |
| Number of Inputs | 2 | Features | Schmitt Trigger |
| Voltage - Supply | 1.65V ~ 5.5V | Current - Quiescent (Max) | 1µA |
| Current - Output High, Low | 32mA, 32mA | Logic Level - Low | 0.2V ~ 1.2V |
| Logic Level - High | 1.4V ~ 3.6V | Max Propagation Delay @ V, Max CL | 4.9ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 85°C | Mounting Type | Surface Mount |
| Supplier Device Package | SC-88 (SC-70-6) | Package / Case | 6-TSSOP, SC-88, SOT-363 |
