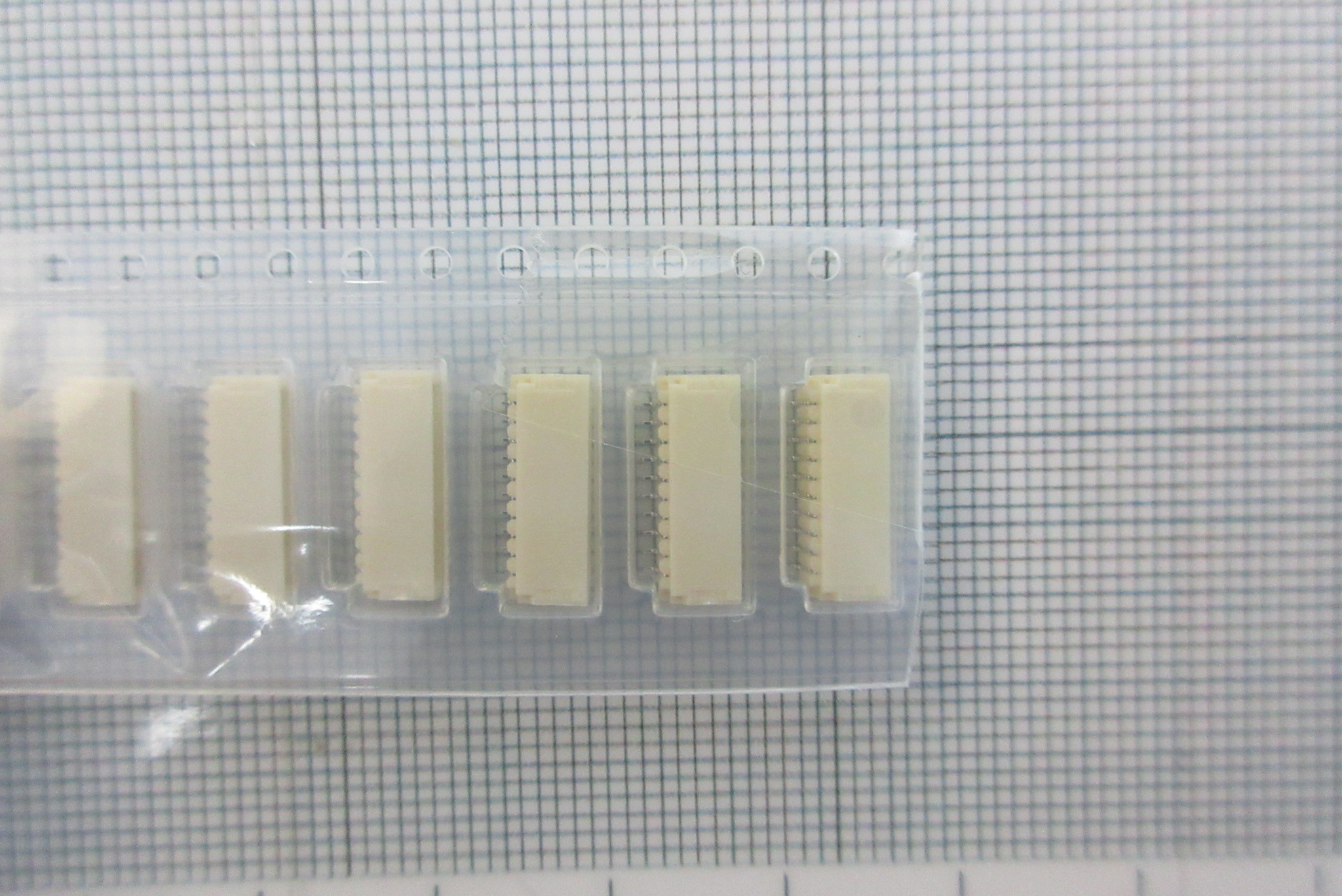

Part No.：SM10B-SRSS-TB(LF)(SN)
Category：Rectangular Connectors - Housings
Manufacturer：JST
Date Code：
Package Type：SMD
Quantity：50000
Click：29
Update Time：2022-08-01 11:59:01
Description:
| Manufacturer | JST | Manufacturer's Part # | SM10B-SRSS-TB(LF)(SN) |
|---|---|---|---|
| Categories | Connectors, Interconnects | Sub-Categories | Rectangular Connectors - Headers, Male Pins |
| Series | SR | Part Status | Active |
| Connector Type | Header | Contact Type | Male Pin |
| Pitch - Mating | 0.039" (1.00mm) | Number of Positions | 10 |
| Number of Rows | 1 | Row Spacing - Mating | - |
| Number of Positions Loaded | All | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Mounting Type | Surface Mount, Right Angle |
| Termination | Solder | Fastening Type | Push-Pull |
| Contact Length - Mating | - | Contact Length - Post | - |
| Overall Contact Length | - | Insulation Height | 0.114" (2.90mm) |
| Contact Shape | Square | Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Material | Copper Alloy | Insulation Material | Polyamide (PA), Nylon |
| Features | Solder Retention | Operating Temperature | -25°C ~ 85°C |
| Ingress Protection | - | Material Flammability Rating | UL94 V-0 |
| Insulation Color | Natural | Current Rating | 0.7A |
| Voltage Rating | 50V |
